Canton Fair Hot Sale High Precision Handheld 500W 1000W 1500W 2000W Fiber Laser Welding Machine for Alloy Aluminum Copper Galvanized Steel Metal Material

Product Description

HW Series Handheld Laser Welding Machine
Product Description
HW series hand-held laser welding machine is a new generation of laser welding products, with integrated design, beautiful appearance and stable per formance, easy instal lation and simple operation, high safety performance. It has the characteristics of fast welding speed, high efficiency, good welding effect, less welding consumables, long service life and environmental friendly. It can be widely used in kitchen appliances, door and window guardrails, stair lifts, stainless steel furniture, metal sheet metal, billboards, craft gifts, Welding in auto repair, automobile manufacturing, rail transportation and aerospace industries.

1.Overview
As optical communication era is coming, components production of optical communication change from lab or small scale production style to mass production style, original cost reduces also. Laser processing technology plays a important role during this period. So far, laser welding, laser dicing, percing and engraving technology are very mature, especially for laser welding technology.
The pricinple of laser welding is using high power laser to melt surface material and make them weld together. It is non-contact welding, no outer force which will cause stress and deformation. Welding time is in millisecond, heating effect area is only within beam focusing area, with high processing efficiency and suitable for mass production.

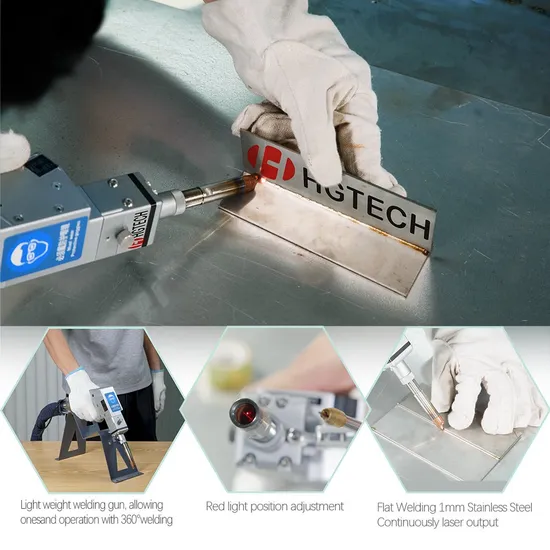

2.Handed laser welding head
Welding head is widely used in stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home and other industries complex irregular welding process;
Multiple spot modes can be switched freely
Built-in dual-axis high-speed servo motor
Digital display screen design, real-time control of welding data
Circulating water circuit design, rapid cooling of the gun body
The overall structure of the welding gun accords with ergonomic design
Imported high-end chips, multiple safety protection measures
All ports on the motherboard can resist 20W volt static
Product advantage
the Laser welding is to irradiate a high energy density laser beam on two parts of the material, melt the material and then cooling and solidification into one. Compared with traditional welding technology, the Auto wire feeding hand held laser welding has the following advantages:
1. The weld seam is smoothe and beautiful, it doesnot need to be polished or the workboard of the polish is very small.
2. Through control the laser energy, the welding will not defrom or very few deformation.
3. Handheld laser welding machine is easy to handle and needn't to require the professional welders.
4. The wobble welding machine can handle the hard welding material easily, such as aluminum, brass.
5. Long life span up to 100,000 hours and low comsumption.
6. the Auto wire feeding handheld welding machine can weld parts with wider gap.
7. With a 8-15m fiber line, It can weld long-distance and large- area parts.
8. Various welding processes, such as spot welding, seam welding and overlap welding.
9. The welding efficiency is around 5 times of TIG welding.
10. It is welding used in electronics, sheet metal, air condiction industry etc.
Product Parameters

Model	HW-500	HW-1000	HW-1500	HW-2000
Maximum laser power	500	1000	1500	2000
Laser frequency	50-5000HZ	50-5000HZ	50-5000HZ	50-5000HZ
Power adjustment range	10-100%	10-100%	10-100%	10-100%
Power instability	<3%	<3%	<3%	<3%
Welding penetration (stainless steel)	1.2mm	2.0mm	2.5mm	3.0mm
Welding penetration (carbon steel)	0.8mm	1.5mm	2.5mm	3.0mm
Welding penetration (aluminum steel)	1mm	2mm	3mm	4mm
Swing welding spot	Solder spot 2-4mm	Solder spot 2-4mm	Solder spot 2-4mm	Solder spot 2-4mm
Input voltage	220V/50HZ	220V/50HZ	380V/50HZ	380V/50HZ
Total power	≤3KW	≤3KW	≤3KW	≤3KW
Automatic wire feeding	Optional	Optional	Optional	Optional

Application

Sample
Applicable to welding carbon steel, stainless steel, aluminum, brass , alloy metals, etc.
After-Sale Service 1). Guarantee for the whole machine: 36 months
2). Providing professional service to customers, any call for technical help will be solved in 24 hours
3). Free training, free maintenance and free technical support within warranty period
4). We supply life-long free service in technical upgrading.
Packaging and shipping
Company Profile
About Us
Wuhan Huagong Laser Engineering Co.,Ltd is one of the largest laser equipment manufacturers in China. HGLASER is the main subsidiary company of Huagongtech Co., Ltd. (Stock code: 000988) HGLASER is a national key high-tech enterprise, possessing technology centers and provincial key laboratories. Relying on the National Engineering Research Center for Laser Processing, National Key Laboratory for Laser Technology and Exhibition Center for Laser Technology Processing, HGLASER undertakes national key projects and scientific research projects.
FAQ
Q: What's the package?
A: We have 3 layers package. For the outside, we adopt wood craft case. In the middle, the machine is covered by foam, to protect the machine from shaking. For the inside layer, the machine is covered by thickening plastic bag for waterproof.
Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation. We have exported to 180 countries worldwide. So please don't worry, you will receive the parcel in good condition.
Q: How to install and run the machine?
A: Our technician have installed the machine before shipping. For some small parts installation, we will send detail training video, user's manual along with the machine. 95% customers can learn by themselves.
Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us asap and do not try fix the machine by yourself or someone else. We will response within 24 hours as quick as we can to solve it for you.
Please advise us the following information, then we can recommend you the most suitable model, right now, don't hesitate to contact -China HGLaser!
Need more information please feel free to contact us-HGLaser!---Right Now!!
