High Speed Hot and Cold Water Pipe Production Extrusion Line, Plastic PVC/HDPE/PPR/CPVC/PE Agricultural /Conduit Pipe/Water Supply Tube/Garden Hose Extruderline

Product Description

High Speed Hot and Cold Water Pipe Production Extrusion Line, Plastic PVC/HDPE/PPR/CPVC/PE Agricultural /Conduit Pipe/Water Supply Tube/Garden Hose Extruder Machine
Product Description
Short desciption
Zhangjiagang Langbo Machinery offers complete production line for PVC/UPVC pipe ranging from 16mm to 800mm. This production line can be used for making pipes with different diameters and wall thickness in the aspects such as the electrical conduit, agricultural and constructional plumbing.
Application
The final produced UPVC pipe is used for the electrical conduit pipe, water supply pipe, sewage pipe, house decoration, chemical transportation, gas distribution line and so on. It has widely used in the industrial and daily life. The pvc pipe has the features of high strength and rigidity, structural integrity, excceleent chemical resistance,durability,thermal stability,non-toxic and safe,low maintenance and cost-effective.

Producting process
PVC powder + additive - mixing-material feeder-twin screw extruder-mould and calibrator-vacuum and cooling tank-spraying cooling machine-haul-off machine-cutting machine-discharge rack or pipe belling machine.

Product Parameters
Specifications:

MODEL	PIPE DIAMETER (MM)	EXTRUDER MODEL	MOTOR POWER (KW)
LB-32F	16-32 (FOUR PIPE)	SJSZ65/132	37 AC
LB-32E	16-32 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-32W	16-32 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-40E	16-40 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-40W	16-40 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-50E	16-50 (DOUBLE PIPE)	SJSZ51/105	22 AC
LB-50W	16-50 (DOUBLE PIPE)	SJSZ65/132	37 AC
LB-63W	16-63 (DOUBLE PIPE)	SJSZ65/132	37 AC

Product detail
Mixer
With specific design of mixer, the self-friction of raw materials is reduced. It is conducive to the efficiency of energy utilization. The Vacuum suction load with low noise and no-dust working situation.

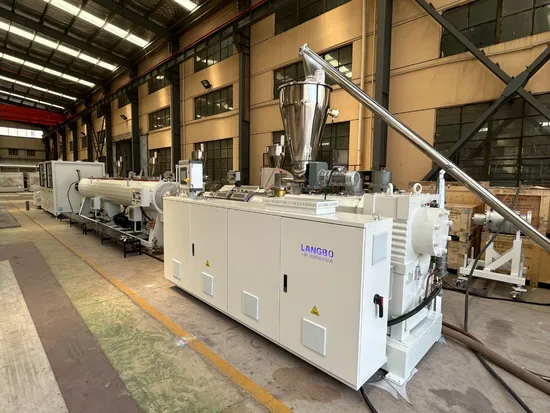

Twin screw extruder machine
The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Our conical twin screw extruder design cater to the raw materials feature ensuring homogeneous mixture, better plastification and conveying efficiency.

Vacuum Calibration & Cooling
The vacuum calibration tank adopt two chamber structure: the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes.

Haul-off Unit
The three caterpillar on the haul-off machine ensures produced pipe running stably and steady. The haul-off units can make tailored hauling model based on certain production requirement by adjusting the general control.

Cutting Unit
The high accuracy encoder ensures a precise and stable cutting length. With PLC control system, it can be cut by manual operation according to the specific application.

Technical Features:
1. The plastic pulverizer can easy to grind all kinds of Hard & Soft PVC into powder.
2. The dust collector is added to effectively reduce dust pollution.
3. The discharging of the main fan reduces the labor intensity of operating workers.
4. The door cover of the host can be opened for the convenience of maintenance and replacement of cutters.
5. The mill uses the water and wind double cooling system, Prevent bearing, and other parts from overheating.
6. The powder mesh is adjustable(15-100mesh).
7. Easy installation and maintenance, just open the door to clean up.
8. Using Well-known brand accessories, such as Siemens motors, can work for a long time, saving the trouble of changing accessories frequently.
9. With a wide range of optional accessories, professional solutions can be developed based on the customer's budget and processing requirements.

After Sales Service
Delivery information:
1. Delivery: 30 days after ur order
2. Warrenty: 12 months
3. Payment: T/T 30% in advance, T/T 70% before delivery.
4. Packing: Standard export wooden case
Our Service
1. One year guarantee for whole machine.
2. 24 hours technical support.
3. Our engineers can provide installation & commission service overseas.
4. After a year, we can instruct you how to maintain the machine, and spare parts are provided with the best price.
5. We also can provide training service which help operators handle the machine well.
Detailed Photos
Product detail
Mixer
With specific design of mixer, the self-friction of raw materials is reduced. It is conducive to the efficiency of energy utilization. The Vacuum suction load with low noise and no-dust working situation.
Twin screw extruder machine
The extruder are crafted with top brand components to ensure production stability, efficiency and machine durability. Our conical twin screw extruder design cater to the raw materials feature ensuring homogeneous mixture, better plastification and conveying efficiency.
Vacuum Calibration & Cooling
The vacuum calibration tank adopt two chamber structure: the vacuum calibration and cooling parts. Both of vacuum tank and spraying cooling tank adopt stainless 304 steel. The excellent vacuum system ensures precise sizing for pipes.
Haul-off Unit
The three caterpillar on the haul-off machine ensures produced pipe running stably and steady. The haul-off units can make tailored hauling model based on certain production requirement by adjusting the general control.
Cutting Unit
The high accuracy encoder ensures a precise and stable cutting length. With PLC control system, it can be cut by manual operation according to the specific application.
Company Profile
Our factory

Our production
Our Exhibition

Certifications
Packaging & Shipping

FAQ
Are you a trading company or factory? Can I have a factory visiting?
We are a factory that produces machines for customers directly. Yes, our production plant can be visited at any time. We are in Zhangjiagang, Jiangsu Province close to Shanghai and Wuxi. If you are near to us, the pick-up service is available.
How to build trust with Langbo We can send working videos showing the machine running perfectly in several countries for online communication. We will provide customer-focused and tailored technical suggestions.

For offline contact, you can visit our factory and talk about the machine face to face, you can find our competence in the field of plastic extrusion and tell our ability in machine building.
Is the shipping cost included in the quotation? Usually, our quotation contains FOB Shanghai as a shipment condition. This means the shipping cost between the delivery and destination ports will not be included in the quotation. The shipping cost fluctuates according to the delivery company and shipping date. Langbo can help customers to get the latest shipping price. Customers decide if we add the shipping cost to the quotation or choose a shipping agent by themselves.

What will happen after order confirmation confirmation of Configuration
Sign of Proforma invoice
30% of total price pre-payment for production starting
Test running in the house, customers on-site or video connecting
Confirmation of machine condition
70% of the total price for delivery preparation
Confirmation of Delivery date
Shipping to customer
On-site commissioning
Training in machine operation and maintenance
Confirmation of handover
One year guarantee
Whole lifecycle service and technical support
What is the Payment Method? T/T, D/P, Letter of credit, Cash transaction
How to guarantee the machine quality made by Langbo We provide one year guarantee and whole-lifecycle technical support for our product. During in-house test running, customers can check the machine on-site. Any point for optimization will be done immediately.
How can customers get the exact machine as they wish? Factory visiting before order
Product sample posting to Langbo for a better understanding of customer's expectations and configuration communication
On-site checking during test running
Do you have CE Certification? Yes. Both our extrusion machine and plastic recycling machine have CE Certification.
What is the delivery time between order confirmation and delivery? Usually 45 days. Depended on the certain project, the exact delivery time will be wrote on contract.
What are services for after-sale One-year quality guarantee.
Quick response for technical support
Problem analysis for production problems
What means one-year quality guarantee After the handover of the machine, Langbo provides free new parts for every non-man-made damage.

How to get the required area of the machine?
For a new plant, you can contact me. (whatsapp) After knowing your demand, I can make the detailed solution and layout of the machine line. Meanwhile, I will provide technical guidance of your installation and specification.
