Pn16 SDR11 PE100 1200mm HDPE Pipe for Mining Water Supply

Product Description

Product Description
The material of PE water supply pipes is PE (polyethylene) resin, which is polymerized from monomer ethylene. Due to different polymerization reaction conditions such as pressure and temperature during polymerization, different densities of resins can be obtained, resulting in high-density polyethylene, medium density polyethylene, and low-density polyethylene. PE water supply pipes have a series of advantages such as high toughness, corrosion resistance, crack resistance, stable interface, lightweight and easy construction, and are widely used in the field of water supply pipe manufacturing. In addition to using traditional excavation methods for construction, non excavation techniques can also be used for construction. The service life of polyethylene pipes is over 50 years, which has been confirmed not only by international standards and some advanced foreign standards, but also by practice.
Detailed Photos
Product Parameters

Water Supply Application HDPE Pipe's Parameter Datas
Normianl Diameter	SDR9	SDR11	SDR13.6	SDR17	SDR21	SDR26	SDR33	SDR41
	PN20	PN16	PN12.5	PN10	PN8	PN6	PN5	PN4
DN(mm)	2.0Mpa	1.6Mpa	1.25Mpa	1.0Mpa	0.8Mpa	0.6Mpa	0.5Mpa	0.4Mpa
Wall Thickness (mm)
20	2.3	2.0	/	/	/	/	/	/
25	3.0	2.3	2.0	/	/	/	/	/
32	3.6	3.0	2.4	/	/	/	/	/
40	4.5	3.7	3.0	/	/	/	/	/
50	5.6	4.6	3.7	3.0	2.4	2.3	/	/
63	7.1	5.8	4.7	3.8	3.0	2.5	/	/
75	8.4	6.8	5.6	4.5	3.6	2.9	/	/
90	10.1	8.2	6.7	5.4	4.3	3.5	/	/
110	12.3	10.0	8.1	6.6	5.3	4.2	/	/
125	14.0	11.4	9.2	7.4	6.0	4.8	/	/
140	15.7	12.7	10.3	8.3	6.7	5.4	/	/
160	17.9	14.6	11.8	9.5	7.7	6.2	/	/
180	20.1	16.4	13.3	10.7	8.6	6.9	/	/
200	22.4	18.2	14.7	11.9	9.6	7.7	/	/
225	25.2	20.5	16.6	13.4	10.8	8.6	/	/
250	27.9	22.7	18.4	14.8	11.9	9.6	/	/
280	31.3	25.4	20.6	16.6	13.4	10.7	/	/
315	35.2	28.6	23.2	18.7	15.0	12.1	9.7	7.7
355	39.7	32.2	26.1	21.1	16.9	13.6	10.9	8.7
400	44.7	36.3	29.4	23.7	19.1	15.3	12.3	9.8
450	50.3	40.9	33.1	26.7	21.5	17.2	13.8	11.0
500	55.8	45.4	36.8	29.7	23.9	19.1	15.3	12.3
560	62.5	50.8	41.2	33.2	26.7	21.4	17.2	13.7
630	70.3	57.2	46.3	37.4	30.0	24.1	19.3	15.4
710	79.3	64.5	52.5	42.1	33.9	27.2	21.8	17.4
800	89.3	72.6	58.8	47.4	38.1	30.6	24.5	19.6
900	/	81.7	66.2	53.3	42.9	34.4	27.6	22.0
1000	/	90.7	72.6	59.3	47.7	38.2	30.6	24.5
1200	/	109.1	88.2	67.9	57.2	45.9	36.7	29.4
1400	/	/	102.9	82.4	66.7	53.5	42.9	34.3
1600	/	/	117.6	94.1	76.2	61.2	49.0	39.2
Note: The HDPE pipe wall thickness is base on the GB/T 13663.2-2018 standard,there will be little different if produce accroding to EN/ISO/AS/NZS standard.

Certifications
Packaging & Shipping

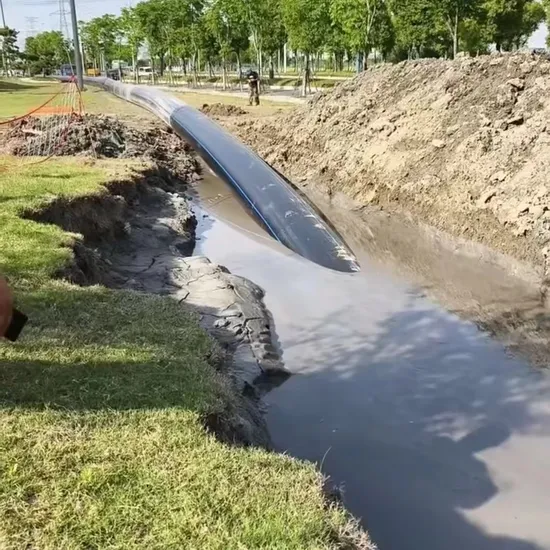

Installation Instructions
1. For installing buried polyethylene water supply pipelines, it is imperative to use electric fusion welding and hot melt docking methods exclusively. Screw connections and bonding are strictly prohibited. Ensure that each type of polyethylene water supply pipeline connection is accomplished with specialized tools. Avoid using open flames for heating during the connection process.
2. Polyethylene pipes must be connected using PE pipes and fittings of identical brand, material, and SDR rating. Prior to commencing the connection, conduct a thorough test to confirm that the quality meets the required standards.
3. When joining polyethylene water supply pipelines, ensure that the pipe ends are pristine. Temporarily seal the pipe openings at the end of each work session. Immediately inspect the interface upon completing the connection.
4. Both before and after performing hot melt butt welding, thoroughly clean the heating plate with a pristine cotton cloth. Adhere strictly to the heating time and temperature guidelines specified by the manufacturers of the hot melt butt welding machine and the pipes and fittings.
5. Follow the prescribed pressure holding and cooling durations for hot melt butt welding as outlined by the equipment and pipe manufacturers. During these periods, it is crucial not to move or apply pressure to the connecting parts.
6. Post-connection, it is essential to conduct a water pressure test on the pipes. Perform this test within 1 hour after completing the hot-melt weld. Secure the pipeline and expose the joints prior to the hydrostatic test. Fill the pipeline with water, clear out any air, and then check for water tightness.
7. The pipeline engineering construction can only be deemed operational after successfully passing the final acceptance inspection. Company Profile
Founded in the historic and culturally rich city of Yangzhou, China, in 2018, Yangzhou Huawei Pipe Technology Co., Ltd. has swiftly ascended as a preeminent leader in intelligent pipeline system solutions. Our unwavering mission is to deliver comprehensive, state-of-the-art solutions that cater to the diverse and evolving needs of our esteemed global clientele.
Our extensive and versatile product line includes HDPE, PVC, PP-R, MPP, and more, meticulously designed to cater to a multitude of applications. These range from construction engineering and municipal projects to agricultural drainage and irrigation, gas transportation, home renovation, and power cable sheathing. With an impressive catalogue boasting nearly 3000 distinct varieties and specifications, our offerings cover the entire spectrum of pipes, fittings, and valve products, ensuring a solution for every piping requirement.
Our Advantages
Dedicated to global trade excellence, we offer tailored services to pipeline dealers across the world. To support this commitment, we have heavily invested in cutting-edge mechanical equipment, setting the foundation for a modern, high-capacity factory. Our robust production capabilities allow us to achieve an annual output of 30,000 tons, sufficient to fill 3,000 containers, ensuring we meet the growing demands of our international clientele.
By harnessing our advanced machinery and implementing an exceptional management system, we effectively minimize costs, expedite delivery times, and ensure the highest standards of quality in every product we manufacture.FAQ
Are you a trading company or a factory?
We are a distinguished manufacturer, and we warmly welcome you to visit our state-of-the-art factory at your convenience.
What is your delivery time?
For small quantities, we utilize international couriers (DHL, FedEx, TNT, etc.) or air freight, ensuring you receive the goods within 3-5 days post-dispatch. For larger orders, we ship by sea, and the delivery time varies from days to weeks, depending on your destination port.
Can you provide samples?
Absolutely, samples are available. For standard products, samples are complimentary; you only need to cover the shipping costs. For high-value items, both the product cost and shipping are required. However, once we establish a solid partnership or if you become a VIP customer, complimentary samples will be provided.
Do you offer OEM services?
Yes, we provide customized OEM services tailored to your specifications, including LOGO and packaging.
What are your terms of payment?
We accept T/T or L/C at sight. For T/T, a 30% advance payment is required, with the balance due before shipment or via L/C.
What is your Minimum Order Quantity (MOQ)?
Our MOQ is flexible and can be adjusted according to the customer's requests.
Can we use our own label or packaging?
Absolutely. We are happy to accommodate your label or packaging requirements.
How can you ensure the quality of your products?
Integrity and responsibility are the cornerstones of our company. All products we supply are thoroughly tested and qualified. We provide a Certificate of Analysis (COA) before delivery to ensure quality.
