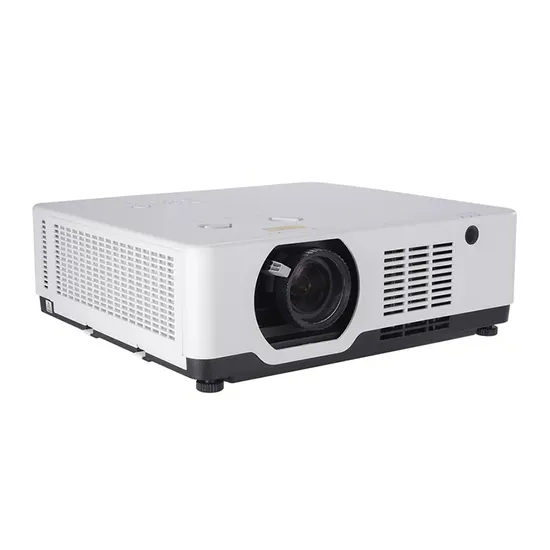

Immersive Laser Long Throw 4K 3LCD Video Projector 6500 Lumen
| US$2,680.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MX-LK6500
Brightness
6500 Lumen
Working Principle
LCD
Model No.
Mx-Lk6500
Lens Maker
Ricoh Lens
Throw Ratio
1.08(Wide)-1.76(Tele)
Light Source
Nichia Laser
Display Panel
3X0.64′′ with Mla
Display Technology
Liquid Crystal Display
Resolution
4K Enhancement
Normal Mode
20000hrs
Zoom/Focus
Manual
Contrast Ratio
5000000:1
Transport Package
Carton
Specification
405x358x137 mm
Trademark
Windon
Origin
China
HS Code
8528620000
Production Capacity
50000PCS/Month
Packaging & Delivery
Package Size
51.00cm * 50.00cm * 26.00cm
Package Gross Weight
10.400kg
Product Description
Immersive Laser Long Throw 4K 3LCD Video Projector 6500 lumen Product DescriptionThe MX-LK6500 Laser Projector is the brightest choice for large venue applications, featuring superior 6,500 ANSI-lumen brightness and 5,000,000:1 contrast ratio for brilliant viewing experiences even under bright ambient lighting. Laser engine delivers superior color performance , support for 360° proejction and portrait installation, and 24/7 operation with dramatically improved durability for diverse application opportunities.
High brightness, color precision and quiet operation, alongside a 1.6x zoom make this projector the ideal solution for a variety of end-user scenarios and professional environments, such as simulation, edge-blending and projection mapping, and immersive installations.Supply wide range of installation possibilities, captivating audiences at museums, entertainment venues and large corporate spaces.
The added control flexibility of HDBaseT and LAN make this projector an affordable install and forget solution.
Product Features
Product Parameters
| Key parts | ||
| Lens Maker | RICOH Lens | |
| Throw Ratio | 1.08(wide)-1.76(tele) | |
| Zoom Ratio | 1.6X Zoom | |
| Light source | NICHIA LASER | |
| Brightness | ||
| Brightness | 6500Lumen | |
| Overall Spec | ||
| Panel | Display Panel | 3x0.64" with MLA |
| Display Technology | Liquid Crystal Display | |
| Resolution | 4K Enhancement | |
| Light source Life time | Normal mode | 20000hrs |
| ECO mode | 30000hrs | |
| Projection Lens | Lens Vendor | RICOH Lens |
| F | 1.58~2.02 | |
| f | 15.3mm-24.6mm | |
| Zoom/Focus | Manual | |
| Throw Ratio | 1.2(wide)-2.0(tele) | |
| Zoom Ratio | 1.6 | |
| Screen size | 30-300 inch | |
| Lens Shift | V:+55%~0% H:±22% | |
| CR | Contrast Ratio | 5000000:1 |
| Noise | Noise(dB) TBD | 38dB(Normal) 30dB(ECO1) 28dB(ECO2) |
| Uniformity | Uniformity-JBMA | 80% |
| AR | Aspect Ratio | Compatible: 4:3/16:10 |
| Terminal(I/O port) | ||
| Input | VGA | N/A |
| HDMI 2.1(IN) | *2 | |
| USB-A | *2 | |
| RJ45 | *1 | |
| HD BaseT | *1(Optional) | |
| RS232C | *1 | |
| Output | Audio port | S/PDIF*1 |
| Audio out (mini jack,3.5mm) | *1 | |
| Control | RJ45 | *1 (Control) |
| General Spec | ||
| Audio | Speaker | 16W*1 |
| Dust filter | W/Filter | |
| Filter Life time | 8000h | |
| Power Consumption | Power Requeirements | 100~240V@ 50/60Hz |
| Power Consumption (Normal) (Max) | 435 | |
| Power Consumption (ECO)(Max) | 240 | |
| ECO Standby Mode Power Consumption | <0.5W | |
| Temp.&Humidity | Operating Temp. | 0 to 40°C |
| Operating Thumidity. | 20-85% | |
| Store Temp. | -10 to 50°C | |
| High altitude | 0~3000m | |
| Other Functions | ||
| Keystone | Keystone Correction (Lens@center) | V: ±30° H:±25° 4 Corner Correction |
| OSD | Languages | English, Chinese, |
| LAN Control | LAN Control-- PJ Link | Yes |
| Scanning Frequency | H-Synch Range | 15~100KHz |
| V-Synch Range | 24~85Hz | |
| Display Resolution | Video Signal Input | up to 3840x2160/60Hz |
| Voice control | Near-field RC voice | |
| Bluetooth | Bluetooth Version 5.0 | |
| Wireless Projection Function | Optional | |
| lamp mode | Normal/ECO | |
| Light source brightness | 50-100% | |
| High altitude | Yes | |
| Auto Ceiling | Yes | |
| HDR10 | Support | |
| 360° free viewing | Support | |
| Standby mode | Energy-efficient | |
| Dimension&Weight | ||
| MAX Dimensions (WxDxH mm) | 405 (W)*358(D)*137(H) | |
| Net. Weight (KG) | ~7.9KG | |
| Packaging Box Dimensions (WxDxH mm) | 510 (W)*498(D)*260(H) | |
| Gross. Weight (KG) | ~10.4KG | |
| Accessory | ||
| Manual Languages | Chinese,English | |
| Standard Accessaries | Power Cord,Remote control&RC Battery | |
