High Quality Woodworking Four Sided Planer Machine Four Side Moulder for Wood Door Frame

Product Description

Product Description

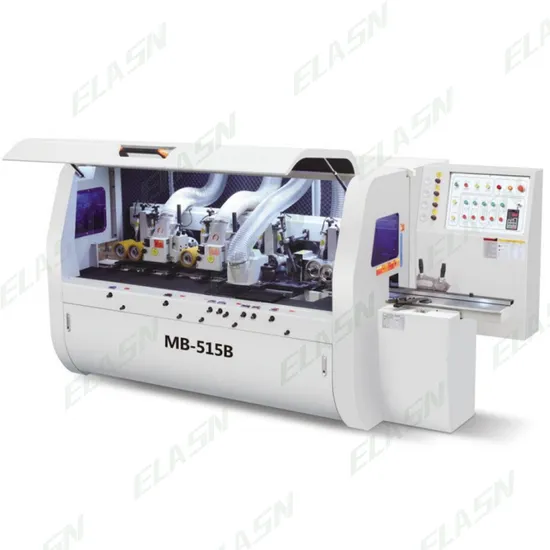

Wood Planer Moulder is designed for woodworking factory to process wood plank, plan the wood surface to be smooth and beautiful.
Molding of wooden floors, wooden doors, hardwood lines and large cutting lines.A variety of different arbor arrangement to meet the needs of diverse and batch production of wood products processing industry.
Specially solve the four-sided machining of four-sided planed board and laminated wood. Refers to important equipment indispensable for plate factories such as splicing boards and fine wood boards.
Product Parameters

Model	MB415	MB420	MB515	MB523	MB623
Max. processing width	150 mm	200 mm	150 mm	230 mm	230 mm
Min. processing width	15mm	15mm	15mm	15mm	15mm
Processing thickness	10-120 mm	10-120 mm	10-120 mm	10-120 mm	10-120 mm
Min. processing length	550mm	550mm	550mm	550mm	550mm
Feeding speed	10-35 m/min	10-35 m/min	10-35 m/min	10-35 m/min	10-35 m/min
Total power	21.25 kw	21.25 kw	29.75 kw	36.25 kw	41.75 kw
Dimension (mm)	2900*1600*1580	2900*1650*1580	3500*1600*1600	3500*1650*1600	4050*1650*1600
Weight	1800 kg	2300 kg	2400 kg	3000 kg	3300 kg

Product Features
1. Machine body is high grade cast iron to ensure stability.
2. This adopt step-less feeding, material feeding speed ranges from 10 to 35 meters/min.
3. Each spindle driven by an independent motor, with strong cutting force.
4. International brands electrical parts for good stability.
5. Fully enclosed safety shield, effectively avoid sawdust flying and isolate noise.
6. Pneumatic compress feeding roller is applied, that can be adjusted by stages, favorable for timbers with different thickness.
7. Up and down saws are responsible for 50% machining, high efficiency, energy saving and material saving.
8. Configured auxiliary device for short profile to promote the smooth feed.
9. Button on machine, power cut protection device for checking and saw blade replacing,provide people and machine safety.
10. Precision spindle, stable performance and high precision.
Detailed Photos


Application
1. The raw wood material could be wood, planks, decorative wood moldings, wood floors and other wood products, and planing the top and bottom and sides of wood to wood strips.
2. The final wood strips after processing can be used to make furniture, decorate doors and windows, etc. It is usually used in furniture factories, wood processing factories,etc.
Finished Products

Company Profile
Henan Elasn Machinery Equipment Co., Ltd is located in Zhengzhou, central area of China, a traditional industrial city with rich culture and history. Away from Xinzheng international airport only half an hour, also have train to every main city of China.
"Business integrity, Quality first" is our principle. Our company is equipped with a professional team of quality control and after-sales service members to keep track of each order scientifically, so as to provide high-speed services for customers.
"To provide a design, production, quality control, inspection, testing, sales and logistics service to companies that need a reliable supply of wood machinery from China."
All members of ELASN welcome new and regular customers to contact us to build long-term and friendly relation of cooperation! We will strive to produce more quality products for you!
Our Factory
Packaging & Shipping
After Sales Service-The main machine has 12 months guarantee and the electric elements have 6 months warranty.
- We respect any feedback from you after receiving the goods.
- We promise all spare parts available in lifetime use.
- We handle your grumble within 48 hours.Technical Support- We have sales teams, together with all technical support from our engineering team.
- Before sending machines, test and adjustment service are provided.
- Operating video & instruction will be sent to clients for better use of machines.
- Any problems occur while using, professional advice will be given by us.
FAQ

Q1: What's your factory MOQ and best price?
A1: No MOQ and 1 set machine order is also welcomed. We usually quote FOB Qingdao price, but if you want to know the other price term, we will try our best to meet with your demands.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A2: There is English manual that show you how to use machine. If you still have any question,please contact us by e-mail / skype/ phone / whatsapp /trademanager online service.
Q3: Is it difficult to maintenance the machine?
A3: If your company have a technician, then with our guiding videos, then it's not difficult we think, our other customers can handle by themselves, we think you also can.
Q4: How to install?
A4: We adjusted machines well before we delivery. When customers receive them, you can work with them directly.
Q5: What to do if the machine has a problem?
A5: 24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
