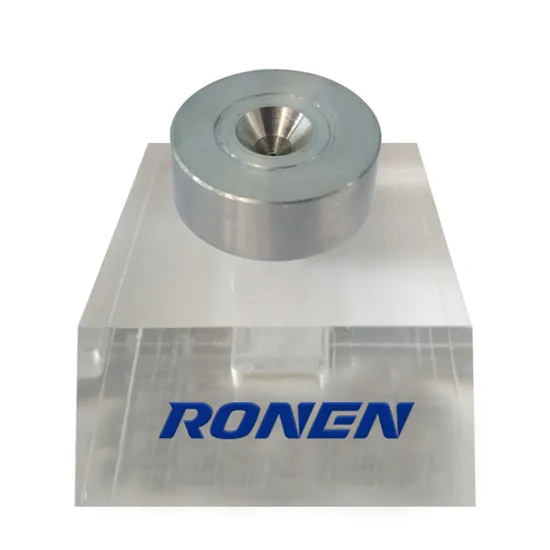

Copper Nonferrous Metal Fine Wire Natural Diamond Drawing Die

Product Description

Copper Nonferrous Metal Fine Wire Natural Diamond Drawing DieCompany Introduction
Product Parameters

Model Type	Fetures	Range of application
Artificial monocrystalline die	Natural diamond, good retentivity of hole roundness and stable quality	0.01mm-0.70mm fine wires
Various shaped artificial diamond dies	Good finish, high precision and strong wear resistance	Gold & silver jewelery, copper wires, zipper flat wires, tooth flat wires, square CP wires, stainless steel shaped wires and other shaped wires
Natural diamond drawing die	High-precision wire drawing industry and its correct hole	0.01mm-1 .5mm various fine metal wires
Nano drawing die	Forming a CVD diamond coating on the surface of tungsten carbide die	Strand wire and the drawing of nonferrous metal like copper, aluminum atc.
Artificial polycrystalline drawing die	Long service life, more repair times and wide range	0. 1mm-12.00mm
Round carbide drawing die	High wear resistance and high thermal conductivity	0. 15mm-50mm Drawing of various metal wires, tubings and rods.
Various shaped carbide dies	With high-quality cemented carbide as the raw material	Drawing, reducing, scalping and extrusion of copper, alumium, iron, stainless stell, aluminum alloy and other metal wires,tubings and rods

Standard Tolerance Corresponding To Diameter
Diameter(mm)	Tolerance(mm)	Maximum out-of-roundness(mm)
<0.020	+0 -1.5%	0.5%
>0.020~0.025	+0 -0.0003%	0.0002
>0.025~0.050	+0 -0.0004%	0.0003
>0.050-0.075	+0 -0.0006%	0.0004
>0.075~0.100	+0 -0.0008%	0.0004
>0.100~0.200	+0 -0.001%	0.001
>0.200~0.500	+0 -0.002%	0.0015
>0.500~1.000	+0 -0.003%	0.002
>1.000-2.000	+0 -0.004%	0.0025
>2.000~3.500	+0 -0.005%	0.003
>3.500~5.500	+0 -0.006%	0.0035
>5.500~8.000	+0 -0.007%	0.004
>8.000~10.000	+0 -0.008%	0.0045
>10.000~12.000	+0 -0.010%	0.005
>12.000~15.000	+0 -0.012%	0.006
>15.000~18.000	+0 -0.014%	0.007
>18.000~21.000	+0 -0.016%	0.008
>21.000~24.000	+0 -0.018%	0.009
>24.000~30.000	+0 -0.020%	0.010

Ronen Group Is committed to designing and manufacturing of induction heating equipment, which are widely used in Machinery, Building Materials,Metallurgy, Paper Making, Automobile Manufacturing and other fields, to fully meet the needs of Steel Pipe Seam Welding,Stainless Steel Pipe Welding, Strip Heating, Vacuum Melting, Copper Pipe Welding, Steel Pipe Annealing, Refrigerator Tube Welding,Metal Heat Treatment, Metal Smelting, Welding, Brazing, Thermal Assembly and other Induction Heating Process Requirements, mainly include Spring Steel Wires, High-Strength Pipe Piles PC Steel Rods / PC Bar, Prestressed Steel Wire, Prestressed Concrete Strand, Rebar, Aluminum-Plastic Pipes, Wires and Cables Production Equipment lines.
Ronen Group Domestic market share is more than 60%, and In recent years, we have exported our machines to USA, Europe, Russia, Egypt, Japan, Korea etc. more than 25 countries.

Ronen will always be here for you!
Product Description

Artificial Monocrystalline die
Tinned die series
Drawing Dies
Application
We mainly provide service for processing plants of stainless steel wire, tungsten molybdenum filament, gold wire, silicon aluminum wire, super-fine enamelled wire and super-fine noble metal wire. The thread throwing dies have a major product size from 0.01mm to 50mm (diameter) or the size based on the technical standard offered by the customer and we can keep a punctual delivery and contractual promise.
Our service tenet is that customer' s satisfaction is our target. We sincerely wish to establish a bright and successful future together with partners around the world.
Ronen Group Workshop Show
Exhibitions

Certifications
Packaging & Shipping
FAQ
Q: Are you manufacturer?
A:Yes, We are manufacturer.
Q: How to order?
A:Please send us your inquiry by email, send message through ****** , Wechat, Whatsapp or others as you want.
Q: What are the payment terms?
A: Pattern :we can accept T/T,Western Union ,Money Gram.
Q: What is the whole business flow cooperation with us?
A: 1.Firstly,send your inquiry to us, make us have learned your requirement
2.We will be drawing a proforma invoice according to your requirement ,and start production after you finished to pay 30% deposit.
3.All of the goods, packing details will be send to buyer after finished production. We will arrange shipment and the buyer finished to pay the balance.
Not only the Good Machine, but also the Most Attentive Service
If any doubt,feel free to contact us with no doubt!
RONEN always here for you!!
