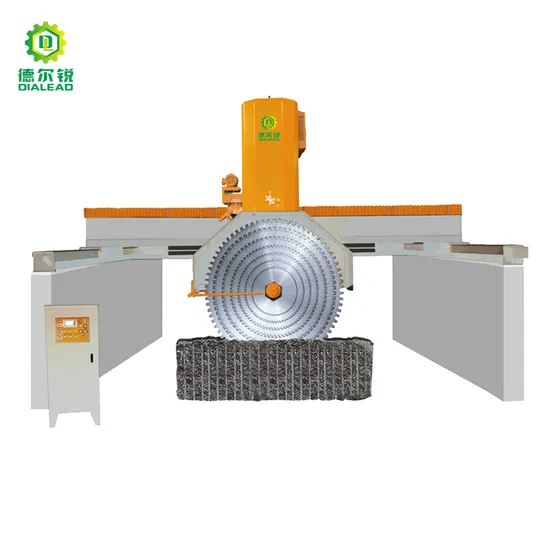

Dialead Multi-Blade Bridge Block Stone Cutting Machine for Granite Marble

Product Description

Product Description
DIALEAD is the top stone machine and stone tools manufacturer in China with a history of more than 20 years.
Bridge Type Block Cutting Machine is used for processing the big blocks.It has the advantages of high cutting efficiency, high slicing accuracy, good flatness, high stability and simple operation. this machine is especially suitable for cutting high-value granite and marble blocks.

1. Mechanical part: The cross beam and the side beam are all cast as a whole. The cross beam is 7.5 meters long with a cross-sectional size of 600X700. The cross beam cover is a windproof organ cover. The side beam is 4.5 meters long. All beams are designed with wide oil grooves. The main engine is raised and lowered with four solid chrome-plated guide columns with a diameter of 140mm wrapped by wear-resistant guide bushes of ductile cast iron. The four guide columns are all oil-immersed lubricated, so waterproof, dust-proof and durable. The upper and lower connecting plates are integrally cast. The whole machine adopts anti-rust screws. The main shaft box adopts one-stage gear speed change. The bearing adopts heavy-duty tapered roller bearing and heavy-duty cylindrical roller bearing. The side beam transmission adopts screw nut transmission, and the position of the transmission beam motor reducer adopts waterproof offset setting.
2. Electrical part: floor electric control cabinet, PLC computer operating system, LCD touch screen (7-inch) with Chinese, English and Russian operation interface, wireless remote control, German frequency converter, Taiwan MEAN WELL switch and power supply, Zhejiang Delixi Air switch , Germany Siemens switch button, Japan OMRON relay and encoder, Korea LG contactor and thermal overload , customized highly water-proof limit switch, Nanping Sun brand cable, main motor 45KW-6P Xiamen Eagle, total power 55KW.
3. Hydraulic part: double hydraulic lift of main engine, Taiwan 7 0CEAN solenoid valve, double-layer thickened high-pressure oil pipe.
4. The diameter of the spindle is 100MM.The diameter of the blade holder is 300MM.The diameter of the blade is 650MM. 17 pieces of blades can be hung.

Technical Data
All technical data can be customized to meet your specific needs.

Model	Unit	DLQSQ-2500	DLQSQ-2800	DLQSQ-3200
Main Motor Power	kw	30/37	45/55	45/55
Blade Diameter	mm	1600-2500	1600-2800	1600-3200
Lifting Stroke	mm	1300	1400	1400
Slicing Range	mm	2000	2600	2600
Cutting Stroke	mm	4500	4500	4500
Blade Number	pieces	1-12	1-16	1-18
Gross Power	kw	42.2	50.2	50.2
Max Working table	mm	4300*2000*2000	4300*2600*2000	4300*2600*2000
Overall Dimension	mm	7500*3500*3300	7500*4000*3400	7500*4000*3500

Machine Details
Packaging & Shipping

Company Profile
Quanzhou Dialead Stone Machinery Co., Ltd. is a high-tech enterprise founded by Dialead Stone Tools, together with several domestic well-known engineering colleges, stone machinery technicians and software system companies. Dialead Stone Machinery main products include five-axis bridge cutting machine, four-axis bridge cutting machine, stone copying machine, baluster machine, engraving machine, block cutting machine, polishing machine and etc. With constant technology innovation, stone processing industry has now developed to intelligent automatic processing from initial rough processing. Dialead is always devoted to the improvement of its technology and making contribution to the development of the industry.
Engaged in the production of stone tools (diamond segment, saw blade, engraving knives, stone polishing abrasives) for more than 20 years, Dialead has a good knowledge of stone tools and specific needs of different markets. When it comes to stone machinery, Dialead can well match its stone machines with its stone tools to achieve the best processing effect. This is what tells Dialead apart from other stone machinery suppliers in China.
With complete R & D and production system, Dialead is seeing its sales map bigger and bigger. For domestic market, Dialead Stone Machinery has set up offices in many cities. For international market, Dialead products are exported to more than 60 countries and regions, such as Russia, the United States, Ukraine, Kazakhstan, India, Poland, Jordan, Oman and etc.
Dialead attaches great importance to intellectual property and certification in its development. Dialead has obtained more than 30 patent and more is in the way. All Dialead machines are CE certified to make sure all details meet international standards.
