Full Electric Reel Lifting/Roll Lifter with Rotation for Viscose Fabric

Product Description

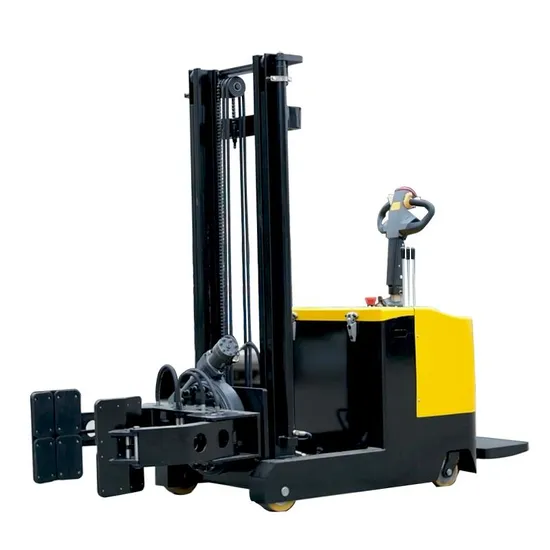

Product Description Electric roll lifter, also known as electric roll stacker,electric rotary forklift or electric powered walkie stacker,which is designed for carrying cylindrical or roll materials of varying sizes up to 47 inch in diameter rated with a maximum weight capacity and lift height of 2200 lbs and 118 inch high respectively.
This electric roll lifter is frequently to handle rolls of material including paper, film, foil, textile and nonwovens. These materials are commonly found in the print and packaging industries. For instance paper roll handling equipment is commonly used in the paper industry to lift and transport paper rolls to printing machines and throughout the manufacturing and distribution process.

Model	CDD0516-Z	CD1016-Z	CDD0525-Z	CDD1025-Z	CDD1030-Z
Load Capacity(kg)	500	1000	500	1000	1000
Max Lift Height(mm)	1600	1600	2500	2500	3000
Battery(V/Ah)	24/200	24/200	24/200	24/200	24/200
Charger(V/A)	24/30	24/30	24/30	24/30	24/30
Self-weight(kg)	710	730	760	790	830
Overall Size(mm)	2500*1650*2000	2300*1450*2000	2100*1250*1780	2000*1050*1780	2000*850*2050
Lift Motor(kw)	2.5	2.5	2.5	2.5	2.5
Drive Motor(kw)	AC1.5	AC1.5	AC1.5	AC1.5	AC1.5
Climbing Slope(%)	4/6	4/6	4/6	4/6	4/6
Working Aisel(mm)	2600	2400	2200	2100	2100
Walking Aisel(mm)	1700	1500	1300	1100	900
Roll Diameter(mm)	800-1200	600-1000	400-800	200-600	100-400
Service Brake	Electromagnetic Braking

1.Powered drive and lift provides quick, easy and efficient material handling solutions.
2.Made of high-strength metel to ensure strong and stable clamping force. Easily clamping the paper rolls for moving without shaking or falling off, making your handling safer and more reliable.
3.The unique vertical drive cell, and special stacker's gear box, which are far away from the dust, long-term moisture erosion, good heat dissipation, it is conducive to work in long time.
FOR BEST QUOTE,WE WOULD LIKE TO KNOW:
1)What's your load capacity? -----We have 500-1000kg available
2)What's your max lifting height?----We have 1.6-3meter available
3)What's your Max. roll diameter and Min. roll diameter?
4)How many quantity do you need?----MOQ is one
5)Quote which terms?----EXW factory price/FOB shanghai price/CIF your port
