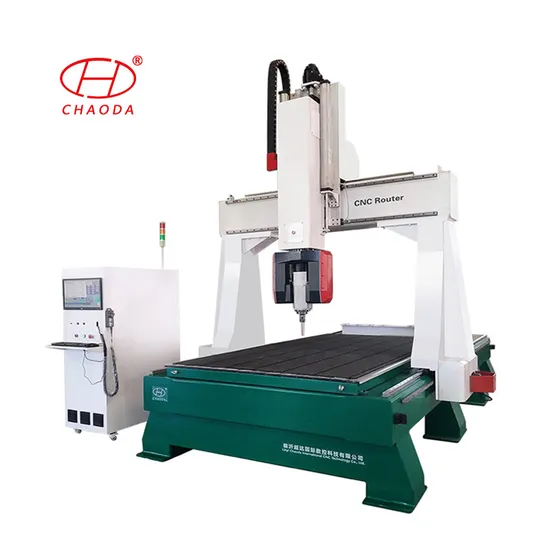

Factory Supply! 3D 5 Axis CNC Wood Router Engraving Machine with Rotary Device

Product Description

Factory supply ! 3D 5 Axis CNC Wood Router Engraving Machine With Rotary Device
All machine parts adopt high configuration and top quality from all over the world, to make machine with high performance and durability. Machine is with a big rotary device, can make different kinds of 3d sculptures, statues, figures, idols, landscapes, stage props, park designs, etc. Machine is with a flat table, can do deep flat works, like 3d reliefs, 3d molds, door furniture, acrylic words/letters, landscapes , etc. Spindle rotate from 0 to 180 degree, can make arc-surface milling, bending surface machining for 4D jobs, like special shaped arts, bended doors or cabinets, also can make horizontal milling, cutting and drilling works. With linear type automatic tool changer, spindle change tools automatically,no need manual work,keep good working accuracy and increased working speed.

Model No.	JCF1530L 5AXIS
Flat working size	1500*3000*500mm*180 degree
Rotary working size	1000mm diameter, 2500mm length
Lathe bed structure	T-extrusion, Thick Steel frame
Table	Removable, T-slot with clamps
X structure	Rack and pinion, linear square rail
Y structure	Rack and pinion, linear square rail
Z structure	Ball screw, linear square rail
Resolution	0.001mm
Max. travelling speed	0-60000mm/min
Max. working speed	0-30000mm/min
Spindle	9kw air cooling ATC spindle
Tool magazine	Linear type auto tool changer, 8 tools ability
Driving system	Japan YASKAWA servo motor and driver
Operating system	5 axis Syntec
Operation language	G code
Working voltage	AC380V, 3-phase, 50Hz
Working materials	Eps foam, Styrofoam, Woods, MDF, Composite boards, PVC, Rigid plastics, Polyester, Fiberglass, Acrylic, Organic glass, Aluminum, etc.

1. Sample testing before shipment
2. Provide 2 days free training for each machine
3. 12 months warranty for each machine
4. Friendly English version manual and operation videos for studying
5. Free technical support by phone,email,chatting or remote
6. Engineers available to service machinery overseas
