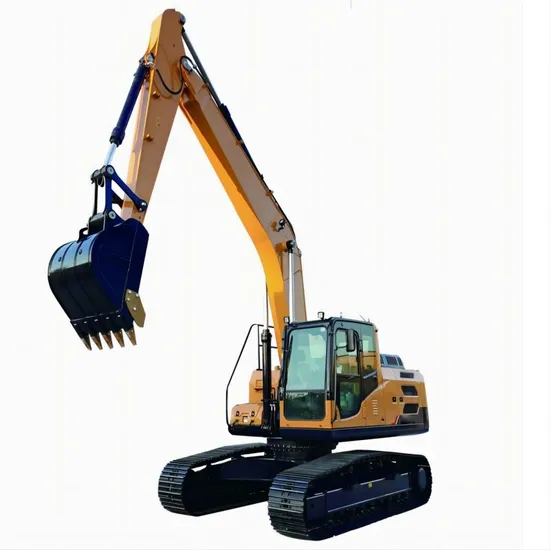

Large Big Hydraulic Crawler 20 Ton Earth-Moving Machinery Excavator

Product Description

Product Description


Small excavator EP230
Small Excavator -The EP230 is a compact, versatile machine designed for efficient excavation tasks. With its low fuel consumption and powerful performance, it is ideal for working in construction and complex terrain. The EP230 has excellent maneuverability and a range of accessories, making it an invaluable tool for construction, landscaping and utility projects.
Our advantage
01 International famous brand engine - Strong power to meet the requirement of efficient operation. Advanced energy-saving control makes the machine consume less fuel.
02 Advanced hydraulic system - pump, valve, swing motor, traveling motor, oil cylinder, pilot operated valve and other components are all of international famous brand, which ensures the quality of the product.
03 A variety of attachments can be installed - one machine can be used for multiple purposes, adapting to a variety of working conditions.
04 Optional GPS system and reversing image system, remote diagnosis, fault warning, maintenance, automatic reminder; improve the efficiency and safety of excavator operation.
05 Function switches are centrally arranged on the control panel, easy to select by touching the buttons.

Specifications
(m3)	Bucket Capacity	1.1
(rmp)	Swing Speed	11-13
(°)	Gradeablity	30
(KN)	Max.Bucket Digging Force	140
(KN)	Max.Arm Digging Force	99
Engine Model	Cummins-QSB7	-
(KW/rmp)	Power/revolution speed	124/2050
(TON)	Operation Weight	23
(MPa)	System Pressure	34

Machine size
(mm)	Dimension Length*Width*Height	9590x2980x3185
(mm)	Total Width	2980
(mm)	Total Height	3185
(mm)	Cabin Height	3060
(mm)	Axle Base	3655
(mm)	Wheel(track) Distance	2380
(mm)	Minimum ground clearance	470
(mm)	Tail Swing Radius	2880

Working range
(mm)	Max.Digging Height	9410
(mm)	Max.Dumping Height	6730
(mm)	Max.Digging Depth	6480
(mm)	Max.Vertical Digging Depth	5925
(mm)	Max.Digging Radius	9850
(mm)	Min.Swing Radius	3555
