Extra Heavy Conventional Large Lathe Swing. Dia. 1800mm 10T-40T Torno

Product Description

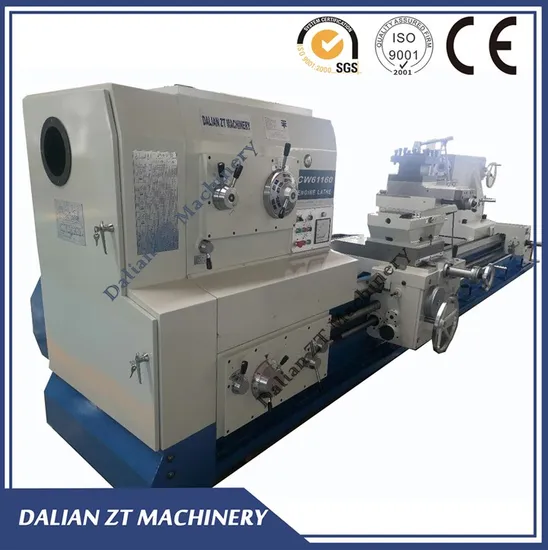

HEAVY-DUTY HORIZONTAL LATHE
Features:
Full range of products---from 250mm~6300mm
Load capacity 3~500T

ITEM	C61180x6000
SWING OVER BED	1,800 mm
SWING OVER CARRIAGE	1,400 mm
WIDTH OF BED	1,600 mm, 3 guideways
DISTANCE BETWEEN CENTERS	6,000 mm
SUPPORT WEIGHTS BEWTEEN CENTERS	32 TON
Spindle taper HOLE	120 mm; 1:7
SPINDLE SPEED	3 STEPS, 0.8 TO 160 RPM
Torque of faceplate	80 KN.m
SIZE OF TOOL HOLDER	70×70 mm
Travel of CROSS SLIDE	725 mm
TRAEL OF TOP TOOL POST	600 mm
FeedDING RANGE IN CROSS SLIDE	0.063 TO 24 mm/R
FeedDING RANGE IN LONGITUDINAL SADDLE	0.125 TO 48 mm/R
Rapid traverse of CROSS SLIDE	1,500 mm/min
Rapid traverse of LONGITUDINAL SADDLE	3,000 mm/min
Diameter of tailstock QUILL	300 mm
Taper hole of tailstock QUILL	100 mm; 1:7
Movement of tailstock	300 mm
TRAVERSE SPEED OF MOTORIZED TAILSTOCK	3,000 mm/min
POWER OF MAIN MOTOR WITH ADJUSTING SPEED DEVICE	DC 75 KW
BEDWAY	HARDENED & GROUND
ELECTRICAL POWER	380V/3PHASE/50HZ
Net dimension of the machine	7,040×2,060×2,230 mm

ACCESSORIES
FOUR JAWS CHUCK, DIA. OF 1,600 mm
REST, RANGE FROM 400 TO 750 mm
WORK LIGHT
Foundation boLTS and LEVELING BLOCKS
DEAD CENTER
SPECIAL TOOLS
OPTIONAL ATTACHMENT
SUPPOTER WITH ROLLERS, RANGE 600 TO 1,200 mm
DRO DISPLAY FOR BOTH AXIS


Quality Control & Inspection before Packing
We control the assembly quality as well as control the quality of casting and parts/units to ensure the machines will be good enough from appearance to performance and stability keeping.
After testing and painting before packing, we will check all the accessories item by item:
Packing & Local Transportation & Fixing
Normally we will pack the machines with fumigated wooden cases or poly wooden case and steel pallets. When the machines are loaded into the container, fixing job will be done to ensure the sea shipment safety.


FAQ
1. How can I choose the most suitable machines?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are 100% new and not used, only made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested?
A: The accuracy, noisy will be tested according to China GB standard. Some machines will

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months after shipment date
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.
