Lift Table

Product Description

Product Description

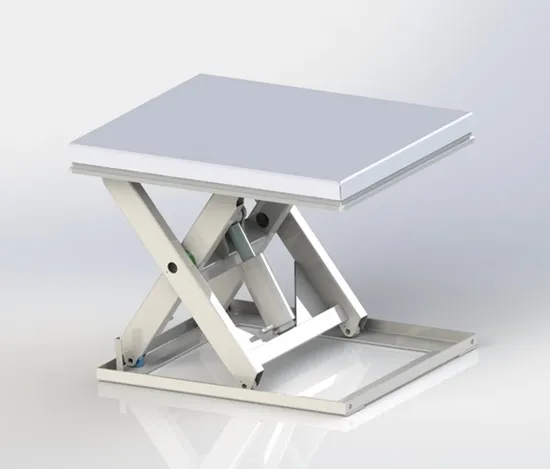

Southworth Backsaver Hydraulic Lift Tables are extremely rugged and reliable machines.
Thousands of Backsaver Hydraulic Lift Tables are in use throughout world for machine feeding, work positioning, assembly, order picking, pallet loading, and a wide range of other applications.
Backsaver Lift Tables are available in many basic sizes and capacities to lift and position loads up to 3000KG to heights up to 1600mm.
The wide range of power options, controls, tabletops, and base configurations that can be specified for each of the many basic sizes gives the user an almost unlimited choice of variations.
These products are used Logistics Centre for Luxury goods manufacturers,they can carry people and goods.
Product Parameters

Model No.	SJGM0.5-0.65	Capacity kg	500
Platform size mm	1100mm X 800mm	Lift Time sec	15
Min. Height mm	180	Max. Height mm	830
Model Type	stationary	Application	material handling
Color	Grey/green/ blue/others	Customized	Yes
Power Voltage	380V 50Hz	Control Voltage	24V DC

Application Fields
•Consumer Appliance Manufacturing •Printing, Publishing and Book Binding •Prepared and Frozen Food Processing
•Beverage •Pharmaceuticals •Automotive Parts
•Warehousing •Electronics Assembly •Woodworking
•Machine Shops •Retail Distribution
