Concrete Mixer Construction Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Conveying Pumping Mortar Spray Machine Cement Transfer Concrete Pump

Concrete Mixer Construction Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Conveying Pumping Mortar Spray Machine Cement Transfer Concrete Pump

US$5,400.00
1-19 Pieces
US$4,000.00
20-49 Pieces
US$2,000.00
50+ Pieces

Basic Info.

Model NO.
Concrete Pump
Type
Concrete Pump
Shotcrete Type
Wet
Machining Process
Hydraulic
Structure
Cylinder Type
Productivity
40m3/H
Feeding Height
1400mm
Vibrating Amplitude
1.1mm
Certification
ISO9001: 2000
Condition
New
Color
Yellow
Maximum Theoretical Delivery M³/H
40 Diesel Concrete Pump
Maximum Outlet Pressure MPa
13 Electric Concrete Pump
Motor Power Kw
55 Mini Cement Pump
Feeding Height mm
1200 Small Cement Pump
Host Quality Kg
3400 Mortar Grouting Machine
Most Suitable for Pumping Concrete Slump
15—2
Certificate
CE EPA
Total Mass
650kg
Dimensions L*W/*H
2300-800-1400mm
Maximum Particles Allowed
30mm
Transport Package
Wooden Case or as Required by The Customer
Specification
4300× 1600× 1800mm
Trademark
zhongmei
Origin
China
Production Capacity
1000 Sets Per Month

Packaging & Delivery

Package Size
30.00cm * 30.00cm * 30.00cm
Package Gross Weight
20.000kg

Product Description

Hot Sales
Product Description
Introduction of Free Shipping Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
The construction site fine stone mortar pump is applied in high-rise building ash mortar and fine stone concrete transportation, secondary structure column grouting, reservoir, hydropower station, port, dock, various pressure grouting, foundation treatment, weak foundation, reinforcement grouting, tunnel Backfill grouting anchor support in subway and mine construction. Other descriptions This product adopts hydraulic feeding, and the double-cylinder reciprocating operation of vibrating net filter can completely transport various mortars, fine stone concrete, etc. in building application. This product has large displacement, high pressure, labor saving, flexible movement, etc. Features, is an ideal mortar conveying equipment. The pump is widely used in indoor construction of urban construction projects (such as infusion of structural columns and invisible columns), anchorage grouting, consolidation grouting and backfill grouting works for underground tunnels of urban subway hydropower stations. It can also be used for grouting of anchor piles during slope and soft rock reinforcement.
Product Parameters
Parameters of Free Shipping Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
Project Unit HBTS25 HBTS40 HBTS60 HBTS80
Maximum theoretical delivery m³/h 23 40 60 80
Maximum outlet pressure Mpa 8 13 13 13-16
Maximum theoretical transport distance m 100/300 200/800 240/1100 240/1100
Motor Power kw 30 55 90 90-110
Feeding height mm 1200 1200 1350 1350
Pumpable concrete maximum particle size mm ≤50 ≤40 ≤40 ≤40
Most suitable for pumping concrete slump cm 15-23 15-23 15-23 15-23
Duct inner diameter mm Φ125 Φ125 Φ125 Φ125
Host weight Kg 1900 3400 5000 5600
Dimensions: length × width × height mm 3300×1600
×1800
4300×1600
×1800
5500×1800
×2000
5800×1800
×2000

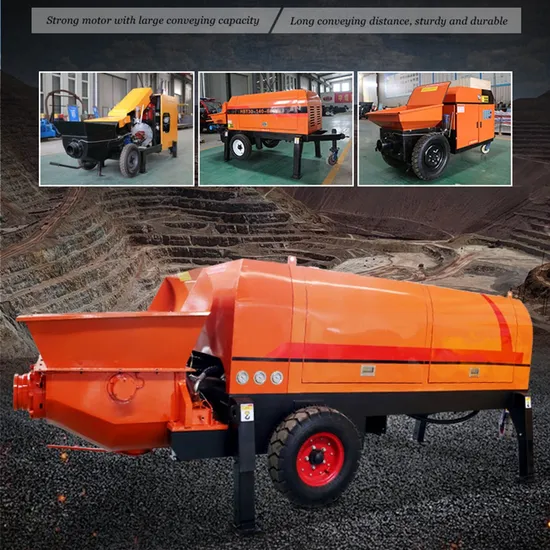

Detailed Photos
Photos of Free Shipping Concrete Machinery Portable Mobile Diesel Electric Trailer Mounted Mini Concrete Conveying Pumping Machine Cement Transfer Pump
Certifications
Exhibition
