Low Voltage Pole-Mounted Fuse Cutout with Reliable Quality and Price From Direct Factory

Product Description

Cutout Fuse and base
Product Description
J wedge fuse is according with GB13539, IEC60269 and BS88 standard.
The product has been used for overload and short circuit protection of distributing line. its rated voltage is 415V and rated current up to 630A AC 50Hz.
Technical Data
Rated voltage:415V AC
Breaking capacity:80KA
Function grade:gG /gL/gtr/aM/gM

Type	Spec	Competitor part number	Rated voltage(V)	Class rating(A)	Dimensions(mm)
					A	B	C	D	E	F	G	H	I	J	K	L
J	82	RGJ	415	32~200	110	82	45.2	40.5	30	14.8	18	6.5	2.4	17.5	9.8	30.8
J	82	RGJ	415	200~400	110	82	44.8	40	30	14.4	18	6.5	2.4	17.5	9.8	38
J	92	RGJ	415	20~315	131	92	46.8	40.5	41	17.4	-	8.7	3.2	20.7	11	30.8
J	92	RGJ	415	355~400	131	92	46.4	40	41	17.4	24	8.1	3.2	20.7	10	38
J	92	RGJ	415	315~500	131	92	-	45	38	16.5	22	8	3.2	20.6	11	50
J	92	RGJ	415	560~630	129	92	44.5	47.8	38	16.5	22	8	3.2	20.6	11	73.3

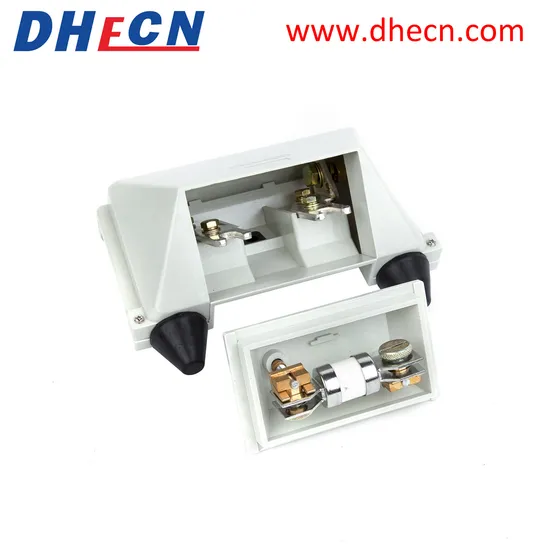

DHR-400
400A Fuse cut-out for pole or wall mounting c/w M12 coach screw.
Structure Feature
Vandal resistant tough design, using our own formulation of GRP.
Slide fit front cover for ease of jointing.
'Easy fit' studs accept cable sockets(lugs) up to 300mm².
Designed to accept standard 'J' type fuse links
Compliant with the requirements of BS7656:1993
Compliant with the design criteria of IP43
Fuse links
This fused Cut-out is designed to accommodate standard wedge type fuse links to BS88-5:1988, conform to 415AC80.
Fixing centre requirement is 82mm.
Standard fuse link rating range from 20A to 400A.
Product image
