Formica/Mica/Sunmica Sheets High Pressure Lamination Press Machine

Product Description

Product Description

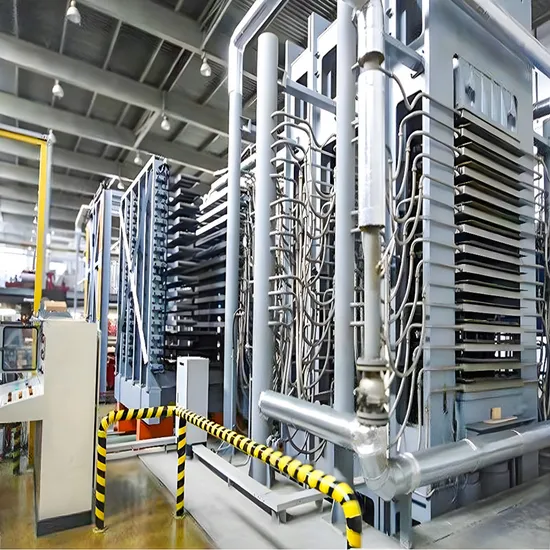

The high-pressure lamination press is mainly used for furniture production,such as pressing fireproof board, the total pressure can reach 2000 tons. The frame is a tower structure with high strength and good rigidity. The equipment adopts a high-pressure water heating and cooling system, which ensures precise control of heating and cooling in the production process. The platen channel is reasonably arranged so that the hot platen warms up faster and at the same time ensures the uniform temperature. The hydraulic system adopts vane pump and high-pressure piston pump with high flow and low noise, which meets the process requirements of mold closing time and pressurizing speed.
Product Parameters

Brand	NTRY
Total pressure	2000 T
Openings	10 layers daylight
Daylight opening	100mm
Finishing hpl sheet size	1320 x 2830 or 1330 x 2830mm
Closing time with press non-load	≤120 s
Total power	~120 kW 380VAC 60Hz
Total net weight	~ 185T@10DL
Customization	Yes

FAQ

--Who we are?
Nantong Ruiya Electromechanical provides complete solutions for the impregnation and lamination industries. Our products cover impregnation, lamination, electronic materials CCL, AL-CCL, carbon crystal plates, mica plates and other composite materials industries. We have 20 years of production and export experience, and our equipment is exported to Russia, the Middle East, India, Pakistan and other regions.

--Why choose us?
1.We will consider various factors from the perspectives of site, production volume, energy conservation and environmental protection, and provide a complete design solution.
2.We have a technical team led by 5 senior engineers to discuss and solve various technical problems in a timely manner.
3.Complete pre-sales and after-sales supply chain, supporting on-site installation.
