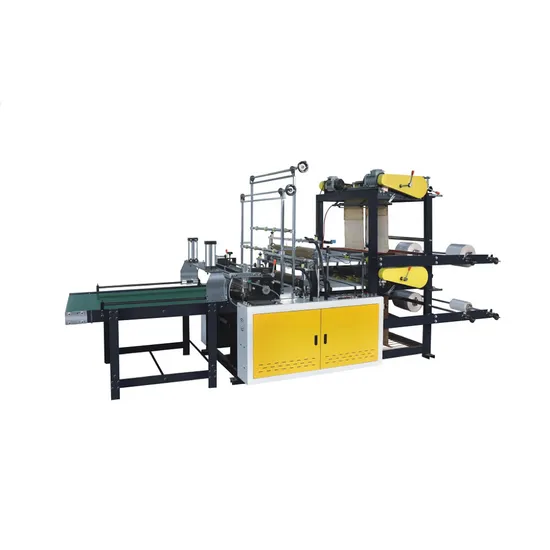

High Quality Bag Making Machine Plastic Maquina PARA Hacer Bolsas Machine

Product Description

HERO MACHINE---SINCE 1985
Add:Shangwang Industry Area Ruian Wenzhou,China


Website: herowu.en.made-in-china.com

Youtube Video website: http://herowu.en.made-in-china.com
T-SHIRT BAG: http://youtu.be/eXNDGtN4L9c
T-SHIRT BAG:https://youtu.be/KNUR8Z6RTOk
POUCH BAG:https://youtu.be/UrJdFqvGNkI
Roll Garbage Bag: http://youtu.be/yJLhjh7g5fA
We Have lots of kind plastic bag making machine,can do T-shirt bag,vest bag,handle bag,garbage bag,bread bag,water bag,patch bag,chicken bag,arc bag,dhl courier bag, Stationery bag,pouch bag,wicketer bag,calendar bag,zipper bag,vaccum bag,rigid hand bag,roller bag,middle/three side sealing bag,rice bag ETC.
Material of bag is HDPE,LDPE,PE,PP,OPP,BOPP,PVC etc.
Welcome To Contact Us!
Common unwinding
1. Unwinding adopt common loading , max diameter of raw rolling material is 600mm
2. Adopt magnetic powder tension control. Manual adjust the tension.
3. Unwinding shaft is heavy-chain plug axle
4. Unwinding with EPC
Top-folding continuously sealing device.
Top folding and round bottom gusset device:
Soft loop handle bag device
1. Double layer unwinder
2. The whole type steel plate base, and special support bag structure.
3. High quality oval sealing knife from up and down
4. Hydraulic skew angle feeding soft loop
5. 90 degree turnabout gear rotary soft loop
6. Special oblique drag style rotary soft loop
7. Micro-motor driver soft loop handle go forward and back off
8. Centralize style air control system
Patch handle bag device
Heat sealing handle punch
Photocell of printing and preheating :
1. Printing image tracking adopts photocell from SICK FROM GERMANY
2. The photocell of priting together with high technical computer ,
3. The pre-sealing knife is designed specially of bottom four layers film, high speed produce bag
4. Double sides heating, double cylinder driven, strong for gusing, and strong for sealing .
Convey vollect device:
Control parts:
1. The main control panel real-display touch screen with Taiwan eview screen
2. Main motor adopt 1.5kw reducer(with braket), driven by the 1.5 kw inverter used YASKAWA FROM JAPAN
4. Driver control program of the whole machine by PLC-panasonic-JAPAN control.
5. Back feeding adopt traction is driven by inverter from JAPAN-YASKAWA
6. Bag feeding is driven by 3 kw servo motor from JAPAN-YASKAW
7. All of pneumatic parts and air cylinders of whole machine all from Shanko-Taiwan
8.. ALL heating adopot AC contactor
9.. Adopt dual intelligent temperature controller
10. The bag making of whole machine operate from inner of machine
Technical data:
Model : ZD800
Bag style: soft loop handle bag, poly draw handle bag,patch handle bag,top folden die cut bag,
Width size of unwinding: 800mm( double )
Diameter of unwinding : 600mm(max )
Length size of bag making: 250-750mm(if want bigger size that should order)
Width size of bag making : 250-600mm
Top folden: 50-75mm
Bottom folden : 30-60mm
Thickness of film : HDPE 0.03-0.06mm LDPE 0.04-0.08mm
Length size of loop handle tape: 360mm
Thickness of loop handle tape: 0.08-0.25mm
Width size of draw rope tape : 25mm*2(double layer)
Thickness of draw rope tape: 0.04-0.15mm
Width size of patch bag: 150mm
Thickness of patch bag: 0.11-0.15mm*2(double layers)
Speed of bag making:
soft loop handle bag 60 pcs/min,Poly draw handle bag 70 pcs/min,
Patch handle bag 60 pcs/min,Die cut handle bag 75 pcs/min
Total power: about 13KW
Working noise : about 90db
Outside of machine : 7800X3200X1850mm
Weight of machine : 3500kg
Air compressor : 7HP
