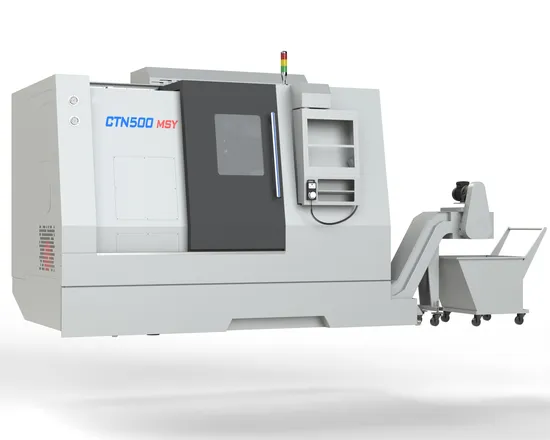

Y Axia Slant Bed CNC Lathe Machine
Basic Info.
Model NO.
HT600M CTN600MY CTN600MY/1000
Type
Horizontal Lathe
Processing Accessory
Centre CNC Lathe
Guide Rail
Inclined Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Hydraulic Pressure
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Table
Precision
High Precision
Certification
ISO 9001
Condition
New
Net Weight
4000kg
Maximum Machining Length
600
Y Axis Stroke
120mm
X/Z Axis Linear Guide
Roller Linear Guide
Transport Package
Packed in Wooden Cases with Steel Bottoms
Specification
2750*1850*2000
Trademark
xing
Origin
China Linyi
HS Code
8458110090
Production Capacity
1000
Product Description
| item | specification | |
| 1 | Max. swing dia. over bed | 650mm |
| 2 | Max. turning dia. of workpiece | 360mm |
| 3 | Distance between centers | 600mm |
| 4 | Bed form | step-wise |
| 5 | Middle pallet | 30° |
| 6 | Max.X stroke | 240mm |
| 7 | Max.Z stroke | 650mm |
| 8 | Rapid feed X/Z | 24/24m/min |
| 9 | X/Z motor speed | 3000RPM |
| 10 | Z axis linear guide width | 45mm( roller style) |
| 11 | Ball screw X/Z | 3206/4012 |
| 12 | Spindle speed | 100-4000RPM |
| 13 | Spindle nose | A2-6 |
| 14 | Spindle bore | 66mm |
| 15 | Power of main motor | 7.5/11/15KW |
| 16 | Spindle clamp | 8 /10/12inch hydraulic chuck |
| 17 | Chuck bore | 55mm |
| 18 | Tool holder | Hydraulic Turret(taiwan)/servo turrret/servo power turret |
| 19 | Number of tool holders | 12 |
| 20 | Standard blade size | 25×25mm |
| 21 | Maximum boring tool diameter | 40mm |
| 22 | Tailstock stroke | 590mm |
| 23 | Tailstock diameter | 110mm |
| 25 | Tailstock taper | MT5 |
| 26 | positioning accuracy X/Z | 0.019/0.029mm |
| 27 | repositioning accuracy X/Z | 0.005/0.005mm |
| 28 | Overall dimensions of machine | 2550x2100x1850mm |
| 29 | Case dimensions of machine | 2650x2250x2280mm |
| 30 | Net weight /gross weight of the machine | 4000/4300kg |
1. In the design stage, FEA technology is used to simulate and analyze changes under various working conditions, realistic complexity and high rigidity design;
2. The class type 30° inclined bed is used to increase the bottom area, maximize the rigidity of the machine tool, and improve the comprehensive cutting performance.
3. The X axis of the structure adopts high rigidity roller guide rails to improve vibration damping and dynamic rigidity;
4. Z-axis adopts 45 large specifications and high rigidity roller guide rails to improve machine stability and dynamic response;
