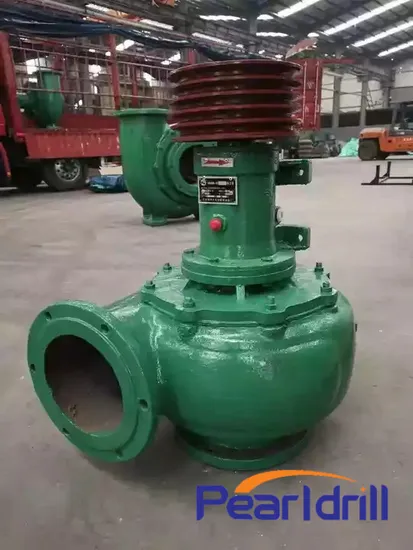

Sand Suction Pump River Sand Sucking Pump River Pump 6 Inch Sand Pump for Dredger

Product Description

Multifunctional sand pump
The pump is an impurity pump designed with reference to the two-phase flow theory, and has been tested and tested by industrial operation. It has the characteristics of high hydraulic efficiency and good wear resistance, and has stable performance when transporting media containing solid particles.
It is suitable for sand pumping, iron ore sand pumping, gold panning sand pumping from rivers, rivers, lakes, seas and reservoirs, mud transportation, tailings slurry transportation in industrial and mining enterprises, slurry slag, power powder, coal ash and other media with strong abrasive properties. It has the advantages of energy saving, wear resistance, corrosion resistance, reliable and stable operation, high lift, large flow, large pumping depth, long conveying distance, wide application range, conveying solid-liquid mixed concentration of 60%, and can be equipped with motor or diesel drive. Product use: pumping water, sand pumping, mud pumping, etc.
Product features: large flow, high power, high lift, wear-resistant and durable, etc.
Application areas: river dredging, mining, sand and silt, land reclamation
Remote Multifunctional Pump Sand Suction Pump Sand Suction Pump Suction Pump Slurry Pump Sand Suction Pump Sand Suction Pump
Technical parameters

Specification	Power	Flux	Pump Lift	Rev	Voltage	Material	Weight
4"	15kw	120 m3/h	32m	1400r/min	380V	Cast iron	115kg
6"	25kw	200 m3/h	30m	1400r/min	380V	Cast iron	146kg
8"	45kw	400 m3/h	28m	1200r/min	380V	Cast iron	287kg
10"	90kw	800 m3/h	26m	1200r/min	380V	Cast iron	446kg
12"	170kw	1200 m3/h	24m	1000r/min	380V	Cast iron	1050kg
14"	400kw	2500m3/h	25m	1000r/min	380V	Cast iron	1500kg
16"	500kw	3000m3/h	25m	1000r/min	380V	Cast iron	2000kg

Application site Product advantages
1. Wear-resistant and durable: stronger, more wear-resistant, and longer service life
2. Strong motor: stable operation, strong power, high efficiency and low noise, stable operation saves time and effort
3. Low noise: Reasonable operating structure, good coaxial performance of the pump, and low noise.
Packaging display Container Shipping
