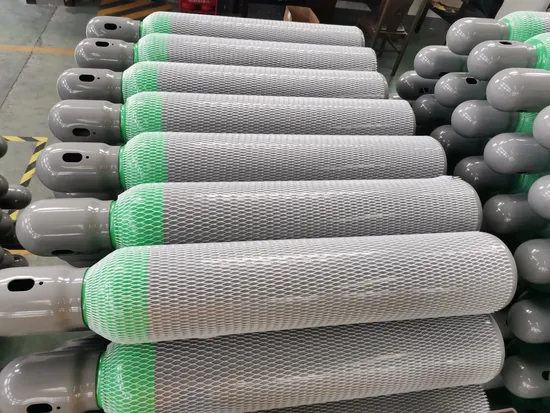

2L 10L Argon Helium CO2 Oxygen Nitrogen Gas Cylinder/Oxygen Cylinder

Product Description

Products Description

All the products will be inspected by TUV auditor and be with TUV inspection certificate.

ISO 9809-1 Seamless Steel Gas Cylinder
Serial number	Type	Outside diameter(mm)	Working pressure (Bar)	Test pressure (Bar)	Material	Bottom Type	Design wall thickness(mm)	Water Capacity(L)	Height (mm)	Weight (kg)	Certificate
1	103.5-2.3-250	103.5	174 (PED) 166.7(TPED)	250	34CrMo4	Concave	2.0	2.3	380	3.1	PED TPED
2	103.5-3.0-250							3.0	475	3.8
3	103.5-4.5-250							4.5	670	5.3
4	103.5-2.3-250	103.5	174 (PED) 166.7 (TPED)	250	34CrMo4	Convex	2.0	2.3	380	2.8	PED TPED
5	103.5-3.0-250							3.0	475	3.5
6	103.5-4..5-250							4.5	670	5.0
7	104.5-2.0-315	104.5	216 (PED) 210 (TPED)	315	34CrMo4	Concave	2.5	2.0	340	3.4	PED TPED
8	104.5-2.67-315							2.67	430	4.1
9	104.5-4.0-315							4.0	605	5.6
10	104.5-2.0-315	104.5	216 (PED) 210 (TPED)	315	34CrMo4	Convex	2.5	2.0	340	3.1	PED TPED
11	104.5-2.67-315							2.67	430	3.8
12	104.5-4.0-315							4.0	605	5.3
13	116-3.0-250	116	174 (PED) 166.7 (TPED)	250	34CrMo4	Concave	2.18	3.0	380	3.9	PED TPED
14	116-5.0-250							5.0	600	5.6
15	116-7.5-250							7.5	860	7.6
16	116-3.0-250	116	174 (PED) 166.7 (TPED)	250	34CrMo4	Convex	2.18	3.0	380	3.7	PED TPED
17	116-5.0-250							5.0	600	5.4
18	116-7.5-250							7.5	860	7.4
19	117-2.67-315	117	216 (PED) 210 (TPED)	315	34CrMo4	Concave	2.78	2.67	360	4.4	PED TPED
20	117-5.0-315							5.0	600	6.6
21	117-7.5-315							7.5	860	8.9
22	117-2.67-315	117	216 (PED) 210 (TPED)	315	34CrMo4	Convex	2.78	2.67	360	4.1	PED TPED
23	117-5.0-315							5.0	600	6.3
24	117-7.5-315							7.5	860	8.6

Serial number	Type	Outside diameter(mm)	Working pressure (Bar)	Test pressure (Bar)	Material	Bottom Type	Design wall thickness(mm)	Water Capacity(L)	Height (mm)	Weight (kg)	Certificate
1	136-4.5-250	136	174 (PED) 166.7(TPED)	250	34CrMo4	Concave	2.56	4.5	425	5.4	PED TPED
2	136-6.0-250							6.0	540	6.6
3	136-7.5-250							7.5	655	7.8
4	136-9.0-250							9.0	770	9.1
5	136-4.5-250	136	174 (PED) 166.7(TPED)	250	34CrMo4	Convex	2.56	4.5	425	5.0	PED TPED
6	136-6.0-250							6.0	540	6.2
7	136-7.5-250							7.5	655	7.4
8	136-9.0-250							9.0	770	8.7
9	137-4.0-315	137	216 (PED) 210 (TPED)	315	34CrMo4	Concave	3.26	4.0	390	5.8	PED TPED
10	137-5.33-315							5.33	490	7.1
11	137-6.67-315							6.67	590	8.4
12	137-8.0-315							8.0	690	9.7
13	137-4.0-315	137	216 (PED) 210 (TPED)	315	34CrMo4	Convex	3.26	4.0	390	5.2	PED TPED
14	137-5.33-315							5.33	490	6.5
15	137-6.67-315							6.67	590	7.8
16	137-8.0-315							8.0	690	9.1
17	154-4.5-250	154	174 (PED) 166.7(TPED)	250	34CrMo4	Concave	2.89	4.5	350	5.9	PED TPED
18	154-7.5-250							7.5	530	8.1
19	154-10.0-250							10.0	675	9.9
20	154-15.0-250							15.0	970	13.5
21	154-4.5-250	154	174 (PED) 166.7(TPED)	250	34CrMo4	Convex	2.89	4.5	350	5.6	PED TPED
22	154-7.5-250							7.5	530	7.8
23	154-10.0-250							10.0	675	9.6
24	154-15.0-250							15.0	970	13.2
25	156-4.5-315	156	216 (PED) 210 (TPED)	315	34CrMo4	Concave	3.71	4.0	350	6.9	PED TPED
26	156-6.67-315							6.67	480	9.0
27	156-10.0-315							10.0	675	12.0
28	156-15.0-315							15.0	970	16.6
29	156-4.5-315	156	216 (PED) 210 (TPED)	315	34CrMo4	Convex	3.71	4.0	350	6.4	PED TPED
30	156-6.67-315							6.67	480	8.5
31	156-10.0-315							10.0	675	11.5
32	156-15.0-315							15.0	970	16.1

Product quality assurance:
Raw material spectrom analysis, hardness test,yield strength test, tensile strength test,nondestructive examination(NDE)(magnetic powder inspection,ultrasonic flaw detection),hytrostatic test,burst test,impact test.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
Company Profile
Shaoxing Ruiying High Pressure Vessel Co., Ltd. was one professional steel and aluminum gas cylinders manufacturer with the ability of research, development, sales and production capacity of 700000 pcs per year.

As an ISO-9001 certified manufacturer, products obtained PED/TPED CE certification, American DOT certification, German TUV safety certification and Australian market certification.
Customer satisfaction is our highest goal, quality is the most important principle guiding our work. Automated production equipment, professional inspection tools guarantee the safe and reliable product performance.
We will continue to enhance our competitive advantages with our "Excellent quality; diligent pursuit" philosophy through a position of strength, innovation, and partnership with our customers.
~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~~
company culture
Cooperation and win-win make business more friendly and sustainable, caring and teaching for employees to experience love and responsibility.
FAQ

1.Min order quantity?
Q:What's your min order quantity?
A:100PCS
2.Delivery Time?
Q: What is the delivery time of the gas cylinders ?
A: 10Days to 30Days once deposit received and specifications confirmed about the cylinder.
3.Certification?
Q:What certificates do you provide for gas cylinders?
A:We are authorised by PED/ISO/ DOT/ GB / TPED standards.
4.Sample?
Q: How can I get the sample? What's the lead time?
A: Samples could be sent within two week, the lead time is 15-30 days.
5.Technical consultation ?
Q:Can you provide some techincal questions?
A:We would like to supply helpful solutions for all kinds of technical consultation,project design and market application.
