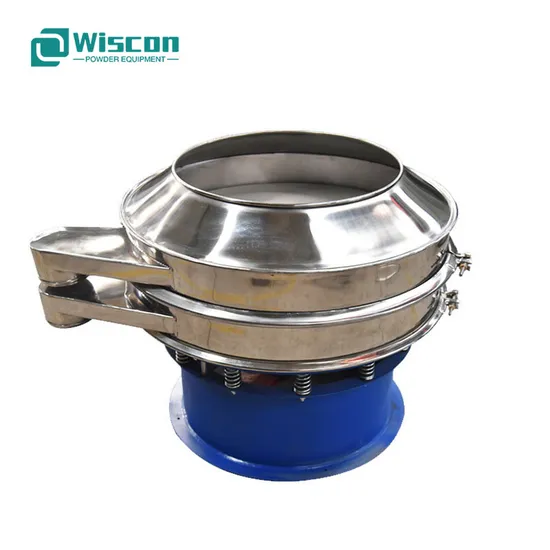

Fish Waster Water Rotary Vibrating Sieve Shaker Screener

Product Description

Product Description Product Description
The circular vibratory screener is a versatile and high-precision fine powder gyratory separator, which is typically applicated in bulk
solids and slurries grading, scalping de-dusting, and filtering. It provides economical and high-precision solutions to numerous materials.
Applicable Materials
- Solid scalping and sifting:
Pharmaceutical powder, Flour, starch, sugar, daily powder, spices, sugar, instant coffee granules, cocoa powder, lactose, grain,
metal powders, casein, detergents, abrasives, resin, PVC compound, etc.
- Solid classifying and separating:
cocoa powder, tea powder fish meal, grain, seeds ground coffee pharmaceutical granules and intermediates, animal feed,
abrasives, biological agents, resin, additives, silicon carbide, calcium carbonate, ash, gluten, pigments, plastic compounds cellulose,
ceramic powder, metallurgy powder, polymer, aluminum powder, refractory material, etc.
- Liquid gravity filtering:
Fruit juices, fish, soybean oil - latex, paint, catalyst, pulp and paper, carpets,
animal blood, ceramic, kaolin, metallurgy, pharmaceuticals, etc.
Working Principle
The rotary vibratory separator generates three-dimensional motion that enables the screening of fine & ultra-fine particles. The driver
eccentric moves because of a vertical vibration motor. It revolves rapidly with a centrifugal force that stimulates a sieve to move circularly.
The materials on the sieve receive the impulse so that the sieve provides a throwing movement on screening surfaces. The undersized
materials pass through the screen mesh while oversized frictions move outwards in a circular pattern & are discharged from the outlet.
Materials moving pattern and retention time can be adjusted by the vibrator weight phase.
Product Features The ultrasonic anti-blinding System is designed using an ultrasonic transducer attached to a frame. The frame delivers a high
frequency, low amplitude ultrasonic vibration that excites the screen and effectively eliminates the blinding of materials on the
screen deck. Eliminate clogging or blinding of wire mesh.
Product Parameters

Model	Screen Diameters (mm)	Screening surface(m2)	Power (kw)	Mesh Size (mesh)
RS-600	Φ560	0.24	0.55	2~500
RS-800	Φ760	0.45	0.75	2~500
RS-1000	Φ930	0.68	1.1	2~500
RS-1200	Φ1130	1	1.5	2~500
RS-1500	Φ1430	1.6	2.2	2~500

Noted: Up to 3 decks and 4 fractions and Separate particles down to 500 mesh.
Product Details Features and Benefits
-Up to 3 decks and 4 fractions can be achieved simultaneously
- with the dust-free operation and Separate particles down to 500 mesh.
- Anti-blinding bouncing ball, rotary brush, and ultrasonic device.
- Ultrasonic anti-blinding systems supply high-precision fine screening
- Design, Construction and Finish to food and Pharmaceutical Specifications
- Round and compact design with flexible outlet positioning
Optional Features
- Flexible fitting tightly connected to the upstream and downstream equipment-
- Quick clamps for quickly removing and easily installation
- ATEX compliant explosion-proof motor is available.
- FDA approved rubber and plastic materials for sanitary standards
- Wire mesh and perforated plate for different applications.
- Inlet and outlet ports can be tailored to fit into the production line.
Build Materials and Finish
- SS304 Stainless steel with contact parts for standard design.
- SS306L stainless steel for the highly corrosion-resistant products.
Why us Wuxi Wiscon mechanical and Electrical Equipment Co., Ltd. is an integrated company specializing in powder production for the food,
pharmaceutical, chemical, and biological industries since 2016.
Main products categories cover the following equipment:
a. Drying Equipment: rotary atomizer spray dryer, pressure nozzle spray dryer, tray drying oven.
b. Powder Mixer: Conical Screw mixer, Ribbon mixer, Ploughshare Mixer, V-shaped mixer, and Double cone mixer for bulk materials.
c. Vibration Screener: Rotary vibratory Screener, Tumbler Screening Machine, and Centrifugal shifter for fine powder separation.
d. Grinding Machine: Universal Mill, Air Classified Mill for food and Pharmaceutical.
e. Granulating Equipment: High Shear Mixer Granulator and Fluid Bed Granulator
f. Vacuum conveyor: Pneumatic vacuum Feeder for BIC, Bagging machine, powder mixer, sieve, etc.
FAQ Questionnaire for circular vibratory screener
In order to quote you the right circular vibratory screener price, Please specify as much information as possible
- What are the materials to be handled
- Are you processing liquid or dry powders
- What's the task of your process? check, scalp, dewatering shifting, or grading?
- What is the particle size distribution of the raw materials?
- What is the bulk density of raw materials?
