Hot Selling PE/HDPE Pipe Extrusion Machinery Water Supply Pipe Production Line

Product Description

Characteristics · Capacity: single screw extruder, high speed, suitable to process PE/PP/HDPE resin with high capacity; · Adopts reasonable design, absorbing safe producing technology, acquiring CE & ISO certificate.
1.Reliable Gnord gear box 2.Bi-metallic screw and barrel
3.Inovance Servo
4.Walthmac Gravimetric
5.Air cooling for mould
6.Water temperature control automatically
7.Water level control automatically
8.Reliable rubber block puller
9.Reliable cutter controlled by PLC
10.Siemens brand motor and electrical part
11.Pipe Range:20-110mm
12.In Stock

Extruder

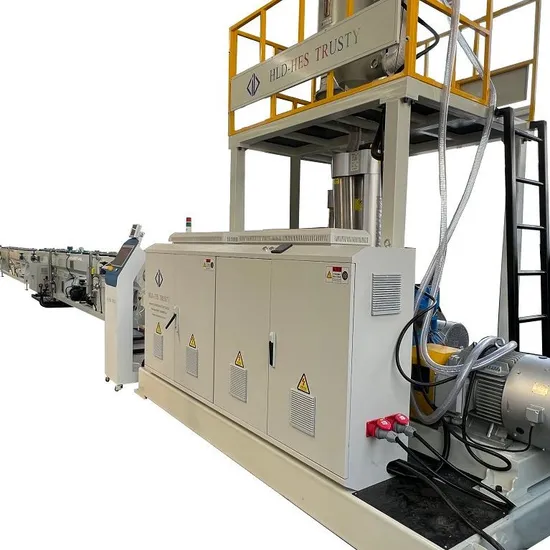

Single-screw extruder is equipped with gravimetric system, automatic feeder and vacuum dryer and controlled by SIEMENS PLC control system.
Mould
1.Pipe diameter: 20mm-110mm
(According to customers' requirement)
2.Sizing unit:20mm,25mm,32mm,40mm,50mm,63mm,
75mm,90mm,110mm etc.
3.Sizing unit material: Copper alloy steel
Vacuum spray water tank
The vacuum calibration tank is advanced in design, it has the advantages of high output, good plasticizing,low energy-consumption and environmental-friendly.
Spray water tank
1.Tank effective length: 9 m*2
2.Tank Raw material: #304 stainless steel
3.With7.5KW Water Pump*2
Hual off
The haul-off machine has different claw number, we have two claws. three claws and so on, it depends on the diameter of the pipes.
Cutter
The cutting machine has different types, such as planetary cutter, knife-lifting cutter and no-dust cutter, etc. This unit is reliable and has high production efficiency.The cutting machine selected from stock is as shown in the picture
Machine Introduction HDPE series plastic pipe production line is mainly used for producing pipe of waster supply and drainage in the field of agriculture and construction etc. This machine consists of extruder, mould, vacuum calibration tank, haul off unit. Cutting unit, stacker etc. The single screw extruder and haul off unit apply famous A/C frequency conversion speed regulation device, both vacuum pump and water pump apply famous brand. The haul-off unit includes two-claw type, three-claw type, four-claw type, six claw type,eight-claw type, ten-claw type,
twelve-claw type etc. Dust free cutting machine, saw blade cutting machine or planetary cutting machine can be applied, the property of machine group is reliable. The production efficiency is high with special device. It can also produce PP, PE, ABS, PPR, PEX, Silicon core pipe etc. The planetary cutting machine is controlled automatically with computer, it has such advantages of simple operation, reliable
performance etc. It has reached international advanced level.

Model	Extruder	Pipe Range (mm)	Capacity (kg/hr)	Main Motor Power (kw)	Total Power (kw)	Line Length (m)
TPM -63	SJ65/33	16-63	120-180	45	110	28
TPM -110	SJ65/33	16-110	150-200	55	130	28
TPM -160	SJ75/33	150-160	180-220	75	150	30
TPM -250	SJ75/33	75-250	280-350	90	280	30
TPM -315	SJ90/33	110-315	300-400	132	350	36
TPM -450	SJ90/33	160-450	350-450	160	400	42
TPM -630	SJ120/33	315-630	550-850	200	550	45
TPM -800	SJ150/33	450-800	800-1200	250	650	45
TPM -1200	SJ120/33 90/33	710-1200	1000-1500	285	800	48
TPM -1600	SJ120/33 120/33	800-1600	2000-3000	500	1200	48

Product application
PE pipe extrusion line application description: This Extrusion Line can be used for different diameter PE Pipe production which have excellent stiffness and flexibility, heat resistance, aging resistance, high mechanical strength, resistance of environmental stress cracks, resistance to creep deformation, heat-linkage, and so on. So, this pipe production line is a preferred for duct work system of gas, water pipe and agricultural irrigation pipe between city and village.
