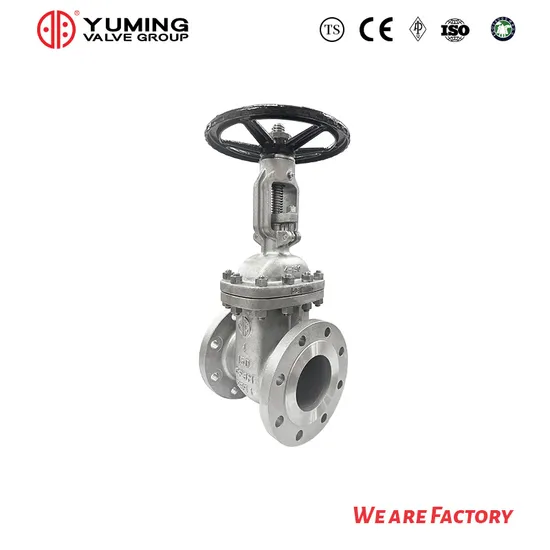

API Stainless Steel Rising Stem Gate Valve CF8/304

Product Description

Product Description Specifications1.gate valve design DIN 3352 F52.Rising/Non-rising stem3.Rubber encapsulated wedge4.Clockwise closing direction
Product FeaturesLow torque operationRubber encapsulated wedgeClockwise closing directionFusion bonded epoxy coated inside and outsideProduct Advantage1.The body is ductile iron,high level than national stanard.Tensile strength is 450Mpa,elongation is large than 10%,can not be broken easily when transport.2. Both inner and out part is epoxy coating, the thickness is 250μm minimum,can prevent rust well,can be used in sewage system. 3.The wedge is coated with EPDM, the EPDM proportion can reach 50%,steable and good resilient.4. 3 O rings are used on 2Cr13 stem,can reduce friction,prevent leakage,can change sealing ring with stop water.5.The stem use brass, operate easily,prevent block.6.Every link, from workblank to the finished product packaging will be inspected strickly.Standard TestShell testThe cold test of the valve body, which is connected with the valve body and the valve cover, is carried out to test the structural strength, pressure resistance and compactness of the valve housing, including the whole housing in the fixed connectionClosure testTest of sealing performance between valve opening and closing parts and seat seal, between valve body and valve seat.Test pressureThe display pressure of the valve lumen during the experimentTest fluidLiquid or gas for pressure test of valvesTest fluid temperatureThe temperature of the liquid or gas used for the pressure test of the valve shall be in the range of 5-40 unless otherwise specifiedResilient seatsSeals made of non-metallic elastic materials, solid and semisolid lubricants, etc.
Product Parameters

Stem	Stainless steel	8	Bonnet bolt	Stainless steel A4, sealed with hot melt
O-ring	NBR rubber	10	Wedge nut	Brass
Bearing	Polyamide	11	Wedge	Ductile iron+ EPDM
Bonnet	Ductile Iron	12	Body	Ductile Iron
Thrust collar	Brass, DZR CW602N	13	Wedge shoe	Polyamide
Manchette	EPDM rubber

DN mm	Flange drilling	L mm	H mm	H3 mm	F mm	F1 mm	F2 mm
40	PN10/16	240	200	263	14	16	30
50	PN10/16	250	209	292	14	16	30
65	PN10/16	270	243	336	17	20	34
80	PN10/16	280	282	382	17	20	34
100	PN10/16	300	319	429	19	22	34
125	PN10/16	325	346	471	19	22	34
150	PN10/16	350	403	493	19	22	34
200	PN10/16	400	490	660	24	28	34
250	PN10/16	450	664	864	27	31	47
300	PN10/16	500	740	968	27	31	47
350	PN10/16	550	947	1207	32	37	55
400	PN10/16	600	959	1249	32	37	55
450	PN10/16	650	958	1278	32	37	55
500	PN10/16	700	958	1316	32	37	55

Detailed Photos
