Customizable Industrial Detergent Powder Mixer Horizontal Ribbon Mixer

Product Description

Stainless steel U-type mixer is a kind of machine to mix two or more powdery materials evenly, Its driving spindle is arranged with double-layer screw blades, the outer blades convey the materials to the center, and the inner blades convey the materials to the outside.The motor and the mixing spindle are directly connected through the cycloid reducer. It is suitable for solid-solid (i.e. powder and powder)mixing in food, chemical industry, feed, ceramics, refractory puttypaste, real stone paint, dry powder, putty and so on.

Detailed display

Schematic diagram of the whole machine
Stainless steel U-type mixer with screw conveyor can mix and convey materials efficiently and is suitable for production in many industries. JZQ reducer
High gear transmission efficiency, can effectively transfer the power of the motor to the working machine,improve work efficiency. Pneumatic butterflyvalve discharge port
Pneumatic butterfly valves can achieve flow control by adjusting the valve opening. pneumatic butterfly valves have a high degree of automation.
Reinforced through shaft
Higher strength and rigidity,able to withstand greaterloads and have a longservice life.

Product Parameters

Double Screw Belt Mixer Parameter Information
model number	cylinder L W H (mm)	synthesis L w H(mm)	motor power(kw)	effective mixing volume(L)
HDJX-100	875*500*525	1780*559*912	1.5/2.2	170
HDJX-200	1150*600*695	2016*724*1249	3	430
HDJX-300	1320*760*790	2298*846*1424	3	580
HDJX-500	1550*850*900	2563*958*1624	5.5	880
HDJX-1000	1890*1050*1200	3500*1158*1950	7.5	1600
HDJX-2000	2200*1250*1450	3900*1400*2350	11.5	2700

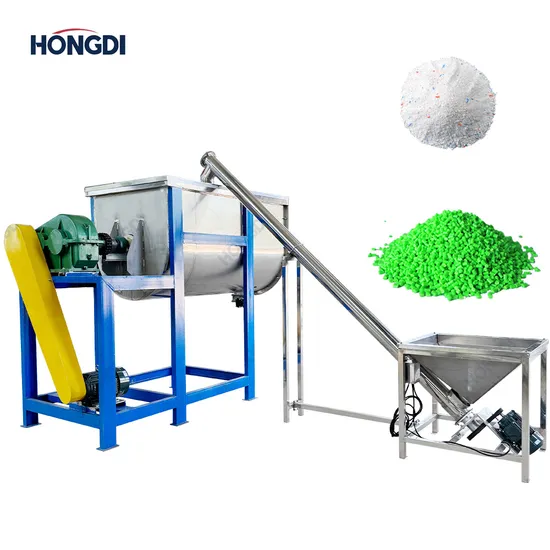

Product photos

FAQ

Q 1: Where is your factory located?
A 1: Our factory is located in Zhengzhou, China. If you have travelling plans, we warmly invite you to visit our factory.
Q 2: Why do you choose your products?
A 2: We have 15 years of professional production experience, professional team and advanced equipment. Product quality is guaranteed and price is favourable.
Q 3: After receiving the machine, is there any installation instruction? How long is the warranty period?
A 3: Yes, we have a professional after-sales team that will promptly solve any problems you encounter during installation and production. We provide one year warranty service.
Q 4: What are the transport methods for the goods?
A 4: The common transport modes are sea transport, air transport, land transport, etc. You need to choose the suitable transport mode according to the nature of the goods, quantity, delivery date and other factors.
