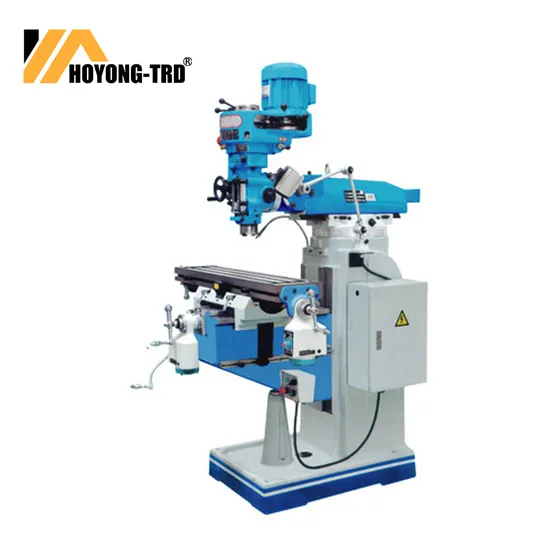

X6325 Top Sale High Quality Universal Milling Machine Vertical Horizontal Turret Milling Machine
| US$3,000.00-4,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
X6325
Type
Knee Type Milling Machine
Object
Metal
Structure
Ram
Milling Cutter Type
Vertical Milling Cutter
Milling Cutter Structure
Indexable Type
Controlling Mode
Artificial
Automatic Grade
Manual
Precision
High Precision
Certification
CE, RoHS, ISO 9001
Condition
New
Table Size
254X1370mm
Long Travel(mm)
950mm
Cross Travel(mm)
420mm
Vertical Travel(mm)
420mm
Motor
3.75kw
Transport Package
Plywood Case
Specification
1600kgs
Trademark
HOYONG-TRD
Origin
Shandong, China
HS Code
84581900
Production Capacity
10 PCS/Month
Product Description
TURRET MILLING MACHINE FEATURES:
Feature of X6323
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
Feature of X6325:
Rectangular guide way on Y-axis and Z-axis is feature a good rigidety
The guide way on saddle is lined with TF wearable material
The worktable surface and 3 axis guide way are hardened and precision ground
Feature of X6325D:
Rectangular guide way is adopted both on Y and Z axis.
The guide way on saddle is lined with TF wearable material. Which makes the machine stably and rigidly, also makes it beautiful and easy to operate.
5HP milling head motor and quill diameter is 100MM
Feature of X6333
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
Feature of X6330A
Double 55° swallowtail guide way is adoped on both Y, Z-axis, so it is easy to adjust and repair.
Adopted strengthen rib on both ides of the column that makes the machine rigidly and beautiful.
SPECIFICATIONS:
| MODEL | X6323A | X6325 | X6325D | X6333 | X6330A | |
| Table size | 230*1067 230*1246 | 254*1270 254*1370 | 254*1270 254*1370 | 330*1370 330*1500 | 305*1370 305*1500 | |
| Long travel(mm) | 650 840 | 850 950 | 850 950 | 840 1000 | 870 1000 | |
| Cross travel(mm) | 305 | 420 | 420 | 368 | 380 | |
| Vertical travel(mm) | 350 | 420 | 420 | 450 | 430 | |
| T-slot No.and size(mm) | 3x16 | |||||
| Ram travel(mm) | 315 | 470 | 470 | 500 | 500 | |
| Distance from spindle nose to table surface(mm) | 0-350 | 0-405 | 0-405 | 0-450 | 0-350 | |
| Spindle hole taper | Standard:R8 | standard:ISO40 | ||||
| Spindle travel(mm) | 127 | |||||
| Spindle speed(r.p.m) | standard: shift grade 16, 50HZ 65-4500,60HZ80-5440 | |||||
| optional:variable:60-4200 | ||||||
| Auto.quill feed | Three steps:0.04/0.08/0.15mm/revolution | |||||
| Spindle motor | 2.25kw/3hp | 2.25kw/3hp | 3.75kw/5hp | 3.75kw/5hp | 3.75kw/5hp | |
| Head swivel | 90° | |||||
| Head tilting | 45° | Fix | ||||
| Dimension of package | 1400x1476x2030 | 1516x1550x2080 | 1516x1550x2080 | 1800x2016x2180 | 1566x1650x2080 | |
| G.W/set | 1100 | 1550 | 1590 | 2300 | 1750 | |
