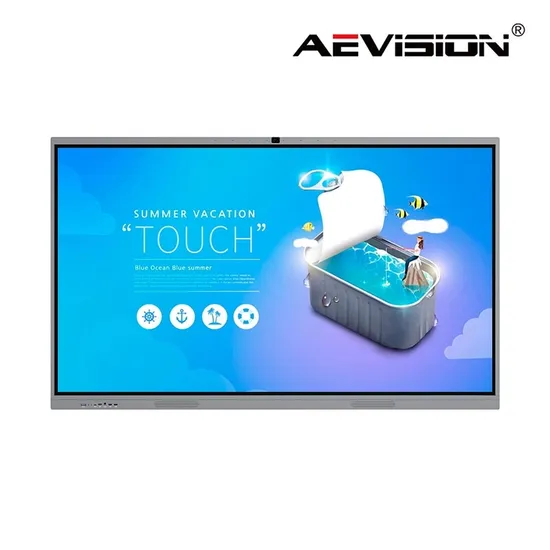

Full HD 4K 75′′ LED Interactive Touch Panel

Product Description

Smart Interactive Whiteboard Specially designed for meetings or education, what are the functions of the interactive smart board?
1. Touch writing: support multi-touch, whether you use a stylus or a finger, you can write smoothly on the whiteboard.
2. Remote meeting: Built in the video conference module, the interactive smart baord can transmit real-time
meeting scenes in real time, without delay.
3. Multi-person interaction: touch and write with your fingers or a touch pen, and multiple people can
write and mark at the same time
4. One-click screenshot: The one-click screenshot function of the conference all-in-one whiteboard, whether in the browser or PPT,
you can use the screenshot tool, save the picture, and save the learning points at any time
5. Dual system operation: Supports both Android and Windows OS.
6. Scan code to share: save the file and generate a QR code, scan it with your mobile phone.
7. Size options including 55'', 65'', 75'', 85'', 98'' and 100''.
Product Parameters

75-inch parameters and specifications
Size	75"
Bare metal size	1953.3 (length) x 1151.42 (height) x 93.0 (thickness) mm
Package Size	2101 (length) x 1338 (height) x 220 (thickness) mm
Display area	1895.04(H)×1065.96V) (mm)
point distance	0.105 mm x 0.315 mm
best resolution	3840*2160
brightness	350cd/m2
Contrast	1200:1 (Typ.) Transmission
Viewing angle	178°,178°
Response time	6.5ms
Display color	8 bit/16.7 Billion
Backlight	DLED
Screen life	50000 hours
power	≤380W
Operating Voltage	100V-240VAC,50/60Hz
speaker	8Ω15W*2
Net weight/gross weight	Estimated 85/95kg

2. Android system parameters:

Android System parameters	Processor	Amlogic T982
	GPU	ARM Mali-G52 GPU
	CPU	Cortex-A55 CPU
	Memory	DDR4 4G
	SSD	32G
	system version	Android 11.0
	OSD language	Chinese, English, multiple languages can be customized
	front port	USB2.0*2
	Function port	HDMI *2, USB 3.0*1, USB 2.0*1, RS232 *1, RJ45 IN *1, TOUCH*1, AV IN*1, AV OUT*1, EARPHONE*1, MIC IN*1,
	WIFI	compatible 2.4G+5G

3. OPS computer parameters

Ops parameters	CPU	Intel I3/I5/I7 (optional)
	Graphics card	Intel CPU integrated graphics
	Memory	4G DDR3/DDR4 (optional)
	harddisk	SSD:128G/120G
	network card	Realtek 8111F Gigabit network card
	I/O interface	2*USB2.0 port 2*USB3.0 port 1*VGA port 1*COM port 1*HDMI port 1*RJ45 port 1*WIFI antenna 1*Earphone-OUT port 1*MIC-IN port 1*POWER button
	system	Support Windows 7/Windows10

4. Built-in camera and microphone parameters

Built-in camera	Image Sensor	HD camera
	Pixel	≥13 million pixels (optional 48 million pixels)
	Lens specifications	Wide angle fixed focus
Built-in array microphone	audio processor	The built-in microphone uses a quad-core digital processing chip
	8 array microphone	Adopts DSP core, supports 8 analog/digital MIC inputs, and high-performance echo cancellation (AEC) function
	Stereo output	High signal-to-noise ratio, low noise level 3uvrms, providing high-fidelity audio output

Application scenarios

Company Profile
Guangzhou Aevision Electronics Technology Co. Ltd, was founded in 2008 and is headquartered in Liandong U Valley Technology Headquarter, xicheng Middle Street,nanwan Village, Huangpu District, Guangzhou. It is adjacent to the science city-Dawan District Intelligent Manufacturing Innovation Center. Currently, it focuses on the research and development of audio and video codec products, production and sales of full range display equipment, incubation of innovative automated electromechanical integration eguipment a comprehensive industrial conglomerate with intelligent building construction business as its core entity.
FAQ

Are you a factory or trading company? We are a TRUE OEM/ODM factory. Please kindly read our COMPANY PROFILE, for more information can be found on it. What're your payments ? We accept most of payment methods: VISA,T/T,Western Union,Paypal and Cash... What about the package ? Standard case or carton, also support custom wooden boxes. How long is the warranty ? According to international standards, products in standard operation is 1 year,except wearable parts. How product quality and service? Our monitors have CE,FCC,RoHS,etc certificate, quality assured, can accept OEM, provide various personalized needs. The defect rate of the product? We are all Grade A panels, and the defect rate is strictly controlled at three thousandths. Which countries are the products exported to, and in what form? Southeast Asia, Middle East, Europe, North America. Mainly OEM, some countries also promote our own brand AEVISION.
