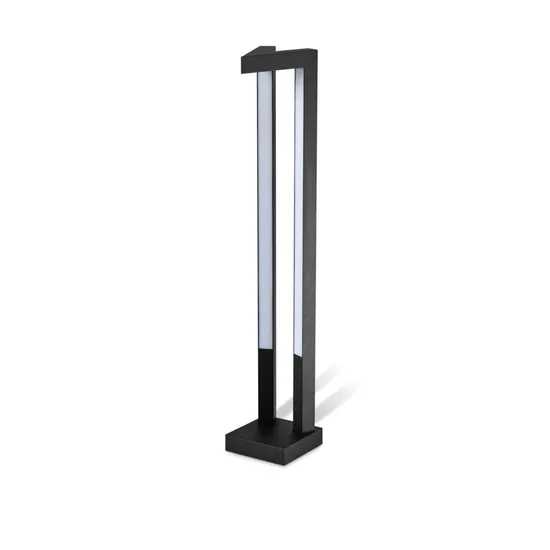

LED Lawn Light Garden Pole Pillar Lamp Waterproof Pathway Post Bollards Light

LED Lawn Light Garden Pole Pillar Lamp Waterproof Pathway Post Bollards Light

US$45.00-100.00 10 Pieces (MOQ)

Basic Info.

Model NO.
BW1156
Lamp Body Material
Aluminum
Lighting Area
10-15m^2
Power
10-30W
Technics
Drawbench
Warranty
3 YEARS
IP Rating
IP65
Certification
CCC, CE, CQC, EMC, LVD
Voltage
240V
Light Source
With Light Source
Product Capacity
1000 Sets/Month
LED Brand
CREE / Bridgelux / Epistar
Fixture Finish
Grey / Black
Power Factor
>0.8
Switch/Protocol
on-off / 1-10V / Triac
Transport Package
40*80*800mm
Specification
40*80*800MM
Trademark
LUMINCONNECT
Origin
China
HS Code
9405409000
Production Capacity
10000pieces/Month

Product Description

Our Advantages Extruded aluminum and die-cast aluminum housing with high corrosion resistance.
DuPont outdoor electrostatic powder coating.
304# stainless steel fastness parts. 4mm thickness tempered glass.
High purity aluminum heat conduction piece.
Fire-resistant silicon seal gaske
Product Description
ELECTRICAL



PHYSICAL


Power Consum.

10W

Dimension(mm)

114*82*H40MM
LED brand

CREE / Bridgelux / Epistar

Main Material

Aluminum
C.R.I.

>80Ra

Fixture Finish

Grey / black
Color temp.

3000K / 4000K / 5700K / 6500K

OPTICS


Lumen output

50lm/W @ 6500K

Beam Angle

120°
Life maintenance

>30,000 hours

Reflector/Diffuser

PMMA
Input voltage

220-240V AC, 50Hz

SAFETY &PROTECTION
Power factor

>0.8

Ingress Protection

IP54 / IP65
Switch/Protocol

ON-OFF / 1-10V / TRIAC

Warranty

3-5 years
Product Parameters
Item NO#
Power
Lumen output
Dimension(mm)
Input
Voltage
Beam
angle
LED
color
Interface
BW1156
20W
1000lm @6500K
40*80*H800MM
220-240Vac 50/60Hz
120°
3000K 4000K 5700K 6500K
ON/OFF
PWM
TRIAC
0/1-10V
BW1157
30W
1500lm @6500K
140*150*H795MM
BW1158
40W
2000lm @6500K
165*214*H1000MM
BW1159/60
10W / 28W
500lm / 1400lm @6500K
82*114*H400/900MM
BW1172
13W
650lm @6500K
250*65*H800MM
BW1173
10W
500lm @6500K
250*100*H1000MM
BW1174
12W
1000lm @6500K
100*H450MM
BW1175/6
18W / 24W
900lm / 1200lm @6500K
120/150*H700/800MM
Installation Instructions
