Vmc 850 High Rigidity Heavy-Duty Vertical Machining Center
| Negotiable | 1 Piece (MOQ) |
Basic Info.
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Mid-Range CNC Machine Tools
Certification
ISO 9001
Condition
New
Transport Package
Seaworthy Packing
Specification
5600*3600*3150mm
Trademark
Gromax MACHINING
Origin
Changshu, Jiangsu, China
Production Capacity
1500 Sets/Year
Product Description
Product Description| Mechanical Specification Sheet | ||||||||||
| Specification | Unit | Grm-640V | Grm-650V | Grm-850V | Grm-960V | Grm-1060V | Grm-1160V | Grm-1370V | Standard Configuration | |
| Worktable | Mitsubishi M80B System | |||||||||
| Worktable Size | mm | 700x400 | 760X450 | 1000x550 | 1060X580 | 1100X580 | 1240X610 | 1400X700 | Tool Magazine | |
| Worktable Load Capacity | kg | 300 | 500 | 600 | 800 | 900 | 1000 | 1100 | Fully Enclosed Cover | |
| T-Slot Width (Width * Pitch * Nr. of Slots) | mm | 14x100x3 | 18x100x4 | 18x100x5 | 18x110x5 | 18x125x5 | 18x125x5 | Work Light | ||
| Axis Travel | Tri-color Operation Indicator Light | |||||||||
| X-axis Travel | mm | 600 | 650 | 800 | 900 | 1000 | 1100 | 1300 | Coolant System | |
| Y-axis Travel | mm | 400 | 400 | 520 | 600 | 640 | 700 | Spindle Air Blower | ||
| Z-axis Travel | mm | 450 | 450 | 560 | 680 | 680 | 650 | 650 | Automatic Lubrication System | |
| Distance from Spindle Face to Worktable | mm | 80-530 | 150-600 | 120-680 | 110-790 | 110-790 | 120-770 | 120-770 | Electrical Cabinet Heat Exchanger | |
| Distance from Spindle Center to Z-axis Guide Surface | mm | 420 | 500 | 570 | 610 | 650 | 720 | Spindle Air Curtain Dust Protection Device | ||
| Spindle | Cleaning Air Gun | |||||||||
| Speed Range * | rpm | 20000 | 12000 | 12000 | 12000 | 10000 | 10000 | 10000 | Cleaning Water Gun | |
| Spindle Power (S1/S6)* | kw | 3.7/5.5 | 7.5/11 | 7.5/11 | 7.5/11 | 11/15 | 11/15 | 11/15 | Built-in Air Tank | |
| Spindle Torque(S1/S6)* | Nm | 14.1/21 | 35.8/70 | 35.8/70 | 35.8/70 | 52.5/95.5 | 52.5/95.5 | 52.5/95.5 | Spindle Oil Cooler | |
| Spindle Taper * | BT30 | BT40 | BT40 | BT40 | BT40 | BT40 | BT40 | Leveling Screws and Pads | ||
| Spindle Type | Direct Drive | 2G Memory Card | ||||||||
| Feed | Operation and Maintenance Manual | |||||||||
| X-axis Rapid Traverse | m/min | 15 | 48 | 48 | 30 | 30 | 30 | 30 | Tool Box | |
| Y-axis Rapid Traverse | m/min | 15 | 48 | 48 | 30 | 30 | 30 | 30 | ||
| Z-axis Rapid Traverse | m/min | 15 | 48 | 48 | 30 | 30 | 30 | 30 | ||
| Cutting Feed Speed | mm/min | 10000 | 15000 | 15000 | 15000 | 15000 | 15000 | 15000 | ||
| Automatic Tool Change System | Optional Configuration | |||||||||
| Tool Magazine Capacity | set | 20 | 24 | 24 | 24 | 24 | 24 | 24 | FANUC/Siemens System | |
| Maximum Tool Outer Diameter (Full Load of Tools) | mm | 65 | 80 | 80 | 80 | 80 | 80 | 80 | Electrical Cabinet Air Conditioner | |
| Maximum Adjacent Empty Slot Tool Diameter | mm | 120 | 150 | 150 | 150 | 150 | 150 | 150 | Spindle Central Water Outlet and Cooling Device | |
| Maximum Tool Length | mm | 200 | 300 | 300 | 300 | 300 | 300 | 300 | Built-in Electric Spindle | |
| Maximum Tool Weight | kg | 5 | 8 | 8 | 8 | 8 | 8 | 8 | 16000/20000/24000 rpm | |
| Tool Change Time (Tool to Tool) | sec | 2 | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 | 2.4 | Direct Drive Spindle 15000 rpm | |
| Accuracy (VDI3441, JISB6338) | Complete Set Fourth Axis Rotary Table | |||||||||
| Positioning Accuracy | mm | P0.01(±0.004/300) | P0.012(±0.004/300) | Hinged Belt Chip Conveyor | ||||||
| Repeatable Accuracy | mm | Ps0.008(±0.003) | Ps0.01(±0.003) | Oil Mist Collector | ||||||
| Others | Oil-Water Separator | |||||||||
| Power Requirement | Kva | 15 | 15 | 20 | 25 | 25 | 25 | 25 | Rear Flushing Device | |
| Minimum Air Pressure Requirement | kg/cm2 | 6 | 5.5 | 6 | 6 | 6 | 6 | 6 | Automatic Tool Length Measurement | |
| Cutting Fluid Capacity | liter | 250 | 250 | 300 | 300 | 300 | 300 | 350 | Automatic Door Device | |
| Machine Footprint (Length x Width) | mm(Ca.) | 1900x2200 | 2000x2200 | 2400x2350 | 2700x2400 | 2700x2400 | 2900x2600 | 3200x2700 | ||
| Machine Height | mm(Ca.) | 2600 | 2600 | 2750 | 2750 | 2750 | 2830 | 2850 | ||
| Machine Weight | kg(Ca.) | 3000 | 4600 | 5600 | 6300 | 6500 | 7500 | 8200 | ||
| * indicates optional items; please call for specific configuration | ||||||||||
| Note 1: The machine footprint in the table includes the dimensions of the standard configuration chip conveyor. | ||||||||||
| Note 2: Our company reserves the right to change the catalog content and text at any time due to technical requirements. | ||||||||||

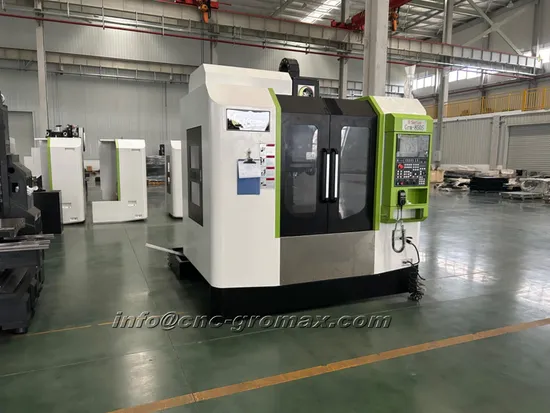

Detailed Photos
Company Profile
Founded in 1985, Gromax Technology Co., Ltd. specializes in the manufacturing CNC machining center. The main markets are in Central and South America. Due to customer needs, the machine assembly base was established in Anhui, China in October 2014, focusing on the development, production, sales and service business of CNC machines. We are dedicated to research and development, following with market demands, paying attention to every aspect of the process, strictly quality control, and striving to cultivate high-standard products in this industry.
