Breeze Wind Solar Integration Power Generation/Solar Power Generation/Autofolding

Product Description

Product Description
Wind-Solar Hybrid Power Generation System Utilizing a Common Base Station with Two Power Generation Methods.
Main Functional Descriptions:

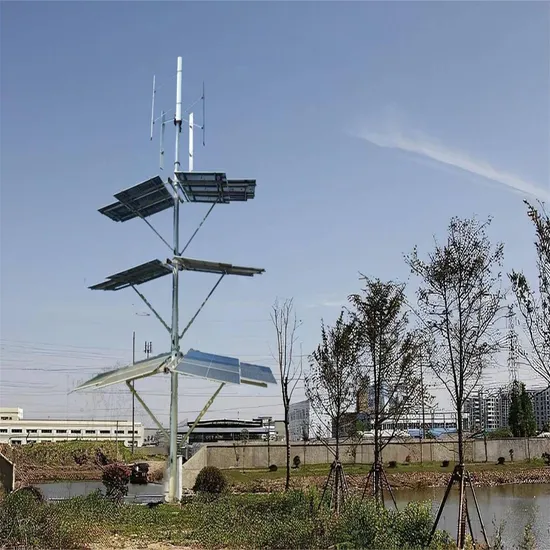

1. The small wind power system and solar tree power generation system are seamlessly integrated: the top of the solar tree is the small wind power system, and below is an automatic folding system supporting a three-layer solar tree structure.
2. The top wind power system uses industry-leading multi-layer blade technology: a multi-blade small wind power system with low startup speed, stable operation, all-weather power generation, and high power generation efficiency.
3. The lower layer of the solar tree is composed of three layers of solar tree leaves, each independently or jointly capable of automatic tracking (east-west directional tracking), automatic folding to avoid strong winds (folds upward in high wind), and automatic unfolding (quickly expands downward).
4. Independently developed intelligent conversion and inverter control system: intelligently converts and stores the alternating current from the wind power and the direct current from the solar.
Application
Applied to various levels of government industrial parks, large manufacturing enterprises, chemical enterprises, intelligent manufacturing enterprises, and a series of high energy consuming and electricity consuming enterprises, as well as enterprises and individuals with independent power generation needs.


Key technical parameters
Power Generation

Item	GFS/FG-30(10+20)KW	GFS/FG-30(20+20)KW	GFS/FG-30(160+20)KW
Small Wind Power
- Total Power (kW)	10	20	160
- Hourly power (kWh)	10	20	160
- Conversion Rate	70%	70%	70%
Photovoltaic Solar Tracking
- Total Efficiency (kW)	20.08	20.08	20.08
- Daily Power (kWh)	20	20	20
- Conversion Rate	80%	80%	80%
Combined Total	30	40	180

Key Parameters

Item	GFS/FG-30(10+20)KW	GFS/FG-30(20+20)KW	GFS/FG-30(160+20)KW
Single Wind Power Generator Parameters
- Power (kW)	10	20	20
- Generator Voltage (V)	48	48	48
- Startup Wind Speed (m/s)	2.5	2.5	2.5
- Rated Wind Speed (m/s)	13	13	13
- Safety Wind Speed (m/s)	35	35	35
- Rated Rotational Speed (rpm)	600	600	600
- Number of Blades	5	5	8
- Blade Diameter (mm)	4200	4200	7200
- Blade Height (mm)	5000	5000	7500
- Blade Swept Area (m²)			16.5
Tree-Structured Photovoltaic Power Station Parameters
- Power (kW)	21.44	21.44	21.44
- Solar Panel Dimensions (mm)	2385*1303*35	2385*1303*35	2385*1303*35
- Power (W/block)	670	670	670
- Total Quantity (blocks)	32	32	32
Configuration Method	6 blocks per group, 4 groups total, 2 groups installed symmetrically. Each group has independent east-west tracking, autonomous day-night folding resembling an umbrella, with automatic folding to avoid strong winds.

Additional Notes:
1	Tracking and folding are completed using four automated push rods with a travel distance of 600 mm and push force of 6000N. Each rod can operate independently.
2	The installation software automates the operation sequence based on each type of power. The program code is independently provided by the designer.
3	A shared grid and storage output system converts the AC from wind power and DC from solar power into a specific unified output.

GFS/FG-30(160+20)KW:
