Factory Sale Horizontal New CNC Lathe Machine Price Ck6136A-2
| US$9,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
CK6136A-2
Processing Accessory
Chuck CNC Lathe
Guide Rail
Horizontal Guide Rail
Tool Holder
Single-tool Holder CNC Lathe
Power Source
Electric
Controlling Mode
CNC
Automatic Grade
Automatic
Setting Mode
Floor-type
Precision
High Precision
Certification
CE
Condition
New
Material
Cast Iron
Place of Origin
China
Processing Type
Metal
X,Z Motor Type
Servo Motor
Power Supply
Three Phase 380V/50Hz
Transport Package
Standard Wooden Package
Specification
CE
Trademark
Crystal
Origin
Shandong
HS Code
8458110090
Production Capacity
25 Sets/Month
Product Description
NOTE: The currency exchange rate fluctuates greatly,please consult customer service for the best price.

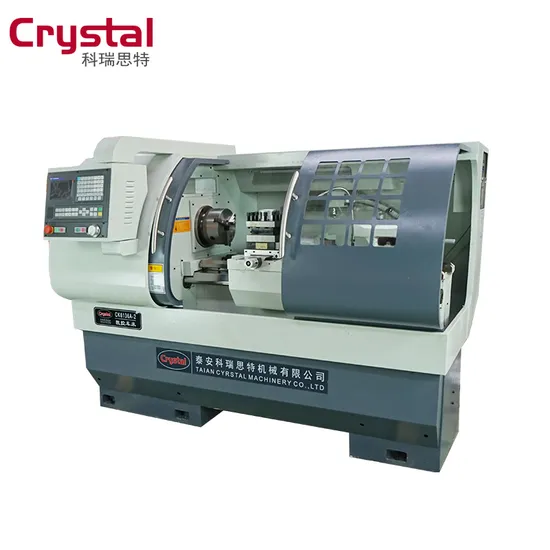

Factory Sale Horizontal New CNC Lathe Machine Price CK6136A-2
Main Features:
1.Frequency conversion stepless speed regulation
2.Higher working efficiency
3.Higher rigidity cast iron
4.Fully enclosed-safety
CK6136A Specification:
| Max. swing over bed | mm | Φ360 |
| Max. swing over cross slide | mm | Φ190 |
| Max. processing length | mm | 500/750/1000 |
| Spindle Taper | # | MT6 |
| Thu-hole dia. of spindle | mm | Φ60 |
| Max. spindle speed | rpm | 150-2500 |
| Chuck size | mm | 200 |
| Spindle motor | kw | 5.5 |
| X/Z axis Position accuracy | mm | 0.01/0.015 |
| X/Z axis repeatability | mm | 0.012/0.013 |
| X/Z axis feed motor torque | N.m | X:4 Z:6 |
| X/Z axis fast feeding speed | Mm/min | X:6 Z:8 |
| Tailstock sleeve dia. | mm | Φ60 |
| Tailstock sleeve travel | # | 120 |
| Tailstock sleeve taper | # | MT4 |
| Tool post type | # | 4 -piece electric tool post |
| Tool bar section | mm | 20*20 |
| Machine dimension (L×W×H) | mm | 1850/2120/2370×1400×1700 |
| N.W | Kg | 1500/1650/1750 |
Standard configuration:
1. System:GSK-928TDL,
2. 3 jaw manual chuck
3. 4 station tool
4. Manual tailstock
5. Lighting system
6. Cooling system
7. Automatic lubrication system
8. 3 phase 380v 50Hz
Optional configuration:
1.Siemens system /Fanuc system
2.Hydraulic chuck/ pneumatic chuck
3.Hydraulic tailstock/ pneumatic tailstock
4.6-piece electric tool post/8- piece electric tool post/ Gang type tool
5.Auto bar feeder
