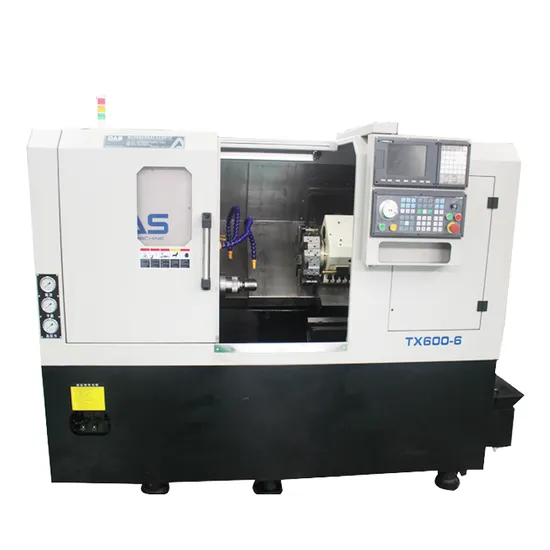

Turret Lathe with Tailstock Tx600-6
| US$37,590.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
TX600-6
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools
Movement Method
Point to Point Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.04~0.05(mm)
Performance Classification
Mid-Range CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Transport Package
Wooedn Case
Specification
2800*1550*1800
Trademark
DAS
Origin
China
HS Code
8458110000
Product Description
| Model | Specification | Brand | |
| Control system | 21TA-E | Taiwan SYNTEC(standard) | |
| Spindle | A2-5(6 inch) | POSA | |
| Spindle motor power | 7.5KW | Syntec | |
| Servo turret | 12 stations | SWIFT | |
Servo motors | X axis | 2.4KW | Syntec |
| Z axis | 2.4KW | ||
Screw | X axis | HIWIN/ PMI | Shangyin/Yintai |
| Z axis | HIWIN/ PMI | ||
Guide Rail | X axis | HIWIN/ PMI | Shangyin/Yintai |
| Z axis | HIWIN/ PMI | ||
Bearing | X axis | NSK | NSK/NSK |
| Z axis | NSK | ||
| High-speed Hydraulic Rotary Cylinder | Hollow | Jing Gong (China brand) | |
| Auto lubrication System | / | Yupu / Deyang /Baoteng | |
| Water Pump | / | Deyang / Mingrui | |
| Item | Unit | Specification |
| Tool installation | / | 12 Stations servo turret |
| Max. swing diameter | m m | ∮520 |
| Max. turning diameter | m m | ∮450 |
| Max turning length | m m | 450 |
| Max. Passable bar diameter | m m | Φ45 |
| Max.number of tools | pcs | 12 |
| Center height of the turret | m m | 80 |
| Spindle nose | m m | A2-5(6 inch) |
| Spindle bore | m m | ∮56 |
| Spindle motor power | k w | 7.5 |
| Spindle speed | r/min | 0-4500 |
| X/Z axis travel | m m | 230/460 |
| X/Z axis motor power | k w | 2.4/2.4 |
| X/Z axis moving speed | m/min | 26/26 |
| X/Z axis repeatablity | m m | ±0.005 |
| Tailstock tavel | m m | 360 |
| Square tool holder size | m m | 25*25 |
| Round tool holder size | m m | ∮25 |
| Hyduralic station motor power | k w | 1.5 |
| Machine power | k w | 16.3 |
| Net weight | k g | 3500 |
| Dimensions(L*W*H) | m m | 2800* 1550* 1800 |
