Laminating Hot Press for Film Faced Shuttering Waterproof Construction Plywood Production

Product Description

Laminating Hot press for Film Faced Shuttering Waterproof Construction Plywood Production

<1> Laminating hot press machine introduction
Lamination hot press is one necessary machine for making film faced plywood and anti slip plywood. Through pressing, make the film paper fixed on plywood surface. Usually film plywood is used for decoration.
Lamination hot press equipped with semi auto infeeder, which can laminating film on both plywood sides at the same time. Therefore, consider its feature, the hot press machine is not suitable to be more layers, at most 10 layers will be better, or you can choose less.
The film hot press machine, each hot platens, with two pieces stainless steel plate and cushion pad.

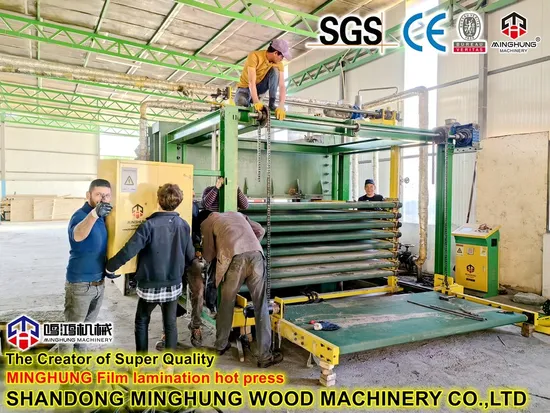

<2> MINGHUNG laminating hot press at clients factory
<3> 10 layers 800ton laminating hot press specification

Name	Laminating hot press
Pressure	800ton
Cylinders	4pcs*320mm
Layers	10
Power	29.5kw
Hot plate size	2800*1450*52mm
Weight	36000kgs

<4> Loading pictures
<5> Related film faced plywood machine
Powerful veneer peeling machine
Glue spreader
