High Efficient Silage Hay Cutter

Product Description

High Efficient Silage Hay Cutter
Introduction of high efficient silage hay cutter
Silage hay kneading machine is suitable for green(dry) sorghum stalk, corn stalk, wheat straw, rice straw, peanut vine, sweet potato vine and other crop straw rubbing processing. The product can be all kinds of crop straw chopped knead until about 3-20 mm, used in breeding cattle, sheep, horse, deer, etc., can also be processed cotton stalk, bark, branche(Dia. below 3 cm), etc., used for papermaking, man-made board, refining ethanol and straw power generation, etc. Straw filamentation rate will generally reach more than 95%.
Advantages of high efficient silage hay cutter
1. Blade and hammer is made of high-quality steel, with super wear-resistant.
2. The final product is soft and no induration, improve the palatability of livestock, so that feed utilization rate of 95%.
3. It adopts a unique feeding roller device, automatic feeding, feeding grass smooth, advance and retreat freely, high production efficiency.
Technical datas of high efficient silage hay cutter

Model	9ZRS-15	9ZRS-10	9ZRS-6	9ZRS-3
Spindle Power(kw)	30	22	11	7.5
Transmission Power(kw)	5.5	3	1.5	1
Spindle Speed(r/min)	2100	1470	2860	2280
Weight(kg)	1210	1100	580	470
Capacity(t/h)	15	10	6	3
Dimension(mm)	3600*1250*1170	3600*930*1240	3000*900*1050	2150*620*1130

Note:
Our company has different types of feed machine, including aquatic feed pellet machine, livesotck and poultry feed granulator, feed crusher, feed mixer, pan grinder, silage hay kneading machine, chaff cutter, etc. We can produce you the suitable machine according to your condition.
The difference between the chaff cutter and the silage hay kneading machine.
Silage hay kneading machine and chaff cutter are two completely different feed processing equipment, whether it is the principle or structure or the effect of final products are different.
1. Structural principle is different
Silage hay kneading machine adopts a number of vertical blade arrangement, the bottom with a small screen mesh, a guillotine and blade; However, chaff cutter adopts a rotating three-blade knife. Inside the kneading machine, the direction of the feed mouth is the same as the direction of rotation of the blade knife. However, the direction of the feed mouth is perpendicular to the direction of rotation of the blade inside the chaff cutter. So the chaff cutter is cut off, and the final product is a piece; the kneading machine is along the straw stems are cut, and they are filamentous.
2. The final product yield is different
The yield of the chaff cutter under the same motor is higher than that of the kneading machine, mainly because the chaff cutter is rough crushed fast; However, Silage hay kneading machine needs to first kneading silk and then crush, the finished product is slim, yield lower than the chaff cutter.
3. Feeding effect is different
The final products of the chaff cutter are pieces one by one, inside the hard stems are still there and the livestock dislike to eat, the residue of the feed is relatively high, is also not conducive to animal digestion and absorption; However, the final product of the kneading machine is filamentous fibers, there is no hard stalk, soft and slender, animals prefer to eat, feed utilization is higher, more conducive to the absorption of nutrients.
Services of high efficient silage hay cutter
Pre-sale Service
1.Offering overall technology and business consultation services;
2.Proposing the most suitable scheme and equipment for our customer;
3.Designing and producting machine according to the special demands of clients;
After-sales Service
1.Carefully checking machine in every working procedure, quality comes first;
2.Assisting our clients for foundation construction of equipments;
3.Dispatching engineers to install and debug equipments,training the first-line operators on site;
4.Regularly visit clients to solve production problems and providing our technology support.
We have more than 15 years experience, support you best before and after sales service.Quality is first and top Pursuit of our company.

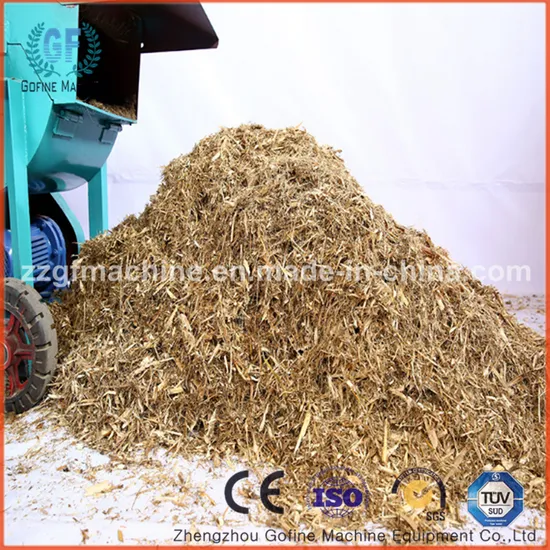

Product pictures of high efficient silage hay cutter
About our company
Gofine Machine, establish in 2010, located in Longgang Developed Zone of Xingyang City, Henan, China, specially engaged in producing fertilizer production machinery, animal feed machinery, waste recycling machinery and trading in building machinery and food machinery and wood machinery; we have heavy standardization industrial plants with area 60000 square meter, bring advanced large metal processing equipment, including the 10 sets CNC machining center, 3sets laser cutting machine, and other equipment reaching total 100 sets; we have get known by the ISO9001-20001 certification and CE certification; Welcome you to know us more on our machine and our technology.
We take "Quality First and Customer Supreme" as our business philosophy, adhere business idea"Honesty and Excellence" and spirit of "Practical and Innovative", act "Attitude is everything" to our business and each client.
FAQ of high efficient silage hay cutter Q: How do you ensure the quality of your products?
A: Generally, our equipment are the most durable type our customers at home or abroad. With our experienced quality control team, we are trying to offer you the product with best quality. However, we do recognize that there do have small amount of the product which may got faulty or damaged for different reasons;

Q: How does your after-sale service work if the product got damaged?
A: In the guarantee time 24 months, our general after-sale service is changing the damaged parts, but if the damage could be repaired by slight cost, we would wait for the customer's bill for the fix cost and refund this part of cost.(note: wear parts do not include.)

If you have any further question on high efficient silage hay cutter, please feel free to contact me freely!
