Symons Cone Crusher with Mature Technology

Product Description

Application
Symons cone crusher is widely applied in metallurgical, construction, road building and chemical industry. It is suitable for hard and mid-hard rocks and ores, such as iron ores, copper ores, limestone, quartz, granite, etc.
Main Features and Benefits
1. high productivity; high quality;
2. less downtime;
3. easy maintenance and low cost;
Operating Principle
Symons cone crusher crushes materials by the working surface between the concave and mantle. The movable cone of cone crusher is supported by spherical bearing and fixed on a hanging erect shaft which is set in the eccentric sleeve, and the sleeve is set on the stopping and pushing bearing. The movable cone and erect shaft are driven by the eccentric shaft sleeve together. The lower part of vertical shaft is installed in the eccentric sleeve. When the eccentric sleeve of cone crusher rotates, there is a conical surface lined out by the shaft. When the movable cone comes near the fixed cone, rocks are crushed into pieces, when the cone leaves, crushed materials is discharged from the discharge hole.
Specification

Model	Crushing cone dia. (mm)	Adjusting Range of Discharge Opening (mm)	max feeding size (mm)	Capacity (t/h)	motor power (kw)	Weight (kg)	overall dimension (L×W×H)(mm)
PSGB-0910	914	9-22	85	45-91	75	9980	2656×1636×2241
PSGB-0917		13-38	150	59-163
PSGB-0918		25-38	150	118-163
PSGD-0904		3-13	35	27-90		10530
PSGD-0906		3-16	65	27-100
PSGD-0907		6-19	85	59-129
PSGB-1313	1295	13-31	115	109-181	160	22460	2983×1866×3156
PSGB-1321		16-38	178	132-253
PSGB-1324		19-51	205	172-349
PSGB-1325		25-51	220	236-358
PSGD-1306		3-16	54	36-163		22590
PSGD-1308		6-16	76	82-163
PSGD-1310		8-25	89	109-227
PSGD-1313		16-25	113	209-236
PSGB-1620	1676	16-38	178	181-327	220	43270	3941×2954×3771
PSGB-1624		22-51	205	258-417
PSGB-1626		25-64	228	299-635
PSGB-1636		38-64	313	431-630
PSGD-1607		5-13	60	90-209		43870
PSGD-1608		6-19	76	136-281
PSGD-1613		10-25	113	190-336
PSGD-1614		13-25	113	253-336

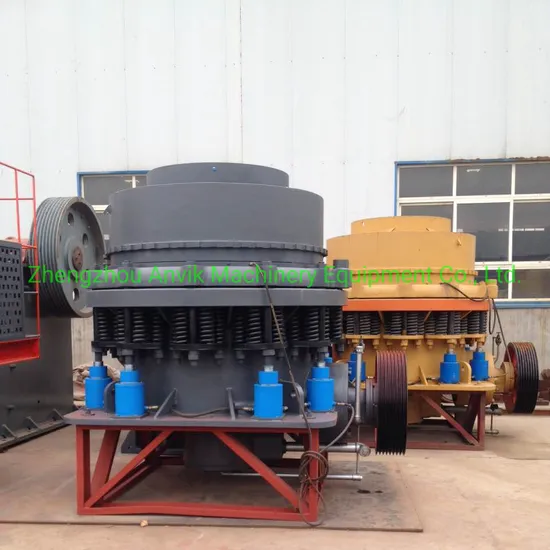

Photo at Our Factory
