High Frequency Curved Plywood Hot Rress for Chair Forming

Product Description

Three Direction High-Frequency Plywood Bending Press
The machine running video:https://youtu.be/_N_R_EsRx3Y
1. Introduction:
Three Direction High-Frequency Plywood Bending Press also named High-Frequency Curved Plywood Press. It is equipped with a high-frequency generator and two sets of the hydraulic press. The press is designed with vertical pressure and horizontal pressure (Left and Right-hand horizontal pressure together). This kind of design can help customer bend complex shape of curved plywood elements, such as the complex chair, sofa armrest, tea table, sound box, and round cycle plywood products.
HF Plywood Bending Press doesn't need boiler and hot oil. It only needs electricity, clean and powerless. One operator could operate at least 2 sets of the machine, convenient and easy to handle with. Mold/Die changing is easier and cost less, due to the material (mold can be made by plywood or MDF). Wooden mold keeps warm in good condition. And the costs are cheaper than metal mold. The customer even can design and produce their own mold shapes easily.
2. Features:
1). Horizontal pressure plus Vertical pressure can bend complex shapes of products. Good for long-term product development.
2). High efficiency: High frequency is internal heating, drying glue quickly, easily and uniformly (Chair bending needs 3-4 mins per cycle)
3). Low costs: High frequency concentrates power on glue, saving energy.
4). Stable quality. After pressing, plywood shape is steady and hard to change.
5). Easy mold making. HF bending press works with plywood mold, which is easy to design and make in customers' requirement
6). Environment-friendly: High-frequency power needs only electricity, clean and dust free.
3. Parameter:

Model	HFPB-1506T-CH	HFPB-1608T-CH	HFPB-1610TD-CH
Power	3Phase 4 Wires AC380V 50Hz, or customized
Top Working Table	1500x650mm	1600x800mm	16000x1000mm
Bottom Working Table	1800x650mm	1900x800mm	1900x1000mm
Total Pressure	96T	120T	160T
Vertical Pressure	80T	80T	100T
Horizontal Pressure	16T	40T	60T
Output	Two outputs (One HF drives two press)
Weight	7T	8T	9T

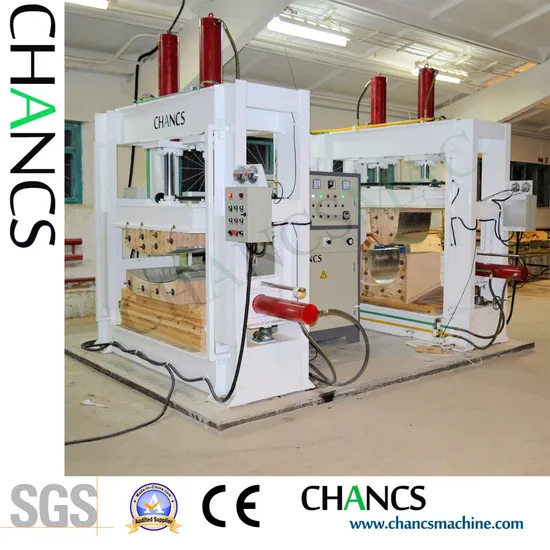

4.Detailed Images:

5.Mould:
6.Products:
7.Packing:
7.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q:What's the MOQ?
R: One set will be ok.
2. Q: Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q: What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after inspection.
4. Q: What is the warranty time?
R: One year.
