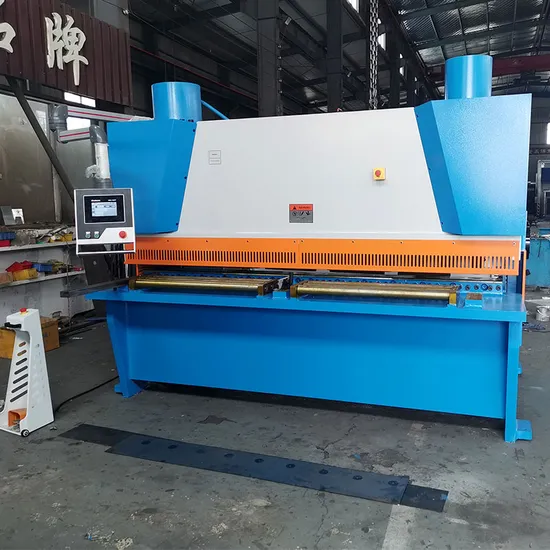

QC11Y 20x2500 hydraulic NC shearing machine for cutting metal sheet

Product Description

Product Description
HYDRAULIC NC GUILLOTINE SHEARING MACHINE
The whole structure of Shearing machine:
Totally European design, streamlined looking.
Remove rust with sand-blast and coated with anti-rust paint.
Frames, assembly surfaces and connection holes are machined after the welding process, up to 60' in a single pass.
1.Hydraulic system
Adopt integrated hydraulic control system, more reliable and easy for maintenance.
Hydraulic system is from Bosch -Rexroth, Germany.
All pipes, flange and joint with vibrations proof and leakage proof design and setting.
All seals in cylinder is NOK from Japan, the most famous brand, good quality and high performance.
Overload overflow protection is outfitted to hydraulic system, which can assure no leakage, and the oil level can be read or seen directly.
The hydraulic system is made in compliance with current regulations.
2.Electrical system
Electrical Cabinet under the standard of IP55, Electrical under international CE Standard, safe and reliable, strong anti interference capability. Protective fence and the safety interlock to ensure the operation safety.
Have a movable single-hand pedal switch, easy to operate.
Front Side Covers, Back light safety guards, Foot pedal conforming to CE regulation.
3. Blade Adjust and Cutting Precision
Shearing angle is Variable, which can reduce the shearing deformation of sheet metal and can shear much thicker sheet metal.
Adopt handwheel to rapidly and accurately adjust the blade clearance, Shearing in sections, shadow-line cutting.
The rectangular monoblock blades featuring long life with 4 cutting edges, quality high-carbon high-chrome blades 6CRW2SI quality.
4.Backgauge
Back gauge instal on the blade rest, along with the rest on the up and down movement, it's driven by a motor through the E21s system can control the plate before and after the position adjustment, behind.
The adjusting range of the backstop material is 20-800mm, which can be adjusted freely in this range.
5.E21s NC Controller
Backgauge and block control
Control for AC motors, frequency inverter
Intelligent positioning
Stock counter
Holding/decompression time setting
Program memory of up to 40 programs, up to 25 steps per program
One side positioning
Retract function
One key backup/restore of parameters
mm/inch
Chinese/English
Specification

Specification	QC11Y-20X2500	Unit
Cutting thickness	20	mm
Cutting width	2500	mm
Tensile strength of material	≤450	N/ mm2
Shearing angle	1-3	°
Time of stroke	7-18	/min
Length of blade	2600	mm
Height of worktable	850	mm
Thickness of uprights	60	mm
Backguage rang	20-800	mm
Motor power	22	KW
Gear pump	63	L
Weight	12000	KG
Dimension	3150x2150x2400	mm

Detailed Photos
Company Profile
FAQ Q1: How is the warranty?
A1: Warranty time is 13 months after BL date.
Q2:Can we visit your factory before order?
A2:Sure.All new and old friends are welcomed to visit us at our factory. Besides,we can pick up you at the station or airport if needed. We will be very honored to help with tickets and accommodation booking.
Q3:Do you have a stock?
A3:Sorry, most of our machines don't have stock, we always produce according to order. However, if during fairs months, maybe have few samples back from fairs.
Q4:What's the MOQ?
A4:One set only.
Q5:How about your quality?
A5:We have approved the ISO9001:2008 Quality management system.ISO14001 Environmental management system, OHSAS18001 International occupational health and safety management system, and Social Accountability 8000(SA8000). Most products have been approved by the European and American safety standards, including CE, GS, EMS&UL,90% of our products are exported to more than 60 countries and regions around the world, especially to Europe and America market and always win high reputation. So you can rest assured of our quality products and our best services.
Q6:Do you have professional engineers?
A6:Yes.we have professional engineers and designers. We can provide OEM services.
Q7:Can you provide customized machines?
A7:Yes, we can design and manufacture according to your specific requirements.
