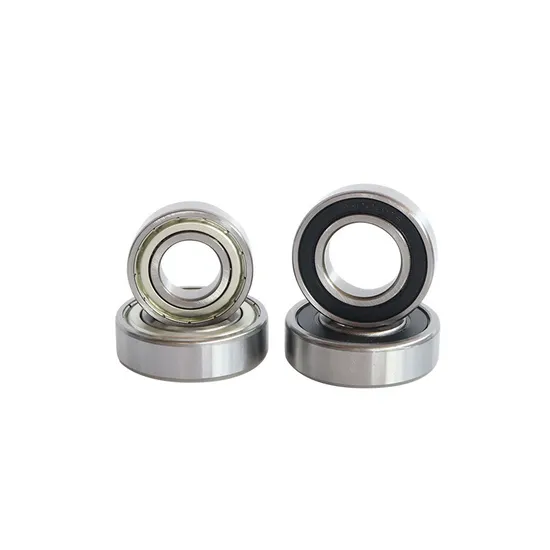

NTN NSK Deep Groove Ball Bearing Good Precision Zv1 Zv2 Zv3 Zv4 6004 6201 6203 6204 6302 6303 6304 6306

Product Description

Company Profile
Shandong Linqing Xunteng Bearing Co., Ltd. was founded in 1995, covering an area
of 20,000 square meters, the factory has 260 employees, including 15 senior engineers,
10 professional inspectors, the factory has advanced domestic modern production
equipment, automated production line, perfect testing equipment. The annual production capacity exceeds 5 million sets. It can also produce various types of products in large quantities according to users' requirements.
Our company always keep the commitment "first quality, fast delivery, reasonable price" to our customers. We will provide you with perfect service! We are responsible for each set of bearings and for each customer!
Our AXTG brand bearings sell well in domestic and foreign markets and are favored by our customers. We exported for more than 10 years, our production exported to United States, Europe, North and South America, Africa, Southeast Asia and other countries. We had established long-term business relationships with friends from all over the world and will still give back to our customers with professional and enthusiastic service.

Product Description
The company's products have created a new brand of bearing quality, and the grade has reached the level of ZV3 ZV4 or above. AXTG brand bearings sell well in domestic and foreign markets and are favored by our customers.
The bearing can be used for machines and accessories. The motorcycle spare part bearing has the advantages of full types, high load, smooth structure, excellent high temperature resistance, low noise, good lubricity, mechanical stability and anti-wear performance. Our company can customize a variety of package and produce various non-standard bearing as customer needs.

NO.	I.D	O.D	Width	Load Rating		Maximum Speed		Weight
	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pc
604	4	12	4	0.97	0.36	53000	63000	0.0021
605	5	14	5	1.30	0.49	50000	60000	0.0035
606	6	17	6	1.95	0.74	43000	51000	0.0058
607	7	19	6	2.60	1.05	40000	47000	0.0076
608	8	22	7	3.30	1.35	34000	41000	0.012
609	9	24	7	3.35	1.40	33000	40000	0.015
6000	10	26	8	4.58	1.98	22000	30000	0.019
6001	12	28	8	5.10	2.38	20000	26000	0.022
6002	15	32	5.6	5.58	2.85	19000	24000	0.030
6003	17	35	6.8	6.8	3.35	17000	22000	0.039
6004	20	42	9.4	9.4	5.05	15000	19000	0.069
6005	25	47	10.1	10.1	5.85	13000	17000	0.080
6006	30	55	13.2	13.2	8.3	12000	15000	0.116
6007	35	62	16	16	10.3	10000	13000	0.155
6008	40	68	16.8	16.8	11.5	8000	11000	0.185
Etc.
NO.	I.D	O.D	Width	Load Rating		Maximum Speed		Weight
	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pc
6200	10	30	5.1	5.1	2.39	19000	26000	0.032
6201	12	32	6.1	6.1	2.75	18000	24000	0.037
6202	15	35	7.75	7.75	3.6	17000	22000	0.045
6203	17	40	9.6	9.6	4.6	16000	20000	0.066
6204	20	47	12.8	12.8	6.65	14000	18000	0.106
6205	25	52	15	14	7.385	12000	16000	0.128
6206	30	62	16	19.5	11.3	10000	13000	0.199
6207	35	72	17	25.7	15.3	8800	10000	0.287
6208	40	80	18	29.1	17.8	7700	9200	0.367
6209	45	85	19	32.5	20.4	6800	8200	0.416
6210	50	90	20	35	23.2	6100	7300	0.462
Etc.
NO.	I.D	O.D	Width	Load Rating		Maximum Speed		Weight
	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pc
6300	10	35	11	8.2	3.5	15000	21000	0.053
6301	12	37	12	9.7	4.2	14000	20000	0.06
6302	15	42	13	11.4	5.45	13000	18000	0.082
6303	17	47	14	13.5	6.55	12000	17000	0.115
6304	20	52	15	15.9	7.9	11000	15000	0.145
6305	25	62	17	21.2	10.9	10000	13000	0.219
6306	30	72	19	26.7	15	8000	10000	0.349
6307	35	80	21	33.5	19.1	6800	8000	0.454
6308	40	90	23	40.5	24	5800	7200	0.639
6309	45	100	25	53	32	5000	6200	0.836
6310	50	110	27	62	38.5	4400	5500	1.082
6311	55	120	29	74.1	45	5800	6800	1.35
6312	60	130	31	81.8	51.8	5000	6000	1.71
Etc.
NO.	I.D	O.D	Width	Load Rating		Maximum Speed		Weight
	mm	mm	mm	Dynamic Cr	Static Cor	Grease r/min	Oil r/min	Kg/pc
6403	17	62	17	22.7	10.8	14000	16000	0.27
6404	20	72	19	28.5	13.9	12000	14000	0.4
6405	25	80	21	34.5	17.5	10000	12000	0.53
6406	30	90	23	43.5	23.9	8800	10000	0.735
6407	35	100	25	55	31	7800	9100	0.952
6408	40	110	27	63.5	36.5	7000	8200	1.23
6409	45	120	29	77	45	6300	7400	1.53
6410	50	130	31	83	49.5	5700	6700	1.88
Etc.

Deep groove ball bearings are suitable for high-speed or even extremely high-speed operation, and are very durable without frequent maintenance. This type of bearing has a small friction coefficient, high limit speed, and various size ranges and forms. It is used in precision instruments, low-noise motors, automobiles, motorcycles and general machinery industries. It is the most widely used type of bearing in the machinery industry. Mainly bear radial load, but also can bear a certain amount of axial load.
Application Areas

Models
Deep groove ball bearing models
60 series deep groove ball bearings
6000 6001 6002 6003 6004 6005 6006 6007 6008 6009 6010 6011 6012 6013 6014 6015 6016 6017 6018
6019 6020 6021 6022 6024 6026 6028 6030 6032 6034 6036 6038 6040 6044 6048 6052 6056 6060 6064 6068 6072 6080 6088 6092 bearing
62 series deep groove ball bearings
6200 6201 6202 6203 6204 6205 6206 6207 6208 6209 6210 6211 6212 6213
6214 6215 6216 6217 6218 6219
6220 6221 6222 6224 6226 6228 6230 6232 6234 6236 6238 6240 6244
6248 6252 6256 6260 6264 6268 6272 6276 6280 Z/ZZ/2Z/2RS bearing
63 series deep groove ball bearings
6300 6301 6302 6303 6304 6305 6306 6307 6308 6309 6310 6311 6312 6313
6314 6315 6316 6317 6318 6319 6320
6321 6322 6324 6326 6328 6330 6332 6334 6336 6338 6340 6344 6345 6348 6350 6352 6356 6360 6364 bearing
64 series deep groove ball bearings
6400 6403 6404 6405 6406 6407 6408 6409 6410 6411 6412 6413 6414 6415 6416 6417 6418 6419 6420 6422 bearing
