US$40,000.00-300,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
Horizontal Type
Automatic Grade
Automatic
Wall Panel Size
2440*600*75/90/100/120/150 mm
Transport Package
International Standard Packing
Product Description

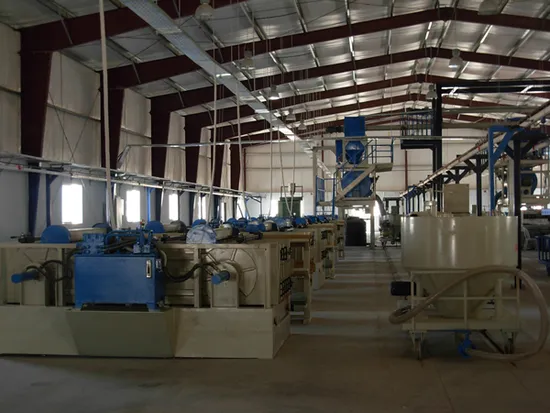

Wall Panel Production Line- Horizontal Type
Product Introduction
Process of Producing
Material batching → mixing → slurry infusing → molding →automatic demoulding and stacking→ finished product
Production Line Composition
1.Silo | 10.Composite Ferry Cart |
2.Screw Conveyer | 11.Automatic Demoulding Machine |
3.Mixer(with Powder Measuring System and Foaming Machine) | 12.PLC Controller |
4.Automatic Slurry Injection Pump | 13.EPS Silo |
5.Movable Molding Machine | 14.EPS Pre-expander |
6.Demoulding Area Pushing Cart | 15.Boiler |
7.Mould Installation Area Pushing Cart | 16.Forklift |
8.Slurry Injection Pushing Cart | 17.Storage Yard |
9.Transferring Pushing Cart | |
(1) The horizontal wall panel production line integrates electrical, hydraulic and mechanical functions.
(2)The wall panel production line mainly includes six systems: batching and mixing, automatic grouting, mold turning, transfer system, finished product maintenance, demoulding and stacking system.
(3)Two working modes: manual and automatic free switching.
(4)The use of advanced industrial PLC, high-precision hydraulic components and compact mechanical structure can achieve safe and stable operation.
Key Features
Main Features: Automatic system, PLC control.
The main electrical components use Siemens.
The wall panel production line can be used flexibly, and can produce solid wall panels, hollow wall panels, wall panels with or without panels.
Different materials can be used to make lightweight wall panels.
The wall panel production line is easy to operate and maintain.
Technical Parameters
Double Layers Horizontal Type Wall Panel Molding Machine
Fuction | Molding System |
Finished Wall Panel Dimension | 2440/3000*610*50/60/75/90/100/120/150/200mm |
Output of Wall Panel with Different Thickness | 50mm | 60PCS |
60mm | 52PCS |
75mm | 46PCS |
90mm | 40PCS |
100mm | 38PCS |
120mm | 32PCS |
150mm | 28PCS |
200mm | 22PCS |
Hydraulic Unit | Moto Power | 2.2KW |
Operating Pressure | 16Mpa |
Molding Time | 2 Hours (High aluminum cement) |
Net Weight | 9T |
Component | Molding machine, Hydraulic unit, Mould |
EPS Lightweight Wall Panel
What is EPS Wall Panel?
Description: EPS lightweight wall panels are sandwich panels with cement boards on both exterior and interior sides, and a core filled with a mix of Lightweight Cement and Polystyrene Beads. This material combination offers flexibility, rigidity, strength, and insulation.
Advantages:
Green and Modern: Replaces traditional red bricks and aerated blocks, meeting modern building requirements.
Versatile Use: Suitable for partition walls in high-rise buildings, exterior walls, and partitions in steel structure prefabricated houses and villas.
Lightweight and Thin: Reduces building weight, increases usable space, and lowers construction costs.
High Strength and Insulation: Provides thermal and sound insulation, waterproofing, and earthquake resistance.
Easy Installation: Can be nailed, sawed, and slotted, making on-site installation convenient.
| Light Weight: EPS panels are designed to be lightweight, which reduces the load on structures. Thin Thickness: Despite their strength, these panels have a thin profile, which conserves space. High Strength: EPS panels offer high strength, ensuring durability and stability in construction. Heat Insulation: They provide effective insulation against heat, helping to maintain indoor temperatures. Sound Insulation: EPS panels also serve as a barrier against noise, contributing to a quieter living or working environment. Waterproof and Moisture-Proof: These panels are resistant to water and moisture, protecting the structure from dampness and potential damage. Earthquake Resistance: EPS panels are designed to withstand seismic activity, adding to the safety of the building. Ease of Installation: EPS panels can be nailed, sawed, and slotted, making them easy to install on construction sites. Reduces Building Weight: By using lightweight materials, the overall weight of the building is reduced. Increases Available Space: The thin profile of EPS panels allows for more usable space within the building. Saves Construction Costs: The ease of installation and reduced material needs can lead to significant cost savings in construction projects. |
Wall Panel Application Display
