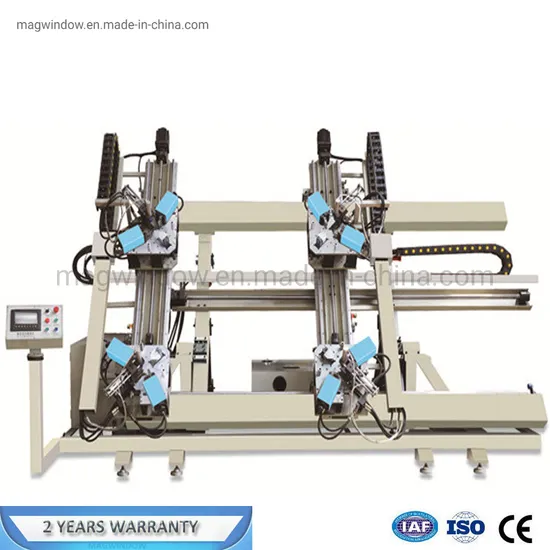

Aluminum Doors and Windows Four Head Corner Crimping Machine

Product Description

Factory Supply aluminium doors window manufacturing machine / Four head Corner Combining machine CNC with CE
Product Description
1. The machine is used for combining the aluminum windows and doors corner.
2. It can finished a whole rectangle frame(4 corners)combination at one time, high efficiency.
3. nt/back movable clamping device, easy operation
4. high quality hydraulic system, tyable and easy maintenance.
5. high precision ball screw for accurate positioning, stable running and high processing accuracy.
6. Adjustable head movement for different processing size request.
7. The 45 degree corner is jointed by steel corner connectors.
8.servo driver and motor with brake system
9. Using high and low pressure twice feed, improve tool synchronicity.
Product Parameters

Power supply	380V 50Hz or Customers specification
Motor power	4KW
Rated pressure	15Mpa
Motor rotational speed	2840r/min
Profile processing width	90mm
Total combining pressure	0.6-0.8Mpa
Air consumption	60L/min
Min frame dimension	480*480mm
Max frame dimension	3000*1800mm
Overall dimension	14700×2200×2600mm
Weight	2500kg

Detailed Photos

Certifications
Remarks
1. All the electrical elements,Circuit breaker protection and AC contactors are schneider or other world famous brand.
2. International CE standard high flexibility, high shielding cables.
3. Warranty time: 1 year
4. Quotation Valid: 90 days
5. Payment terms: 30%T/T as deposit, 70% balance made before shipment by T/T
6. Delivery time: 30 days upon receipt of 30% deposit by T/T
7. Packaging: Film packaging and fumigation-free wooden case(if delivery by full container load, then without wooden box, just use the tray)
8. After sales service:
1)24 hours service on Internet and Telephone, free instructions and problem solving
2) Free training to make sure a master of the operating of cnc router for the person who come to our factory
3)User-friendly English manual or operating video for machine using and maintaining
4) on-the-spot training, installation and repairing can be met if required.(If so, need the buyer afford the visa and air ticket and 60USD/DAY Salary)
