Portable Concrete Core Drilling Machine for Diamond Concrete Core Drills Cdm220

Product Description

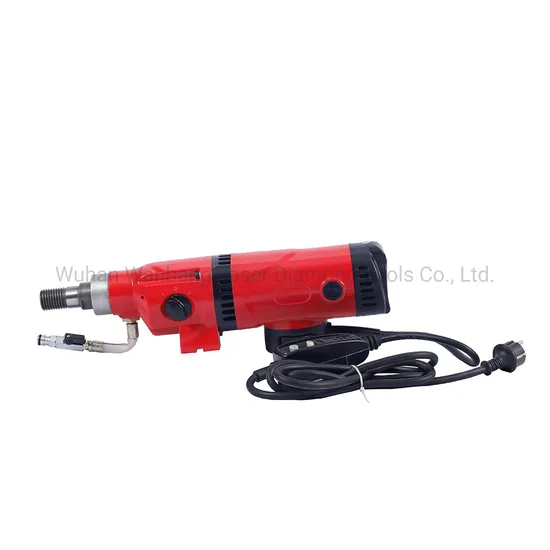

Portable concrete core drilling machine for diamond concrete core drills CDM220
Applications:
Diamond core drill machine is a type of tool, which is especially designed for concrete, reinforced concrete, asphalt and other construction materials working. Ideal for installation of water holes, air holes, hood hole and other mechanical mounting holes.
Features:
** Soft start
** External carbon brushes
** Mechanical splipping clutch
** Oil-bath lubricated gearbox
** PRCD-fitted
** Aluminum-alloy shell
-- Oil level indicator and change option
Option: Pressure water tank / Vacuum pump / Water collecting ring

Core Drilling Motor CDM220 / 220S
Design Power	2200W
Actual Power	2000W
Voltage	220V/110V
3-speed Gearbox	580/1400/2800rpm
Max.φ concrete	160mm
Max.φ stone	200mm
Spindle	G 1/2" - 1 1/4"
Weight	8.5kgs

Core Drilling Motor CDM180
Design Power	1800W
Actual Power	1600W
Voltage	220V
3-speed Gearbox	580/1400/2800rpm
Max.φ concrete	132mm
Spindle	G 1/2" - 1 1/4"
Weight	8.2kgs

Core Drilling Motor CDM330
Design Power	3300W
Actual Power	3100W
Voltage	220V/110V
3-speed Gearbox	400/800/1200rpm
Max.φ concrete	400mm
Spindle	G 1/2" - 1 1/4"
Weight	15kgs

Dirlling Rig CDR80
Company Info:
WUHAN WAN BANG LASER DIAMOND TOOLS CO.,LTD, a dynamic company, driven by a team of experienced Doctor and Master specialized in powder metallurgy and laser welding technology, was established in 1999.
As a leading manufacture in professional diamond tools,Wan bang specialized in producing and developing all kinds of diamond tools, which have wide range of applications in architecture, stone process, decoration and highway project, etc.
As a ISO9001: 2000 certified company, Wan bang has very strict quality control system, all products exported to the U. S. A., Germany, UK and many other countries, and enjoy very good reputations in the mainstream market.
Our product including: Laser welded diamond concrete saw blades, asphalt saw blades, granite cutting disc, diamond core drill bits, diamond grinding cup wheels and grinding shoes, diamond wall saw blades, floor saw blades, ring saw, wire saw, tuck point blades.
