Heavy Duty Precision Metal Turning Center

Product Description

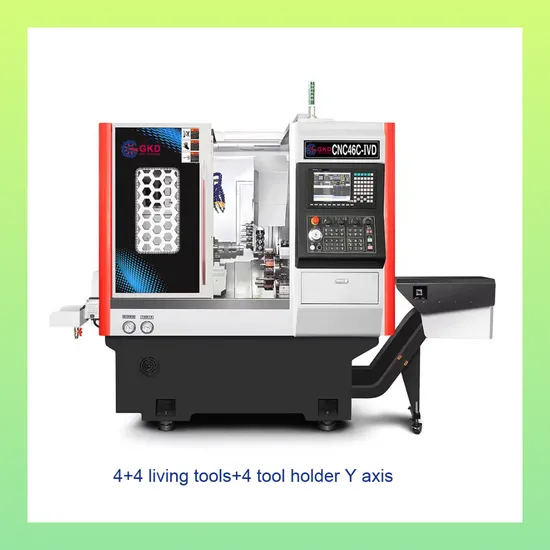

Discover the revolutionary CNC Turning Lathe Center, designed with an advanced driven head and integrated living tool machine. This state-of-the-art equipment sets new benchmarks in precision, redefining the standards of high-performance metal turning. CNC (Computer Numerical Control) turning lathes have revolutionized the manufacturing landscape, providing unmatched precision and efficiency. These sophisticated machines excel in a wide array of operations, including drilling, tapping, turning, and boring. Renowned for their versatility, CNC turning lathes are indispensable in the automotive, aerospace, medical, and electronics industries, enabling the production of intricate and high-precision components. They continually set new standards in the manufacturing world.
In this comprehensive article, we explore the intricate components of a CNC turning lathe, delving into its fundamental working principles and versatile applications across a spectrum of industries. Discover how these machines are transforming manufacturing processes and driving innovation.
Product Parameters

Model	CNC46C-IVD
Spindle nose type	A2-5
Spindle through-hole diameter (mm)	56
Bar through diameter (mm)	46
Maximum rotation diameter (mm)	500
Max processing length (mm)	300
The largest car milling diameter(mm)	230
Knife platform and spindle center height(mm)	65
Chuck size	6 inch
Controller	Syntec
Spindle indexing repeat positioning accuracy	±0.005°
Spindle indexing positioning accuracy	±0.002°
Spindle speed (rpm)	0-6000
A/B Axis speed(double motor) (r.p.m)	0-4000
A Axis power tool model	4*ER25
B Axis power tool model	4*ER25
X/Z axis rapid feeding (m/min)	≤25
Y axis rapid feeding (m/min)	20
X/Z axis positioning accuracy (mm)	0.002
X/Z axis repeat position accuracy (mm)	0.003
X axis travel (mm)	1060
Y axis travel (mm)	190
Z axis travel (mm)	400
Number of turret (pcs)	8
Spindle power (KW)	7.5
X axis power (KW)	2.0(with brake)
Y axis power (KW)	2.0(with brake)
Z axis power (KW)	2.0
A/B Axis power(double motor,servo) (KW)	2.0
Cutting pump power (KW)	0.37
Power head and motor(KW)	2.0/1.0
Hydraulic tank capacity (L)	60
Tank volume (L)	108
Machine size (mm)	L2260*W1800*H2200
Machine weight (KG)	2900

Company Profile
For many years, GKD (Mingju) has been unwavering in its dedication to integrating premier resources and pioneering technologies, all while striving to deliver unparalleled quality to customers across the globe.
GKD is a distinguished conglomerate specializing in the R&D and manufacturing of advanced CNC machining centers. Nestled near Hong Kong, in China's illustrious 'World Factory,' and fortified by its strategic European headquarters in Italy (Taiwan), GKD boasts a global sales and service network. The Group operates five cutting-edge production bases in Dongguan, Chongqing, Anhui, Hunan, and Jiangsu. Our extensive product line includes vertical machining centers, high-speed gantry machining centers, horizontal machining centers, horizontal boring and milling machines, CNC lathes, turning and milling centers, five-axis machining centers, and other premium CNC machine tools and production lines. As a comprehensive manufacturer with a full-spectrum industrial chain, GKD has established itself as a leader in the CNC metal cutting machine tool sector in China. Our products are extensively utilized across various sectors including aerospace, mold-making, automotive, energy, marine, engineering machinery, and 3C electronic products, among other manufacturing industries.
GKD Group is devoted to providing customers with top-tier products and all-encompassing solutions, steadfastly adhering to the principles of high-speed, high-precision, and high-efficiency intelligent equipment. We deliver superior solutions that are both high-quality and cost-effective, meticulously meeting the diverse needs of our clients. With robust manufacturing capabilities and exemplary after-sales service, GKD has successfully extended its comprehensive range of products and services to numerous countries and regions around the world.
GKD Group is here to serve you with unwavering sincerity!
Our Advantages
1. Superior Professional Service in CNC Machines Export: Benefit from our extensive expertise and unwavering commitment to excellence in the export of high-quality CNC machines.
2. Expert Craftsmanship from Italy and Taiwan, Ensuring Exceptional Manufacturing Quality: Our products embody the finest craftsmanship from Italy and Taiwan, guaranteeing superior manufacturing standards.
3. Flexible Payment Options: T/T, Western Union, L/C, Paypal: Enjoy the convenience of multiple payment methods, including T/T, Western Union, L/C, and Paypal.
4. Premium Quality, Safe Materials, and Competitive Pricing: Experience top-tier quality and safety at competitive prices, ensuring maximum value for your investment.
5. Acceptance of Small Orders: We accommodate small orders, catering to diverse needs and ensuring accessibility for businesses of all sizes.
6. Rapid Response Time: Our team is dedicated to swift responses, ensuring your queries and needs are addressed promptly.
7. Secure and Expedited Shipping Solutions: Benefit from our reliable and fast shipping options designed to meet your deadlines securely.
8. Custom OEM Designs Tailored for All Clients: We specialize in creating bespoke OEM designs, perfectly tailored to meet the unique requirements of each client.
Certifications
Packaging & Shipping
After Sales Service
1)
We proudly provide a comprehensive 12-month quality warranty commencing from the date the product arrives at the destination port, excluding any physical damage. Throughout this period, we will supply necessary fittings at no additional cost. Customers are required to return the damaged parts to us via courier at their own expense prior to us dispatching the replacement parts. Beyond the warranty period, any necessary repairs or part replacements will be subject to reasonable charges.
2)
Due to the complexities involved in on-site maintenance, we extend extensive online support. This includes technical assistance through email, MSN/Skype, camera, video, telephone, and fax to guide users on installation, operation, adjustment, maintenance, and more.
3)
For scenarios where online support is insufficient, we offer Door-to-Door service. Should you require our engineers for on-site assembly, maintenance, or adjustments, you must assist with visa formalities, prepay travel expenses, and arrange accommodation during their visit. Additionally, please arrange for a translator during the service period. As an alternative, you are welcome to send your engineers to our factory for extensive, complimentary technical training.
FAQ
1. What is your minimum order quantity and warranty?
Our Minimum Order Quantity (MOQ) is just one set. We proudly offer a comprehensive one-year warranty, ensuring your investment is protected and your mind is at ease.
2. What brand of bearing do you use?
We exclusively use premium NSK bearings, sourced directly from Japan, which guarantee exceptional performance and extended durability.
3. When is the delivery time?
After payment, we promise a swift delivery, ensuring your product arrives within 15 to 30 days.
4. How to handle the warranty period?
Throughout the warranty period, we cover all maintenance costs linked to product quality issues. If any part replacements are necessary, they will be provided at no extra charge. For problems unrelated to the machine's quality, we can send engineers for repairs, with the expense borne by the buyer.
5. Can your company send technical personnel to our company to instruct our workers for free?
Upon the machine's arrival at your installation site, our mechanical and electrical engineers will be dispatched promptly according to your schedule. While we assist with visas and installation preparation, the buyer must take care of accommodations and a fee of USD150 per day per person during the installation process.
