Lk Varia 1600 Ton Plastic Injection Molding Machine

Product Description

Brief Introduction
LK group specializes in the design manufacture and sales of die casting machines, high precision injection molding machines, CNC machine centers, and industrial integrated control systems. Our market share of die casting machines is over 60%, the injection molding machine ranks among the top 5 in China.We have 11 companies worldwide, 9 in domestic China, 1 in Taiwan, and 1 acquired company in Italy. Our injection molding machine centers are Zhongshan in Guangdong and Ningbo in Zhejiang. There are over 60 sales and service centers in the world, and our high-quality after-sales service and 24-hour prompt response system provide customs all-around fully coverage customer service.
Ultra-large turntable with 2-3 position(option), suitable for different multi-material plastic part. LK injection molding machines can produce plastic parts combined with 1-3 colors/materials which are commonly found in automotive lighting, internal trim, electrical appliances, household appliances, and houseware. It integrates the servo energy-saving concept and control algorithm.
Varia series 130 ton - 2000 ton
Key features
1. 2/3 components high precision injection
2. Linear rails on injection unit, less resistance
3. Single injection cylinder
4. Special design in turning table rotating without contacting the platen
5. Duel ejector cylinder
6. Servo control system, highly responsive, close loop control
Use of application
Automotive, Home Appliance, Glasses Product, Household Product
Technical Parameter List

	ITEM	UNIT	VA1600
			Injection Unit 1			Injection Unit 2
			A	B	C	A	B	C
Injection Unit	Shot Weight	g	2425	2719	3357	864	1028	1207
	Screw Diameter	mm	85	90	100	55	60	65
	Injection Volume	cm3	2665	2988	3689	949	1130	1326
	Injection Pressure	MPa	296	265	214	290	245	210
	Screw L/D Ratio	L/D	21.8	20.6	18.5	21.6	19.8	18.3
	Injection Rate	cm3/s	737	827	1020	218	260	305
	Screw Speed	r/min	0~138			0~175
	Hopper Capacity	L	350			100
	Distance Between Barrel Centers	L	710
Clamping Part	Locking Force	kN	16000
	Die Height (Min.-Max.)	mm	550-1650
	Max.Daylight	mm	3350
	Space Between Tie Bars	mm	1520×1520
	Ejector Stroke	mm	300
	Ejector Force	kN	2×210
	Rotary Table Diameter	mm	2070
	Bearing Capacity of Rotary Table	kg	13000
Other	Motor Capacity	kW	44×3			44
	Max Working Pressure	MPa	17.5
	Oil Tank Capacity	L	3250/3770
	Heating Capacity	kW	51			25
	Machine Dimensions (L×W×H)	mm	14000×4800×3700

Products Display
Showroom Review

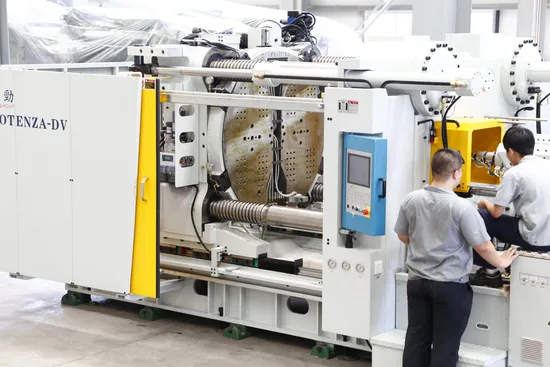

Factory Review
