High-Performance Suction Lifters for Efficient Metal Handling Tasks

Product Description

Product Description

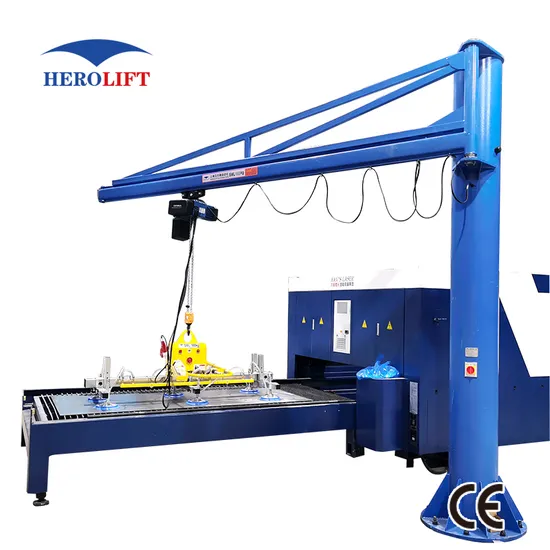

Introducing our state-of-the-art vacuum lifter, meticulously engineered for laser feeding applications! This revolutionary equipment delivers unparalleled precision and ease, expertly managing sheets with dense, smooth, or textured surfaces to perfectly align with the rigorous requirements of laser cutting processes.
Designed for simplicity, our lifter is incredibly user-friendly, ensuring seamless integration into daily workflows. Our unwavering commitment to safety means your team can focus on their tasks with complete peace of mind, knowing their well-being is our priority.

Our equipment boasts remarkable adaptability, allowing swift and effortless modifications to suit various workpiece dimensions. Coupled with impressive load-bearing capabilities, our vacuum lifters stand as the ultimate allies in streamlining and optimizing your manufacturing processes. By revolutionizing material handling, you conserve both time and resources, elevating productivity to new heights.
Our equipment's device offers the flexibility to choose between DC or AC 380V. Opt for battery charging, and benefit from approximately 70 hours of use per charge, with a battery lifespan exceeding 4 years. Standard power supply voltage ranges from 110V-220V. For 380V AC configurations, it's essential to verify local voltage specifications at purchase. We provide tailored transformers to match your regional voltage requirements.
Virtually any item can be effortlessly lifted
We offer bespoke tooling solutions tailored to your unique requirements. Reach out to us for comprehensive details.
Characteristic
1,Maximum Safe Working Load (SWL)1500KG
Integrated low pressure warning system
Customizable suction cup designs
Intuitive remote control operation
Certified with CE standards Compliant with EN13155:2003 regulations
Adheres to China's Explosion-proof Standard GB3836-2010
Developed in accordance with the German UVV18 standard
2, Equipped with a large vacuum filter, powerful vacuum pump, control box featuring start/stop functions, and an energy-efficient system with automatic vacuum modulation. Includes electronic vacuum monitoring, on/off switch with integrated power oversight, adjustable handle, and a bracket for quick attachment of lifting or suction cups.
3,Empower a single operator to effortlessly move up to 1 tonne, exponentially boosting productivity by a factor of ten.
4,Customizable production in various sizes and capacities to match the dimensions of panels to be lifted.
5,Engineered with high-resistance materials, guaranteeing exceptional performance and longevity.
Parameters

Serial No.	BLA400-6-T	Max capacity	Horizontal handling 400kg
Overall Dimension	2160X960mmX910mm	Power input	AC220V
Control mode	Manual push and pull rod control absorption	Suction and discharge time	All less than 5 seconds; (Only the first absorption time is slightly longer, about 5-10 seconds)
Maximum pressure	85%vacuum degree(about0.85Kgf)	Alarm pressure	60%vacuum degree (about0.6Kgf)
Safety factor	S>2.0;Horizontal absorption	Dead weight of equipment	95kg(approximate)
Power failure Maintaining pressure	After power failure, the holding time of the vacuum system absorbing the plate is >15 minutes
Security alarm	When the pressure is lower than the set alarm pressure, the audible and visual alarm will alarm automatically

Features

Suction pad •Easy replace •Rotate pad head •Suit various working conditions •Protect workpiece surface	Power control box •Control the vacuum pump •Displays the vacuum •Pressure alarm
Vacuum gauge •Clear display •Color indicator •High-precision measurement •Provide security	Quality Raw Materials •excellent workmanship •long life •High quality

Specification

SWL/KG	Type	L×W×H mm	Own Weight kg
250	BLA250-4-T	2160×960×910	80
400	BLA400-6-T	2160×960×910	95
500	BLA500-6-T	2160×960×910	95
800	BLA800-8-T	3000×800×600	110
1500	BLA1500-12-T	3000×800×600	140
Powder:220/460V 50/60Hz 1/3Ph(we will provide the corresponding transformer according to the voltage in your country region.)
For optional DC OR AC Motor drive as your requirements

Detailed display

1	Supporting Feet	9	Vacuum Pump
2	Vacuum Hose	10	Beam
3	Power connecter	11	Main Beam
4	Power light	12	Remove Control Tray
5	Vacuum Gauge	13	Push-Pull Valve
6	Lifting ear	14	Shunt
7	Buzzer	15	Ball Valve
8	Power Switch	16	Suction Pads

Function
Integrated safety tank;
Customizable suction cup;
Ideal for environments with significant size variations
Features imported oil-free vacuum pump and valve
Prioritizes efficiency, safety, speed, and labor-saving
Pressure monitoring ensures enhanced safety
Manual closure for suction cup positioning
Application
Widely utilized in laser feeding operations.
Aluminum Boards
Steel Boards
Plastic Boards
Glass Boards
Stone Slabs
Laminated Chipboards
Industry Focus: Metal Processing Excellence

Unparalleled Service Cooperation
Since our inception in 2006, Shanghai Herolift Automation Technology Co., Ltd has proudly supported over 60 dynamic industries across more than 60 countries. With a legacy spanning over 18 years, we have cemented our reputation as a trusted leader, delivering exceptional solutions globally.
Company Profile

Our Advantages

Production Line

Certifications

Packaging & Shipping

FAQ
Q1: How can I get the best machine for me? A: You can tell us your working material, detail work by picture or vedio so that we can judge whether our machine can meet your need or not. Then we can give you the best model depends on our experience.
Q2: This is the first time I use this kind of machine, is it easy to operate?
A: We will have the free technical training, and send you Software Operating Instructions in English, it can teach you how to operate the machine. If you still can not learn how to use it, we can talk by phone, email or other contact ways.
Q3: If the machine has problem in my place, how could I do?
A: We could send free parts to you in warranty period if machines have any problem under "normal use". you need to pay the postage.
Q4: What's the guarantee, in case the machine breaks down?
A: The machine has one year guarantee. If it breaks down, generally speaking, our technician will figure out what the problem may be, according to clients feedback. Parts except for consumable parts will be replaced for free if the problems are caused by quality fault.
Q5: How long is the delivery time?
A: For standard machines, it would be 20-30 days; For non-standard machines and customizedmachines according to client s specific requirements, it would be 45 to 60 days.
