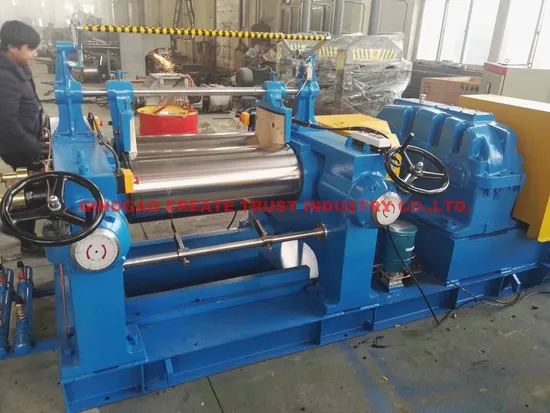

Competitive Two Roll Rubber Plastic Open Mixing Mill

Product Description

Name: Open mixing mill ,Rubber mixing mill, Rubber two roll mill, Rubber mill,Rubber twin roll mill,Rubber mixer
Model: XK660

FEATURES:

1. Tailored structure,easy to operate.

2.Frame and base,looking very nice,are welded and treated by annealing for stress reliveving.

3.Chilled alloy cast iron roll is abrasion resistant with long service life. Hardness can be 76 HS. Below is the photo of roll :
4.The speed reducer is the hard-tooth surface gear reducer of Class 6 precision,submersed close automatic lubrication,which has long service life and low noise.
5. The bush of machine is quality ball bearing bush,not plastic, so no need change this part during machine whole life use, also very strong .
Below is the photo for the reducer and bush:

6.Perfect emergency stop device can ensure the safety of personnel and equipment.

7.The seal structure with special design can eliminate the leaking phenomenon of lubricating oil.

8. Stock pan is easy to clean up with dislodging device.

9. Human nature designed operating system reducer labor intensity.

10. Modular structure offers various structures for customer's option.

The flexible design system can satisfy customers,special design requirements within the shortest time. A load test running will be made to the assembled equipment in our company to save degugging for customer.
Parameters below :

Model			XK-160	XK-250	XK-360	XK-400	XK-450	XK-550	XK-560	XK-660
Roll diameter		mm	160	250	360	400	450	550	560-510	660
Roll working length			320	620	900	1000	1200	1500	1530	2130
Front roll linear speed		m/min	9	16.3	16.7	19.3	21.8	22.5	27.2	28
Speed ratio of rolls			1:1.35	1:1.1	1:1.25	1:1.27	1:1.27	1:1.2	1:1.2	1:1.24
Max roll space		mm	4.5	8	10	10	12	16	15	0.5-15
Compound feeding capacity		kg	1-2	10-15	20-25	18-35	50	50-65	50-65	165
Motor power		kW	5.5	18.5	30	45	55	110	90	240
Dimensions	L	mm	1133	2722	4200	4920	5405	6646	6270	7280
	W	mm	920	1115	1780	1780	1740	2736	2282	3400
	H	mm	1394	1345	1760	1800	1790	2105	2000	2530
Gross weight		t	~2	~3.2	~6.5	~8	~11.4	~22	~22.5	~49

Service of us
The production of all products are follow ISO9001:2008 organization system, from raw material processing to assembe and finally test running. even the packing, and delivery. Also we track the use of machine,installation, products producing technical ect.
All we do is for longterm cooperation , " CREATE TURST" !
