CNC Crankshaft Grinding Machine for Antomobile Repairing From China
| US$29,800.00-45,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
MQ8260
Type
External Grinding Machine
Processing Object
Crank Shaft
Abrasives
Grinding Wheel
Controlling Mode
Artificial
Automatic Grade
Semiautomatic
Cylindrical Grinder Type
Universal Cylindrical Grinder
Precision
High Precision
Certification
ISO 9001
Condition
New
Max. Diameter of Workpiece
580mm
Max. Length of Workpiece
1600mm
Work Diameter with Center Frame
30-100mm
Max. Weight of Workpiece
120kg
Headstock Center Height
300mm
Headstock Work Speed
25,50,100rpm
Wheel Spindle Speed
760rpm
Wheel Size
900X32X305 mm
Overall Dimension
4000*2100*1630mm
Total Power
10.22kw
Transport Package
Ship/Train
Specification
6710kg
Trademark
SNALPO
Origin
China
HS Code
8460231100
Production Capacity
100pieces/Year
Product Description
Product DescriptionProduct features
Crankshaft Grinding Machine used in automobile, tractor, diesel engine works and their repair shops to grind the journals and crank pins crankshafts
1. The workpiece with the tip or chuck clamping, pretext, tailstock motor synchronous drive, manual grinding.
2. Table longitudinal movement with manual or motorized two kinds of rotation. Motor driven by a motor, for jumping profile or adjustment, only one speed.
3. According to user needs can be equipped with left and right cross chuck, maximum adjustable volume, the vertical direction is 110 mm, lateral 2.5 mm, the shift indexing simply rotate around the chuck.
4. Wheel, bench, cooling pump, oil pump driven by a separate motor.
5. Head, tail carriage motor are controlled by the inverter to achieve synchronous operation, reducing the deformation of the workpiece.
6. Wheel head rapid retreat is driven by hydraulic pressure.
7. Moving machine table using plastic guide posts with the international advanced technology, the performance is more stable and reliable.
8. The table and the wheel hydraulic, electrical interlocking structure, in terms of adjustment due to operator error or grinding ensures safe operation.
Product Parameters
Crankshaft Grinding Machine
main technical parameters
| Items | MQ8260 | |
| Capacity | Max. diameter of workpiece | Φ580mm |
| Max. length of workpiece | 1600mm | |
| Work diameter with center frame | Φ30-100 mm | |
| Max. work length ground in 3 jaw chuck | 1500 mm | |
| M ax. work length ground between center | 1600 mm | |
| Max. weight of workpiece | 120 kg | |
| Headstock | Center height | 300 mm |
| Work speed | 25,50,100rpm | |
| Wheel head | Max. cross movement | 200 mm |
| Wheel head rapid approach & withdrawal | 100 mm | |
| Wheel head feed per turn of cross feed handwheel | 1 mm | |
| Wheel feed per grad of cross feed handwheel | 0.005 mm | |
| Grinding wheel | Wheel spindle speed | 760 rpm |
| Wheel size | Φ900x32xΦ305 mm | |
| Workbench | The maximum amount of longitudinal movement of the table | 1600 mm |
| Table traverse per turn of handwheel fine | 1.68 mm | |
| Table swivel (taper 18/100) | 5° | |
| Table swivel per grad of scale (taper 1:50) | 10' | |
| Overall capacity of motor | 10.22 kw | |
| Overall capacity of grinding wheel motor | 7.5 kw | |
| Overall dimension (LxWxH) (mm) | 4000×2100×1630 | |
| Weight | 6710 kg | |

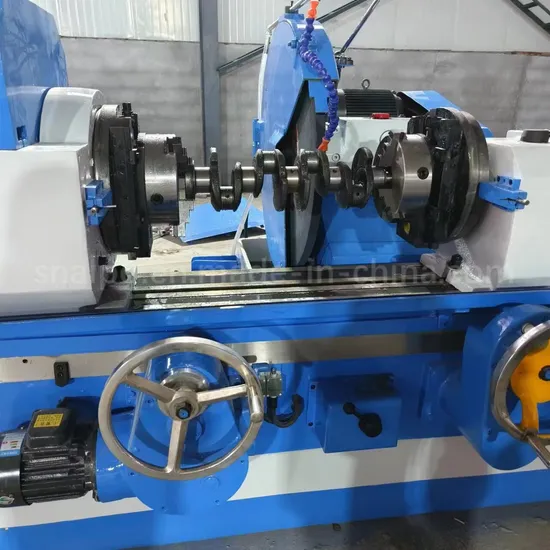

Detailed Photos
