Lxshow CNC Optical Fiber Laser Cutting Machine for Sheet Metal Pipe Tube Steel Stainless Carbon

Product Description

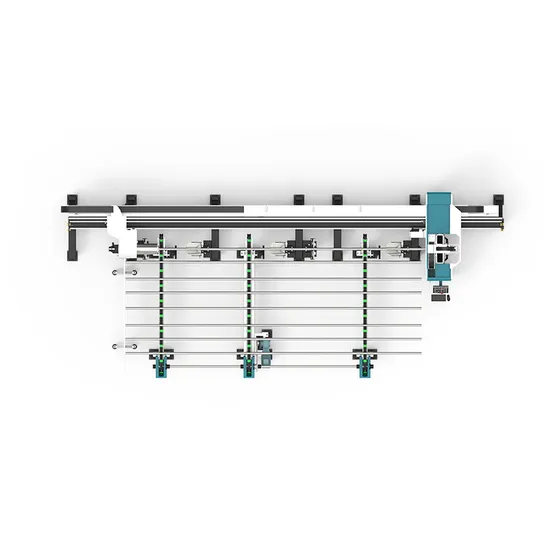

LX62TNA Full Automatic Feeding Fiber Laser Tube Cutting Machine

Super large format automatic feeding
Simple but tightened integrated large-scale material table
Pipes of different lengths can be waiting in the area to be cut, greatly reducing the time required for single feeding.
Automatic feeding of transmission belt
The conveyor is equipped with a test device that identifies when the previous tube cutting is complete and automatically transfers the next tube to be cut.

Model	LX62TNA
Max.outside diameter of round tubes(mm)	10-42mm
Pipe thickness	Depends on the power
Cutting speed	2500-3500 Pcs/H
Machine repeat positioning accuracy	±0.05mm/1000mm
Machine positioning accuracy	±0.1mm
Electricity demand	380V/220V
Cutting accuracy	±0.1mm
Power	1000w/1500w/2000w/3000w(optional)
Accuracy	±0.1mm
Tube type cutting	Round Tube

* About Jinan Lingxiu Laser Equipment Co., Ltd.is established in July 2004, owns more than 500 square meters of researching and office
space, more than 32000 square meters factory.All machines , passed the European Union CE authentication, American certificate and
are certified to ISO 9001. Products are sold to USA,Canada, Australia, Europe, South east Asia,Africa etc,more than 150 countries
and areas,and supply OEM service for more than 30 manufactures.
Q: Do you have CE document and other documents for customs clearance?
A: Yes, we have CE, Provide you with a one-stop service. At first we will show you and and after shipment we will give you CE/Packing list/Commercial Invoice/ Sales contract for customs clearance.

Q: If we are interested in your machine, how do we choose?
1. What main job you do with the machine?
2. What is your request? diameter, __mm* length, __mm?
3. What material you want to cut,stainless steel,carbon steel?

Q: How about warranty?
A: 3 years quality guaranty, the machine with main parts(excluding the consumables) shall be
changed free of charge(some parts will be maintained) when if any problem during the warranty period.

Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available across the world, We need your machines running in order to keep your business running.

Q: Do you have any other machine style?
A: Yes, please check the following machine style, if you have any questions, you can contact us any time, 24x7, we always here.
