T32 Inclined Bed Turning Cutting Drilling Milling Metal CNC Lathe Machine
| US$6,400.00-7,000.00 | 1 Piece (MOQ) |
Basic Info.
Model NO.
T32
Application
Metal
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Point to Point Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Condition
New
CNC System
GSK
Optional CNC System
Fanuc, Mitsubishi M80, Siemens, Knd, Nanjing Kt
Standard Chuck
Hydraulic Chuck
Net Weight
1600kg
Transport Package
Seaworthy Packing
Specification
1900*1500*1680mm
Trademark
JT
Origin
China
HS Code
84589100
Production Capacity
1500sets/Year
Product Description

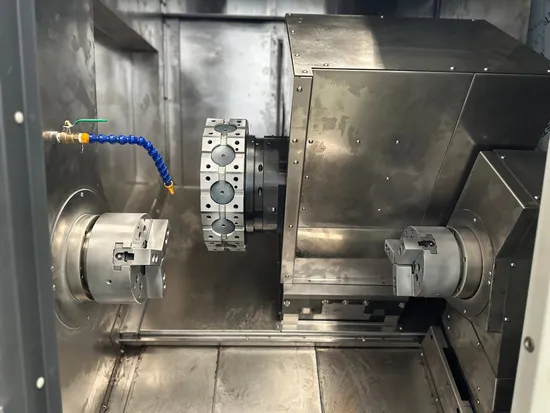

Product ParametersThe T32 slant-bed CNC lathe features a one-piece cast bed and slant guide rails for excellent rigidity and vibration absorption,ensuring high-precision cutting.It uses an AC servo motor with a V-belt direct drive spindle for low noise.The spindle has precision high-speed bearings and a box-type support for high-speed operation.Equipped with a multi-position or powered turret, it can machine complex parts like cylinders,threads,slots,and worms,offering linear and arc interpolation for mass production.An optional high-rigidity hydraulic servo turret provides greater reliability and repeatability.
| ITEM | UNIT | T32 | |
| General Rules | CNC system | GSK | |
| physical dimension | mm | 1900*1500*1680 | |
| Total weight of machine tool | kg | 1600 | |
| Bed type | 30° inclined bed | ||
| The scope of work | Maximum rotation diameter on the bed | mm | φ360 |
| Maximum rotation diameter on the pallet | mm | φ120 | |
| X-axis maximum travel | mm | 680 | |
| Z axis maximum travel | mm | 400 | |
| Spindle | Spindle | Mechanical spindle | |
| Spindle speed | rpm | 50-3000 | |
| Spindle end | A2-5 | ||
| Spindle through hole diameter | mm | φ48 | |
| Working accuracy | Servo main motor power | kw | 4 |
| X-axis servo motor | Nm | 4 | |
| Z-axis servo motor | Nm | ||
| X-axis guide rail type | Linear Guides | ||
| Z-axis guide rail type | Linear Guides | ||
| X-axis fast forward speed | m/min | 18 | |
| Z-axis fast forward speed | m/min | 20 | |
| Tool holder | Tool holder form | Row knife | |
| Number of tool positions | 4 | ||
| Knife square size | mm | 20*20 | |
| other | Clamping method | Hydraulic clamping | |
| Cylinder Specifications | Hydraulic hollow 536 | ||
| Hydraulic station | Shengquan high performance hydraulic station | ||
