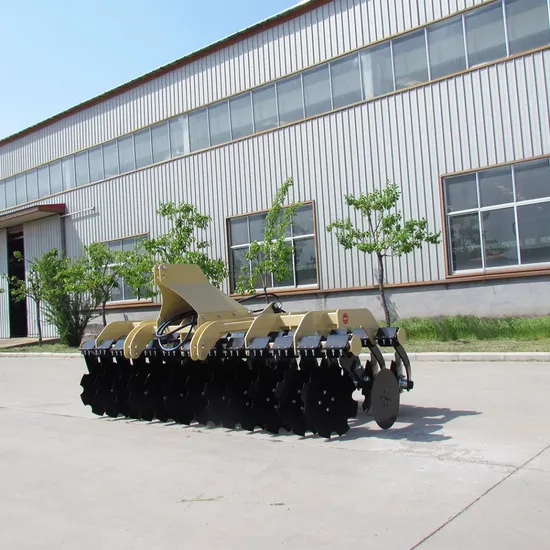

2024 Phantom Hunter Disc Harrow
| US$60.00 | 2 Pieces (MOQ) |
Basic Info.
Model NO.
1-LZX
Application Field
Agriculture, Farming Work
Farming Policy
Dry Cultivating Machinery
Power Source
Tractor
Operation
Soil Preparation Machinery, Continuous Running Operation
Traction Type
Traction
Drive Type
Tractor Pulled
Arbor Configuration
Vertical Shaft
Certification
Provide
Color
According to Customer Demand
Warranty
1 Year
Mounting Structure
Three-Point Hitch
Transport Package
Standard Export Pakcaging
Specification
According to customer demand
Trademark
SDYT
Origin
Shan Dong China
HS Code
84321000
Production Capacity
600/Year
Product Description
Product Description2024 New Horizon Disc Harrow Mastercan replace the plough on the mature land to carry out the soil ploughing operation.
Contact: Tommy
+86 17852245718
| Technical specifications | Unit of measurement | Model | |||||
| 1LZX-3.0G | 1LZX-3.5G | 1LZX-4.0G | 1LZX-3.0H | 1LZX-3.5H | 1LZX-4.0H | ||
| Working width | mm | 3000 | 3500 | 4000 | 3000 | 3500 | 4000 |
| Length of the roller | mm | 2900 | 3400 | 3900 | 2900 | 3400 | 3900 |
| Diameter roller | mm | 450 | 450 | 450 | 450 | 450 | 450 |
| Type roller | TAVALUG PACKER | TAVALUG COARDA | |||||
| Number batteries discs | pcs | 2 | 2 | 2 | 2 | 2 | 2 |
| Number of discs | pcs | 24 | 28 | 32 | 24 | 28 | 32 |
| Distance between discs | mm | 240 | 240 | 240 | 240 | 240 | 240 |
| Diameter discs | mm | 560 | 560 | ||||
| Working depth | mm | 180 | 180 | 180 | 180 | 180 | 180 |
| Working speed | km/h | 7--12 | 7--12 | 7--12 | 7--12 | 7--12 | 7--12 |
| Transport clearance | mm | Min 300 | Min 300 | Min 300 | Min 300 | Min 300 | Min 300 |
| Transport speed | km/h | 15 | 15 | 15 | 15 | 15 | 15 |
| Productivity | ha/h | 2.1-3.3 | 2.5-3.9 | 2.8-4.4 | 2.1-3.3 | 2.5-3.9 | 2.8-4.4 |
| Required tractor power | hp | 100-130 | 110-130 | 120-150 | 100-130 | 110-130 | 120-150 |
| Length | mm | 1500 | 1700 | 1700 | 1500 | 1700 | 1700 |
| Width | mm | 3000 | 3500 | 4000 | 3000 | 3500 | 4000 |
| Height | mm | 1500 | 1500 | 1500 | 1500 | 1500 | 1500 |
| Weight | kg | 1620 | 1950 | 2150 | 1400 | 1750 | 1950 |
