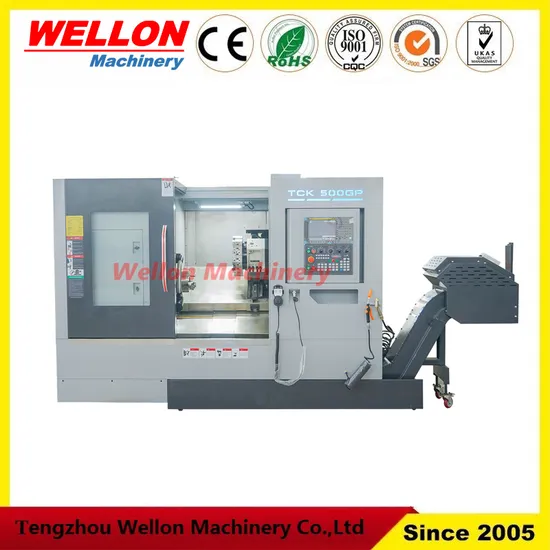

Tck500gp Slant Bed CNC Lathe Machine Tck500gp
Basic Info.
Model NO.
TCK500GP
Application
Metal
Process Usage
Metal-Cutting CNC Machine Tools, CNC Non-Conventional Machine Tools, Metal-Forming CNC Machine Tools
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
High-End CNC Machine Tools
Certification
GS, CE, ISO 9001
Condition
New
Max.Swing Over Bed
570
Max.Swing Over Cross Slide
280
Max Turning Diameter
500
Max.Turning Length
520
Spindle Bore (mm)
66
X Axis Limit Travel (
270
Z Axis Limit Travel (
610
Transport Package
Wooden
Specification
CE ISO900 rohs
Trademark
WELLON
Origin
Tengzhou China
Product Description
Detailed PhotosFeature :
The machine is suitable to process all kinds of small and middle-sized shaft and plate work piece, and could also turn various threads, circle arc, circular arc ,circular cone,inside and outside surface of revolved body.
This machine is widely used in sanitary,valve ,electricall appliance,instrument,automobile,motorcycle, bearings and so on.
Higher accuracy Taiwan Linear guideways.
High speed spindle unit.
Higher rigidity cast iron.
Integrated automatic lubrication
30 degree One-piece casting slant bed Product Parameters
| Item | Unit | TCK500GP |
| Max.swing over bed | mm | 570 |
| Max.swing over cross slide | mm | 280 |
| Max turning diameter | mm | 500 |
| Max.turning length | mm | 520 |
| Spindle nose | mm | A2-6 |
| Chuck size | 8" | |
| Spindle motor power | kw | 11/15 |
| Max.spindle speed | rpm | 3500 |
| Spindle bore | mm | 66 |
| Max Bar diameter through hole | mm | 52 |
| X axis limit Travel | mm | 270 |
| Z axis limit Travel | mm | 610 |
| X/Z axis motor torque | N/m | 10/10 |
| Sland bed angle | 30° | |
| Height of turret center | mm | 100 |
| X/Z axis leadscrew | mm | 32/40 |
| X/Z axis linear guideway | mm | 45/45 |
| X/Z axis positioning accuracy | mm | 0.008 |
| X/Z axis repeat accuracy | mm | 0.005 |
| Tailstock quill diameter | mm | 75 |
| Tailstock quill travel | mm | 120 |
| Tailstock quill taper | MT5 | |
| Tailstock travel | mm | 500 |
| Machine dimension (mm) | mm | 2850x1700x1750 |
| Weight | kg | 3800 |
