800mm*1000mm High Speed CNC Wire Cut EDM Wedm-Ysdk7780
Basic Info.
Model NO.
WEDM-YSDK7780
Process Usage
Metal-Cutting CNC Machine Tools, Metal-Forming CNC Machine Tools, CNC Wire-Cut
Movement Method
Linear Control
Control Method
Closed-Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.01~0.02(mm)
Performance Classification
Economical CNC Machine Tools
Certification
GS, CE, RoHS, ISO 9001, SGS
Condition
New
Delivery Method
by Sea
Delivery Time
About 25-30 Days
Quality Warranty
3r
Payment Method
by T/T in Advance
Down Payment
50% of Total Amount
Transport Package
Wood Case
Specification
WEDM-YSDK7780: 800*1000MM
Trademark
SuperImage
Origin
China
HS Code
84619090
Production Capacity
1000sets/Month
Product Description

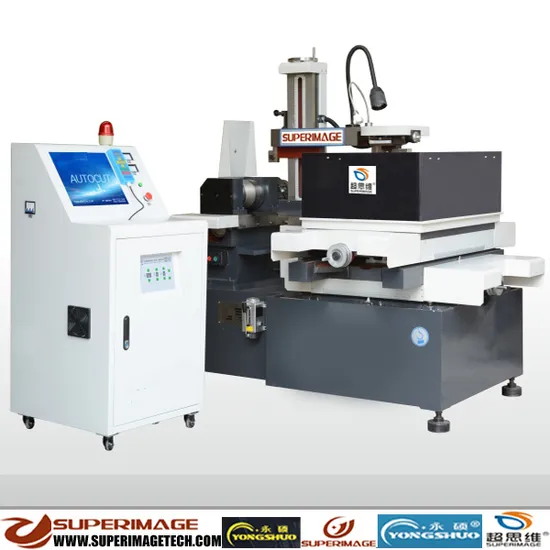

1. Products Name:800mm*1000mm CNC Wire Electrical Discharge Machine
CNC Wire-Cut Machine EDM
High Speed CNC Wire Cut EDM
High Speed CNC EDM Wire Cut Machine
CNC WIRE CUT EDM
4-Axis CNC WEDM
4 AXIS CNC EDM WIRE CUT
800mm*1000mm CNC WEDM
WORK TABLE 900*1260MM CNC WEDM
WIRE-CUT EDM WITH WORK TABLE 900*1260MM
800mm*1000mm ADVANCED MIDDLE-SPEED CNC WIRE CUTTING MACHINE
2. Basic Technical Data:
| TECHNICAL DATA | WEDM-YSDK7780 |
| CONTROL SYSTEM & AXIS QTY. | AUTOCUT, 4 AXIS |
| XY AXIS TRAVELING DISTANCE | 800*1000MM |
| WORKTABLE SIZE | 900*1260MM |
| MAX.LOADING WEIGHT OF WORKTABLE | 1500KG |
| MOTOR DRIVING MODE | STEPPING MOTOR DRIVE |
| MACHINING SURFACE ROUGHNESS | Ra≤2.5UM |
| MACHINING PRECISION | 0.015UM |
| MAX. CUTTING THICKNESS | 800MM |
| MAX.CUTTING SLOPE/WORKPIECE THICKNESS | +30/100 |
| MAX.CUTTING SPEED | ≥12000MM2/HOUR |
| STABLE MACHINING SPEED | 10000MM2/HOUR(2-3 TIMES THAN THAT OF ORDINARY) |
| SCREWS RUNNING SPEED | 12MM |
| DIAMETER OF ELECTRODE WIRE | Φ0.1-0.25MM |
| MACHINE RUNNGING POWER | 1.5KW |
| MAX.MACHINING CURRENT | 8A |
| MACHINE SIZE | 3000MM*2450MM*1967MM |
| MACHINE WEIGHT | 4500KG |
| HARDWARE CONFIGURATION & INTERFACE | SCHNEIDER ELECTRIC,USB,LAN/RS232 |
| OPERATION PANEL & LANGUAGE | ENGLISH,JAPAN,RUSSIA,ETC |
3. Payment methods
By T/T in advance;
Down payment: 50% of total amount. Before delivery, 50% balance need to be paid.
4. Delivery time:
By Sea
Delivery time: about 25-30 days.
5. Quality Warranty:
SuperImage offers "3R" quality warranty for our CNC Mach-"Replacement, Return, and Refund" will be guaranteed for inferior quality products.
