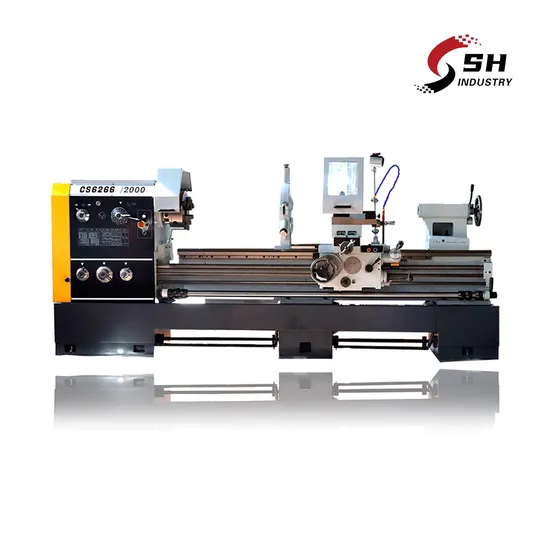

CS6266 Manual Metal Gap Bed High Precision Lathe for Sale

Product Description

Product Description
CS6266 Manual Metal Gap Bed High Precision Lathe for Sale
We are the most professional in making gap bed lathe Product Parameters

SPECIFICATIONS	Model	CS6250
	Max Swing Over bed	500mm(20")
	Max swing over carriage	300mm(12")
	Max .Swing in gap	710mm(28")
	Max. length of work piece	1000/1500/2000/3000/4000
	Effective gap length	230mm
	Bed width	405mm
	Spindle bore	105mm D8/D11
	Spindle taper of bore	113(1;20)
	Spindle range of speed	36-1600 mm
	Spindle number of speeds	12 steps
	Threads Metric Pitches	1-14mm /22
	Threads imperial pitches	28-2 TPI/25
	Threads Diameter Pitches	56-4Dp/24
	Threads module pitches	0.5-7mm/18
	Range of feeds longitudinal	0.063-2.52mm(0.023"-0.0937")
	Range of feeds cross	0.027-1.07mm(0.011"-0.0404")
	External diameter of the Tailstock quill	75mm
	Max Traverse of tailstock quill	150
	Quill Taper	NO5.(Morse)
	Max travel of compound rest	150
	Max. cross slide travel	260mm
	Max. size of tool shank(WXH)	25X25mm
	Power the main motor	7.5KW
	Packing size(LXWXH)	2800/3300/3700/4700/5700X1150X2200mm
	Net weight	2300/2650/2900/3750kgs

This series of lathes is suitable for turning internal and external cylindrical surface, conical surface and other rotating surface, turning a variety of metric, imperial, modular and diameter pitch threads, and can be carried out
Drilling and pulling oil tanks and other work.
The bed is wider than the general lathe, with high stiffness, guideway surface by high-frequency quenching, durable wear.
The machine operation is convenient and centralized, and the slide plate is equipped with a fast moving mechanism. Using a single handle visualization operation, good amenity.
The structural stiffness and transmission stiffness of the machine tool are higher than that of the general lathe, and the power utilization rate is high, which is suitable for strong cutting.
Features :
360mm Rail width
Thread processing need to change gears
Tool size is 20x20mm
Gears is steel of precision grinding and hardened
Standard Accessories
Hook wrench
Inner hexagon spanner
Single-ended wrench
Socket wrench
3-jaw chuck
Dead center
Center sleeve
Triangular belt
Adjustment pad iron
Foundation bolts
Change gears
Optional Accessories
Steady Rest,Follow rest
DRO
Chuck cover ,Tool post cover ,Lead screw cover
Foot brake
Fast moving
Live center
4 jaw chuck
Drill chuck and holder
Face plate
Quick change tool post
Taper turning attachment Realistic photos

Detailed Photos
Our Advantages
why not consult us once instead of searching ten times
Certifications
FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
We want to know:
1.What's your Industrial Voltage?
2.We strongly suggest you to tell us size, material of your workpiece for our evaluation, if possible, better to send us workpiece drawing, so that we can recommend you most suitable model!
3.If need CIF Price, please kindly tell us the port of destination.
